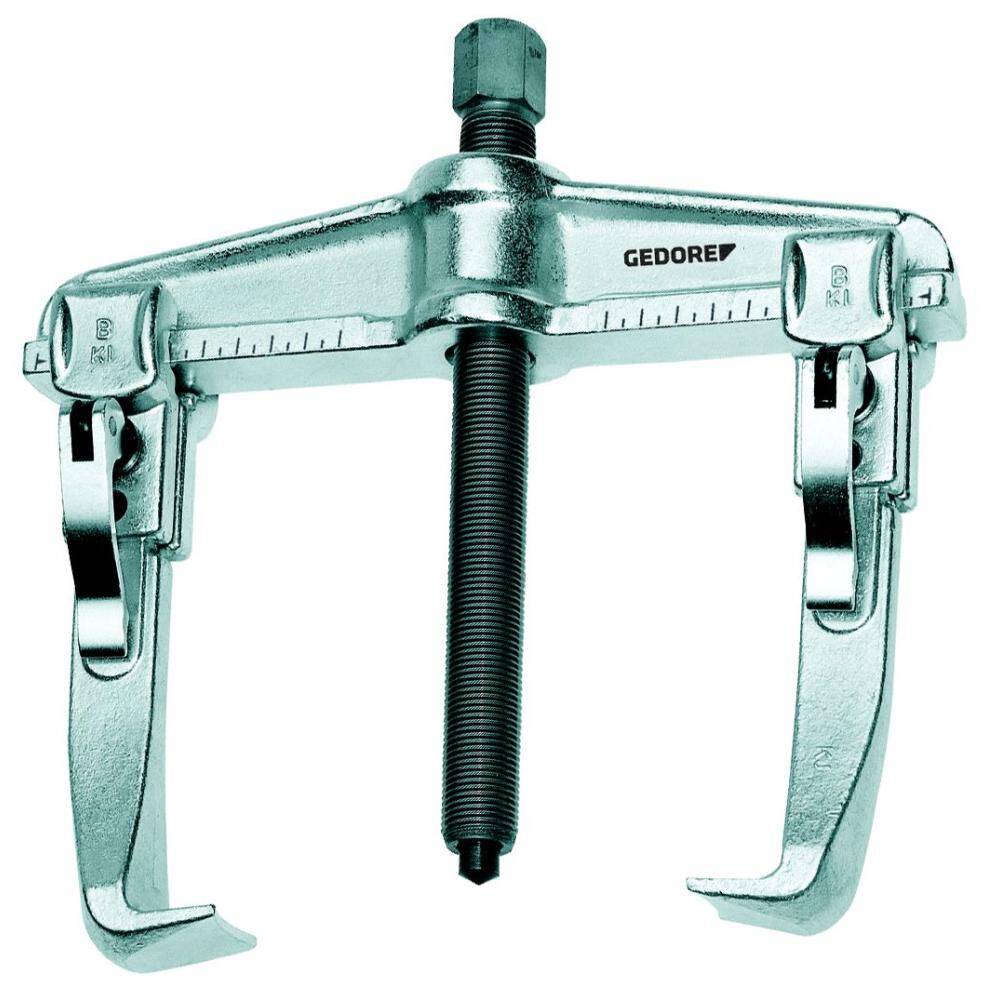

Gedore 1213830 (Series 1.06/1-E) Quick-release puller, 2-arm pattern 90×100 mm

£91.94 inc VAT

  • Width Across Flat / Actuating Hexagon:- 17 mm
  • Clamping Spread – max – External Pulling (a, a1):- 90 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 60 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 140 mm
  • Spindle Size (Thread x Length):- M 14×1,5 x 140
  • Width of Hooked Foot :- 22 mm
  • Depth of Hooked Foot (d):- 12 mm
  • Thickness of Hooked Foot at tip:- 3,0mm
  • Loading Max T:- 3,0 t
  • Scale Divisions:- x
  • Packing Unit:- 1 Piece
  • Weight:- 1.1 kg
  • Clamping Reach:- 100 mm

Usually available from UK stock

SKU: HYDBA1213830 Categories: ,

Description

The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc. Strong drop forged pattern. Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required. By reversing the legs, this tool can be used as an internal or external puller. Exchangeable legs for several clamping reaches available as accessories. Quick release legs for fast, easy set-up and adjustment. Upgradeable with hydraulic spindle (see table).

  • Width Across Flat / Actuating Hexagon:- 17 mm
  • Clamping Spread – max – External Pulling (a, a1):- 90 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 60 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 140 mm
  • Spindle Size (Thread x Length):- M 14×1,5 x 140
  • Width of Hooked Foot :- 22 mm
  • Depth of Hooked Foot (d):- 12 mm
  • Thickness of Hooked Foot at tip:- 3,0mm
  • Loading Max T:- 3,0 t
  • Scale Divisions:- x
  • Packing Unit:- 1 Piece
  • Weight:- 1.1 kg
  • Clamping Reach:- 100 mm

Additional information

Weight 1.1 kg
Weight

EAN

Product Condition

Brand

Gedore

MPN
