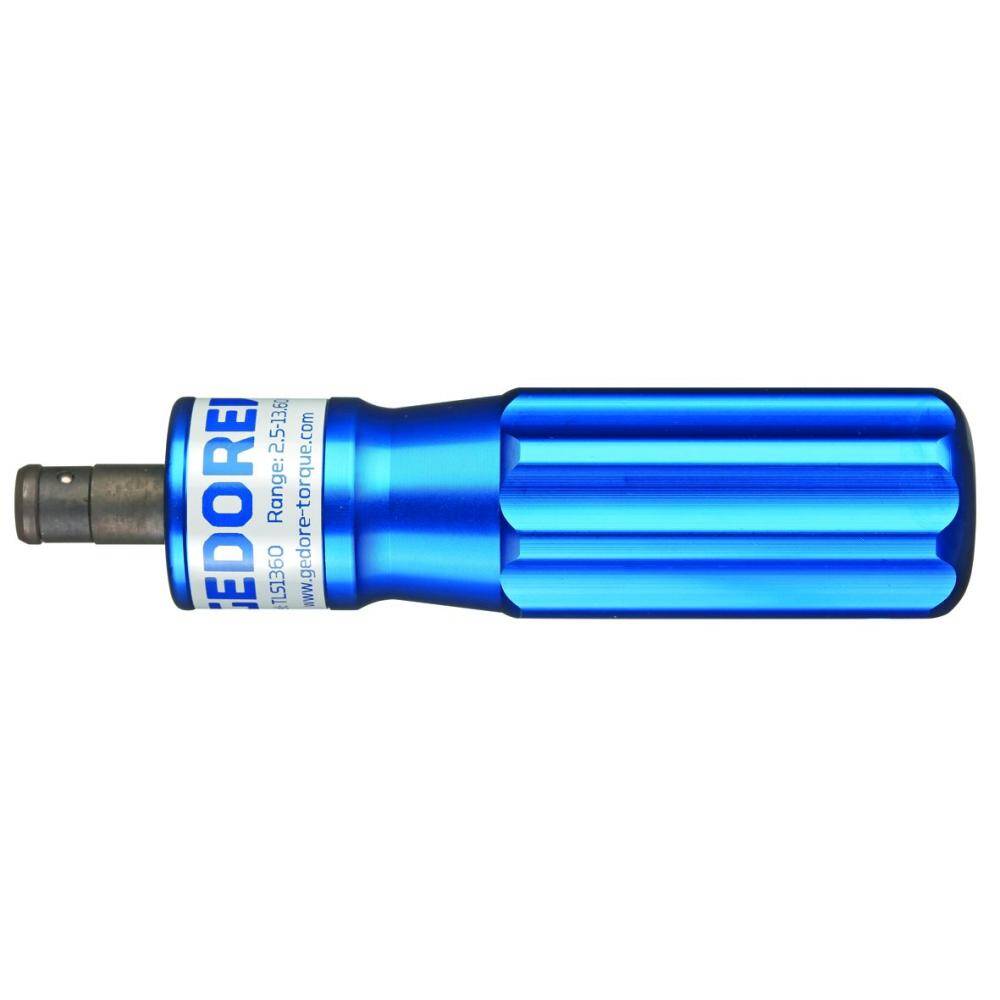

Gedore 1471465 (Series 755-03) Torque screwdriver FS 1/4″ 27-135 cNm

Description

Controlled screw tightening in the range 0.04 – 13.6 N·m. Serial manufacture with constant tightening value. Electronic industry, precision mechanics and industrial manufacturing Features:. Pre-set torque screwdriver without a scale. With 1/4″ female hexagon drive for use with 1/4″ hexagon bits as per DIN 3126 – C 6.3. With adaptor also suitable for 1/4″ square drive sockets as per DIN 3124. Working accuracy: /- 6 % tolerance of the set torque. Acc. to DIN EN ISO 6789, traceable to national standards. Precision radial ball clutch and cam design for controlled bi-directional tightening. Precision mechanism slips very noticeably through when the set torque is reached. Automatic resetting to the starting position. Lightweight construction by virtue of anodised aluminium handgrips. The pre-setting can be made at the factory or by the user on suitable torque testers. If ordering, please specify the N·m value – if a fixed factory setting is desired (price on request) Scope of delivery:. Torque screwdriver type 755. 1/4″ square/hexagon drive adaptor (no. 757-20). Model 755-05 with additional removable T-bar for ease of use. Test certificate acc. to DIN EN ISO 6789. Delivered in sturdy cardboard packaging.

• Length (L, L1):- 111 mm
• Drive Connector Square (Male):- 1/4 inch
• Range of Work / Measurement Nm (min/max):- 0,27-1,35 N·m
• Packing Unit:- 1 Piece
• Weight:- 0.21 kg
• Range of Work / Measurement cNM (min/max):- 27-135 cN·m
• Drive Connector Hexagon (Female):- 1/4 inch
• Drive Connector Square (Male) Nominal Size:- 6,3 mm
• Drive Connector Hexagon (Female) Nominal Size:- 6,3 mm
