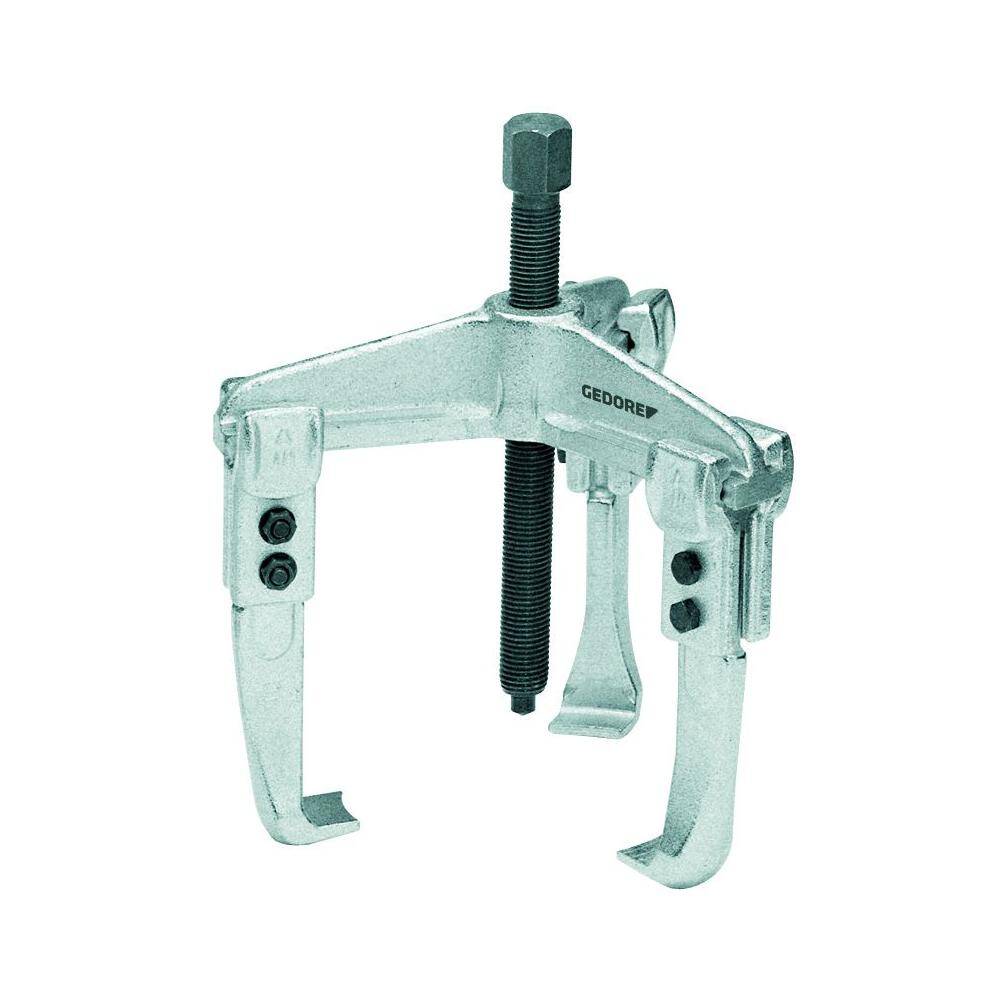

Gedore 1541757 (Series 1.07/3) Universal puller, 3-arm pattern 250×200 mm

Description

Even load distribution over 3 legs ensures secure grip and balanced pull. By reversing the legs, this tool can be used as an internal or external puller. Extra or replacement legs increase versatility. Upgradeable with hydraulic spindle (see table).

• Width Across Flat / Actuating Hexagon:- 27 mm
• Clamping Spread – max – External Pulling (a, a1):- 250 mm
• Clamping Spread – Min – Internal Pulling (a2):- 100 mm
• Clamping Spread – Max – Internal Pulling (a2):- 400 mm
• Spindle Size (Thread x Length):- G 3/4 x 280
• Width of Hooked Foot :- 36 mm
• Depth of Hooked Foot (d):- 28 mm
• Thickness of Hooked Foot at tip:- 6,5mm
• Loading Max T:- 7,5 t
• Packing Unit:- 1 Piece
• Weight:- 9.3 kg
• Hyraulic Spindle Optional:- 1.06/HSP2
• Clamping Reach:- 200 mm
