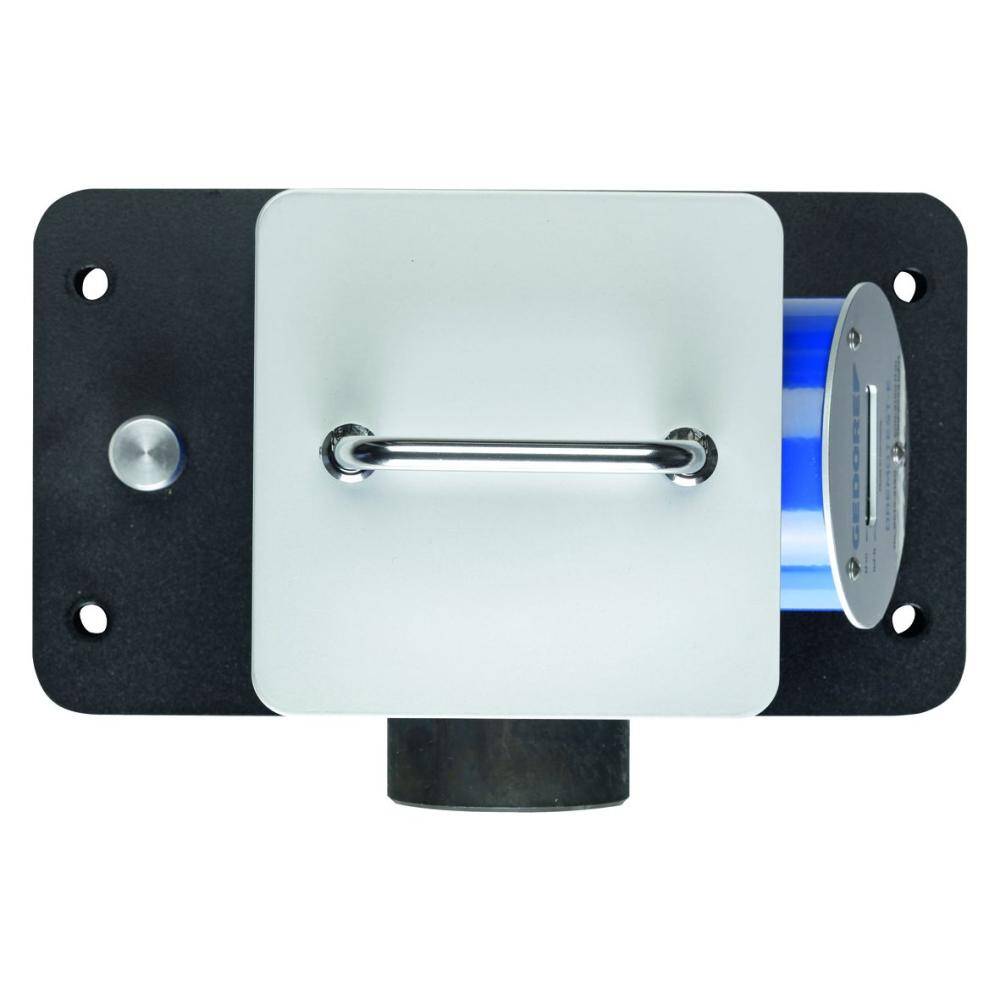

Gedore 1947702 (Series 8612-1000) Electronic torque tester DREMOTEST E 90-1100 Nm

Description

For verifying and setting clockwise torque wrenches and torque screwdrivers. Simple, electronic torque tester with integrated torque transducer (DMS). 5 models in the range from 0.2 to 3150 N·m. With fixed hexagon female drive 1/4″, 10, 17, 36, 46 mm or 1.1/2″ square drive adaptor (model dependent). With 1/4″, 3/8″, 1/2″, 3/4″, 1″ square drive adaptor or bit adaptor (model dependent). High measurement accuracy: /- 1 % tolerance of reading, /- 1 digit. Break-Point-measurement (1st peak). Autoreset. Can be switched from N·m to lbf·ft. Serial interface RS232. Optionally available: adaptor for cigarette lighter socket (12 V), no. 8612-390 Scope of delivery:. Electronic torque tester. RS232 cable. Power supply unit. 100 – 240 V, 50 – 60 Hz, max. 500 mA (see type plate). 2 sockets (size and drive model-dependent). Adaptor for 8612-3150. Operating instructions. Packaging.

• Range of Work / Measurement Nm (min/max):- 90-1100 N·m
• Range of Work / Measurement lbf.ft (Min/Max):- 66-811 lbf·ft
• Packing Unit:- 1 Piece
• Weight:- 10 kg
• Drive Connector Hexagon (Female) Nominal Size:- 36,0 mm
• Resolution:- 1 N·m
