Gedore 1981145 (Series 1.04/HP1A-B) Universal puller HIGH POWER 2-arm pattern, rigid legs with leg brake 130×100 mm

Description

Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability. Strong drop forged pattern. Rigid legs forged from one piece. Leg brake – prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button. By reversing the legs, this tool can be used as an internal or external puller. Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required. Upgradeable with hydraulic spindle (see table).

• Width Across Flat / Actuating Hexagon:- 17 mm
• Clamping Spread – max – External Pulling (a, a1):- 130 mm
• Clamping Spread – Min – Internal Pulling (a2):- 70 mm
• Clamping Spread – Max – Internal Pulling (a2):- 170 mm

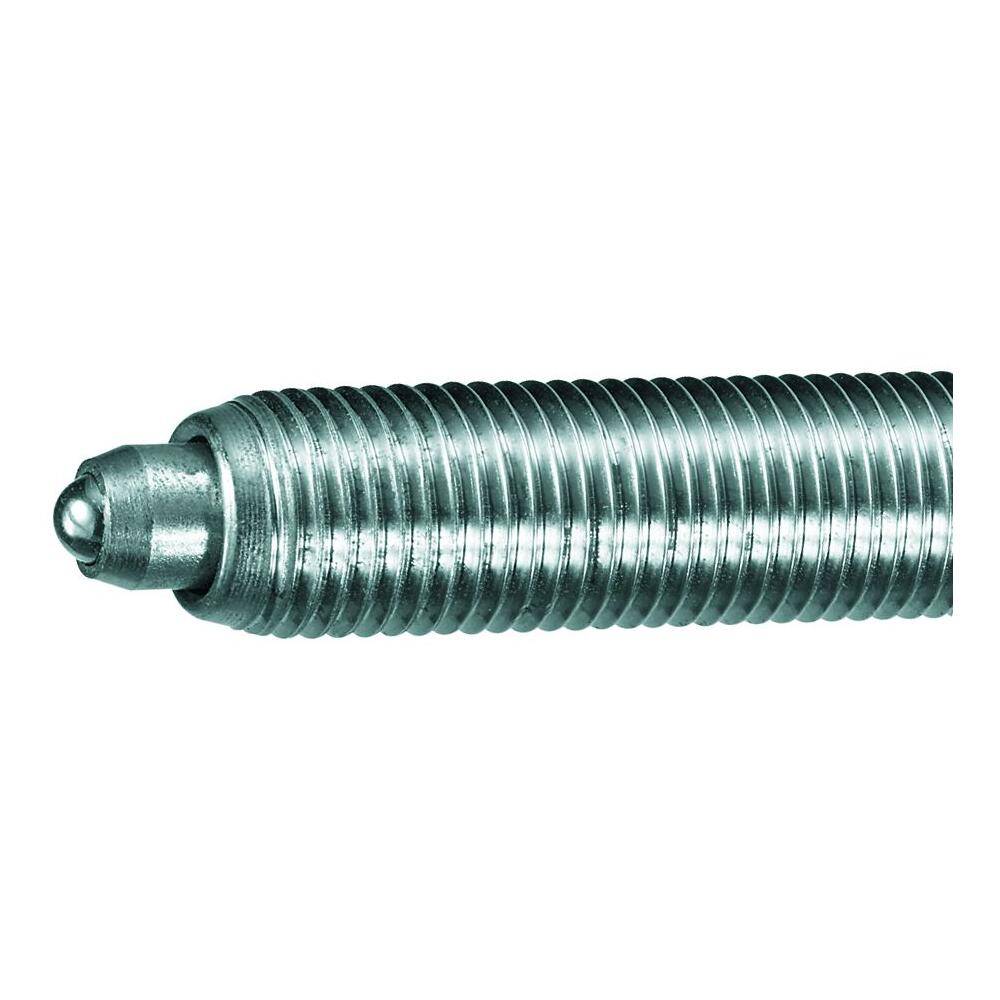

• Spindle Size (Thread x Length):- M 14×1,5 x 140
• Width of Hooked Foot :- 22 mm
• Depth of Hooked Foot (d):- 15 mm
• Thickness of Hooked Foot at tip:- 3,0mm
• Loading Max T:- 5,0 t
• Scale Divisions:- x
• Packing Unit:- 1 Piece
• Weight:- 1.2 kg
• Clamping Reach:- 100 mm
