Gedore 1981161 (Series 1.04/HP3A-B) Universal puller HIGH POWER 2-arm pattern, rigid legs with leg brake 350×200 mm

Description

Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability. Strong drop forged pattern. Rigid legs forged from one piece. Leg brake – prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button. By reversing the legs, this tool can be used as an internal or external puller. Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required. Upgradeable with hydraulic spindle (see table).

• Width Across Flat / Actuating Hexagon:- 27 mm
• Clamping Spread – max – External Pulling (a, a1):- 350 mm
• Clamping Spread – Min – Internal Pulling (a2):- 150 mm
• Clamping Spread – Max – Internal Pulling (a2):- 420 mm

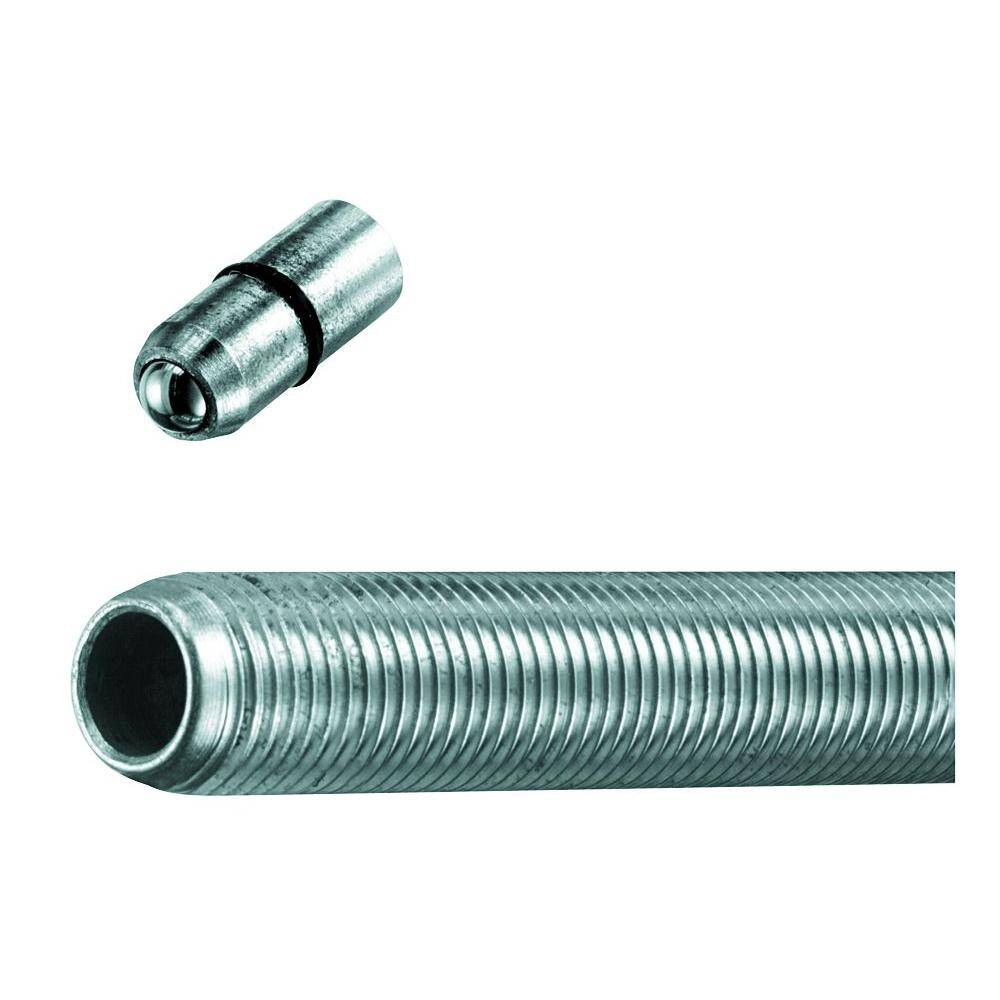

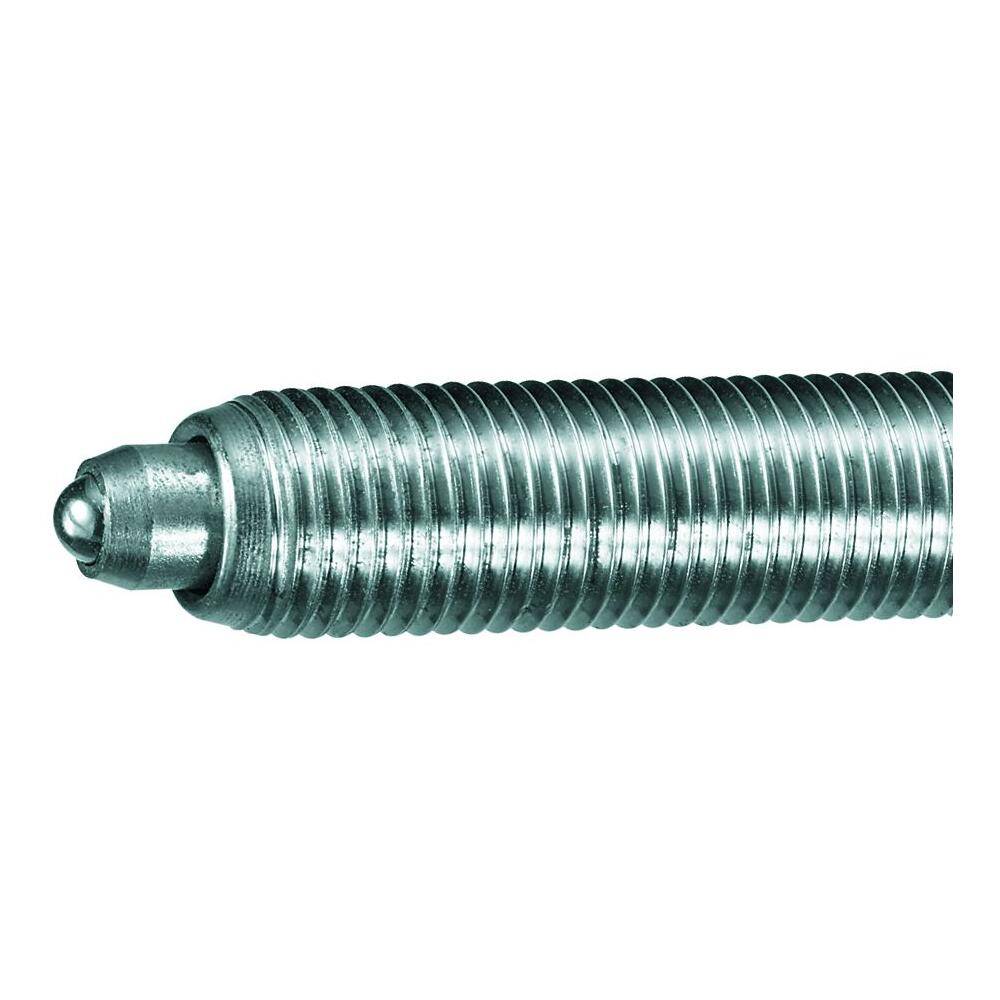

• Spindle Size (Thread x Length):- G 3/4 x 280
• Width of Hooked Foot :- 36 mm
• Depth of Hooked Foot (d):- 32 mm
• Thickness of Hooked Foot at tip:- 5,0mm
• Loading Max T:- 15,0 t
• Scale Divisions:- x
• Packing Unit:- 1 Piece
• Loading Max Nm:- 14 N·m
• Weight:- 7.7 kg
• Hyraulic Spindle Optional:- 1.06/HSP2
• Clamping Reach:- 200 mm
