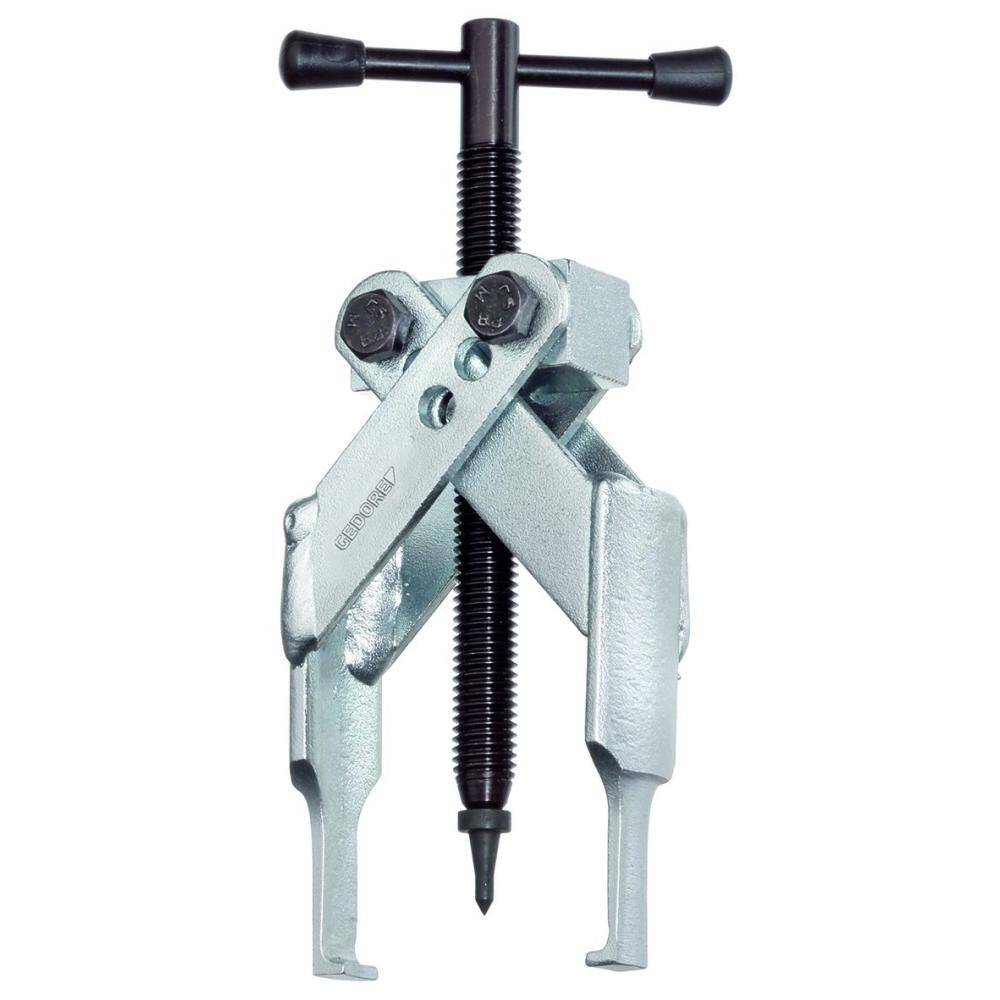

Gedore 2018578 (Series 1.23/1XS) Puller 2-arm pattern XS legs 80×85 mm

Description

Very slim forged legs. Ideal for use in hard-to-reach places, e.g. work on electric motors. The legs grip automatically.

• Clamping Spread – max – External Pulling (a, a1):- 80 mm
• Spindle Size (Thread x Length):- M 10×1,5 x 100
• Width of Hooked Foot :- 9 mm
• Depth of Hooked Foot (d):- 3,5 mm
• Thickness of Hooked Foot at tip:- 2mm
• Loading Max T:- 0,7 t
• Packing Unit:- 1 Piece
• Weight:- 0.33 kg
• Clamping Reach:- 85 mm
• Tip Diameter2:- 2,9 mm
