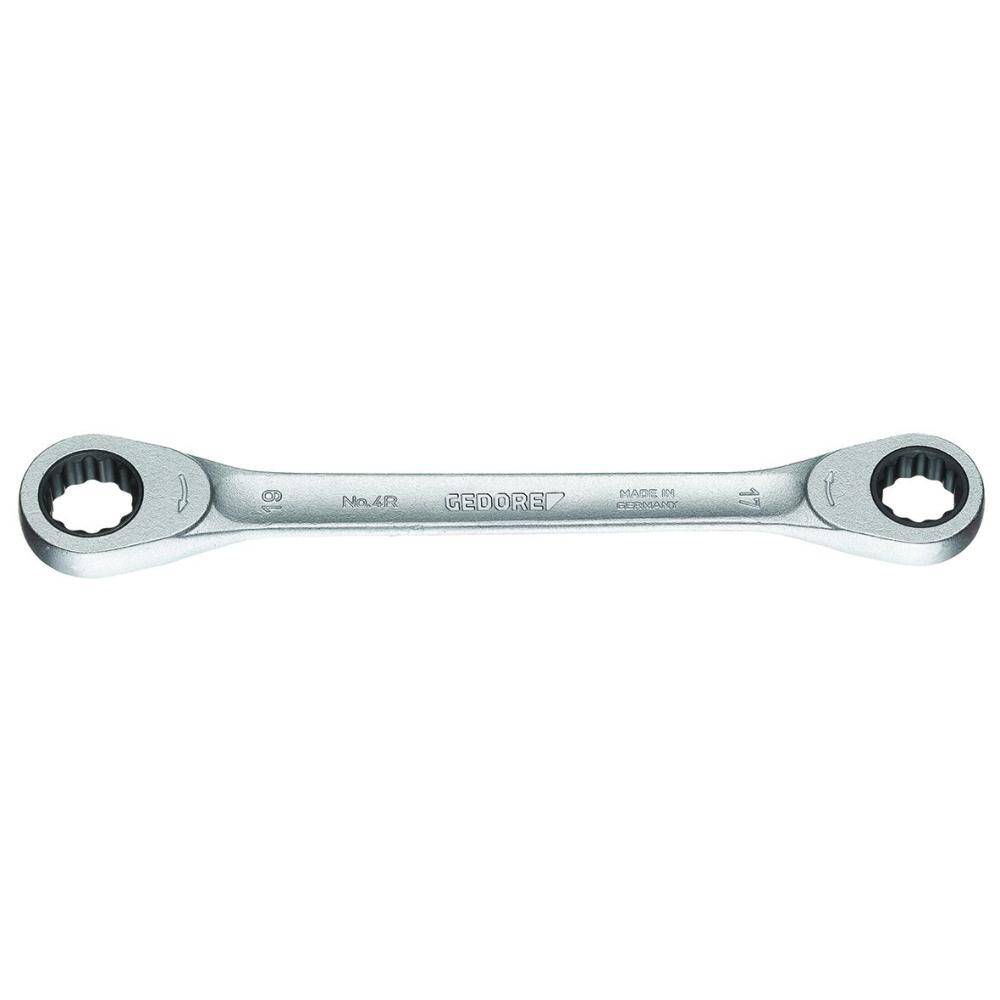

Gedore 2306719 (Series 4R 8×9) Flat ring ratchet spanner 8×9 mm

Description

Flat pattern. Thin walled. UD-profile. Working angle: 7° up to 14×15 mm, 6° from 16×17 mm to 18×19 mm. For ratchet loosening and fast tightening. Gedore vanadium steel 31CrV3. Non-glare look thanks to matt chrome-plating, locking insert and pawl manganese-phosphated. Hot forged. Tried-and-tested Gedore technology combined anew: stable hollow shaft of no. 7 and refined mechanism of the U-20 ratchets. In combination with adaptor no. 7 RA or 7 RB (please order separately) the spanner no. 4 R can be used as a (bit) ratchet.

• Length (L, L1):- 134,0 mm
• Width of Head (b, b1, n, W3):- 17,5 mm
• Width of Head (b2):- 19,3 mm
• Width Across Flat 2:- 8 x 9 mm
• Height of Head (a2):- 7,3 mm
• Angle:- 7 Degree
• Packing Unit:- 1 Piece
• Weight:- 0.04 kg
