Gedore 2653249 (Series DVI-20L) Torque Multiplier DREMOPLUS ALU 2000 Nm

Description

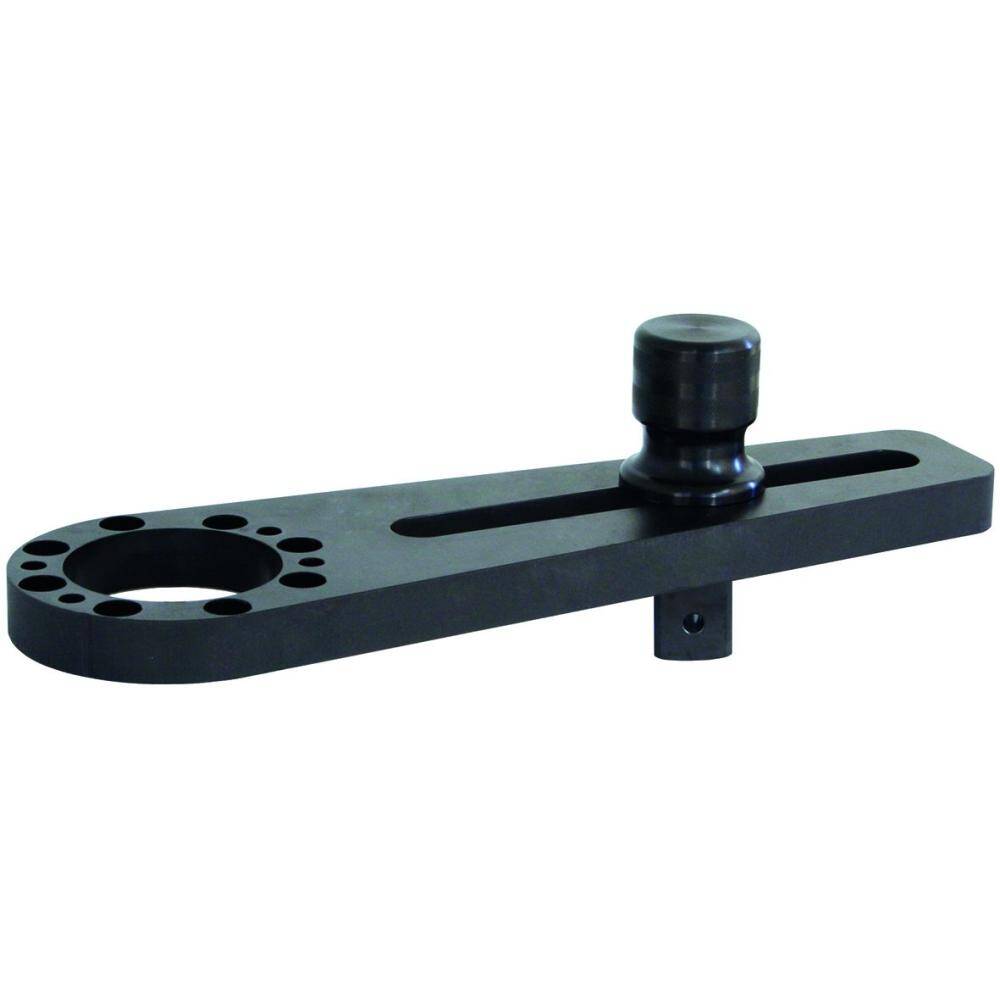

Particularly suitable for Industry, construction sites, car and truck garages, agricultural technology, construction machinery. Bridge, aircraft and railway construction, shipbuilding, refineries. Machinery and plant engineering, maintenance Features:. Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections. With a single-stage planet gear. High-performance aluminium housing. Multiplication at the ratio of 1:4, 1:5.5. Guaranteed accuracy: Better than /- 3 % tolerance. For operation in combination with a torque wrench. 2 models for maximum load in the range between max. 2000 N·m and 2800 N·m. Z model: with Z-form, offset reaction arm of chrome-vanadium steel. L model: with L-form straight reaction arm – with adjustable reaction square – of lightweight metal. Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:. Torque Multiplier DREMOPLUS ALU. With firmly integrated reaction arm of an Z- or L-form depending on model. Delivery in sturdy shipping case with foam insert. Factory test certificate and setting table. Detailed technical information is available on request.

• Output Torque (max. Nm):- 2000 N·m
• Input Torque (max. Nm):- 580 N·m
• Output Torque (Max. lbf.ft):- 1500 lbf·ft
• Packing Unit:- 1 Piece
• Distance from Drive to Beginning of Reaction Arm (min.):- 73 mm
• Distance from Drive to End of Reaction Arm (max.):- 152 mm
• Weight:- 3 kg
• Execution Reaction Arm:- straight
• Width of Torque Multiplier:- 88 mm
• Height of Torque Multiplier:- 131 mm
• Input Torque lbf.ft:- 430 lbf·ft
