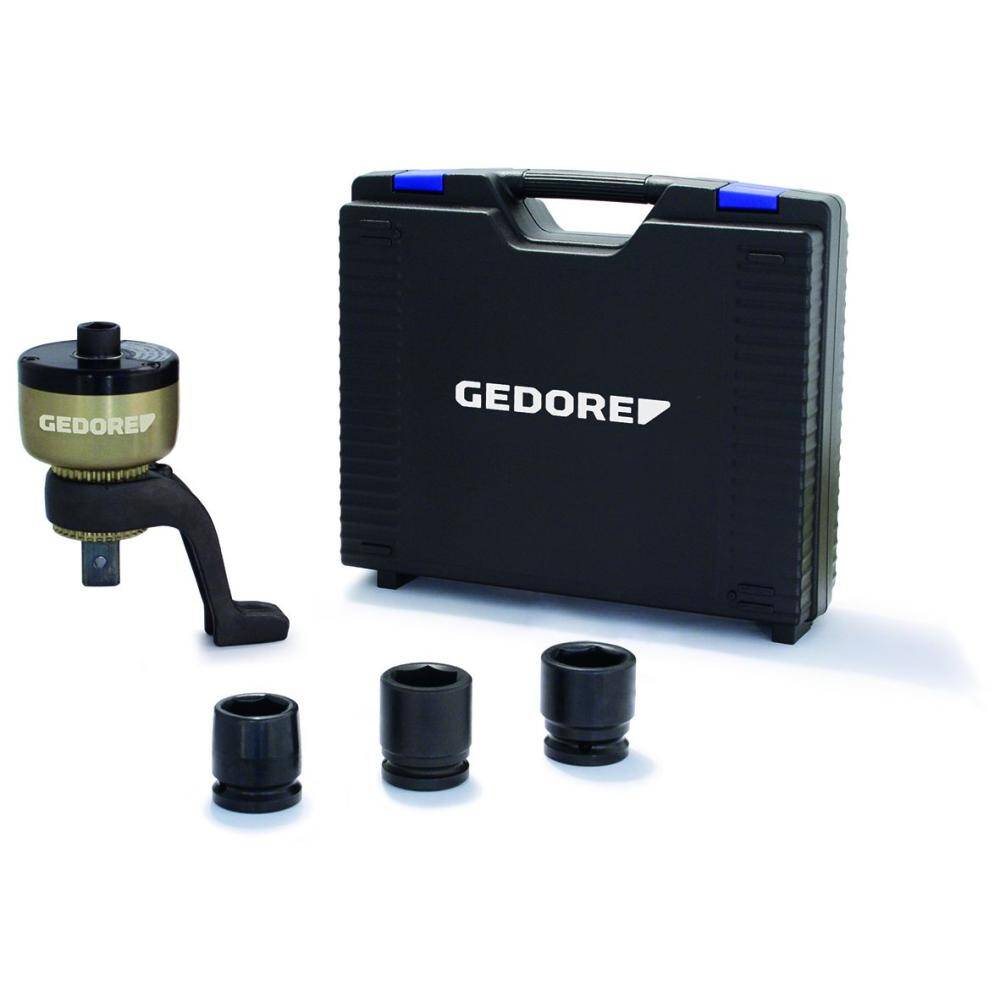

Gedore 2653389 (Series DVV-13ZG) Torque Multiplier Set DREMOPLUS ALU 1300 Nm

Description

Particularly suitable for Industry, construction sites, car and truck garages, agricultural technology. Bridge, aircraft and railway construction, shipbuilding, refineries. Machinery and plant engineering, maintenance Features:. Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections. With a single-stage planet gear. High-performance aluminium housing. With Z-form offset reaction arm of chrome-vanadium steel. Can be optionally retrofitted with L-form straight reaction arm – with adjustable reaction arm – of lightweight metal. Multiplication at the ratio of 1:5. Guaranteed accuracy: Better than /- 3 % tolerance. For operation in combination with a torque wrench. 1 model for a maximum load of around a max. 1300 N·m. Also available as set (No. DVV-13ZG) with three different impact sockets – sizes 27, 30, 32 mm. Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:. Torque Multiplier DREMOPLUS ALU. With Z-form offset reaction arm. Delivery in sturdy shipping case with foam insert. Factory test certificate and setting table. Detailed technical information is available on request.

• Output Torque (max. Nm):- 1300 N·m
• Input Torque (max. Nm):- 270 N·m
• Output Torque (Max. lbf.ft):- 950 lbf·ft
• Packing Unit:- 1 Piece
• Distance from Drive to Beginning of Reaction Arm (min.):- 56 mm
• Distance from Drive to End of Reaction Arm (max.):- 95 mm
• Total Height with Reaction Arm (min.):- 165 mm
• Total Height with Reaction Arm (max.):- 173 mm
• Weight:- 3 kg
• Width of Torque Multiplier:- 80 mm
• Height of Torque Multiplier:- 133 mm
• Input Torque lbf.ft:- 200 lbf·ft
