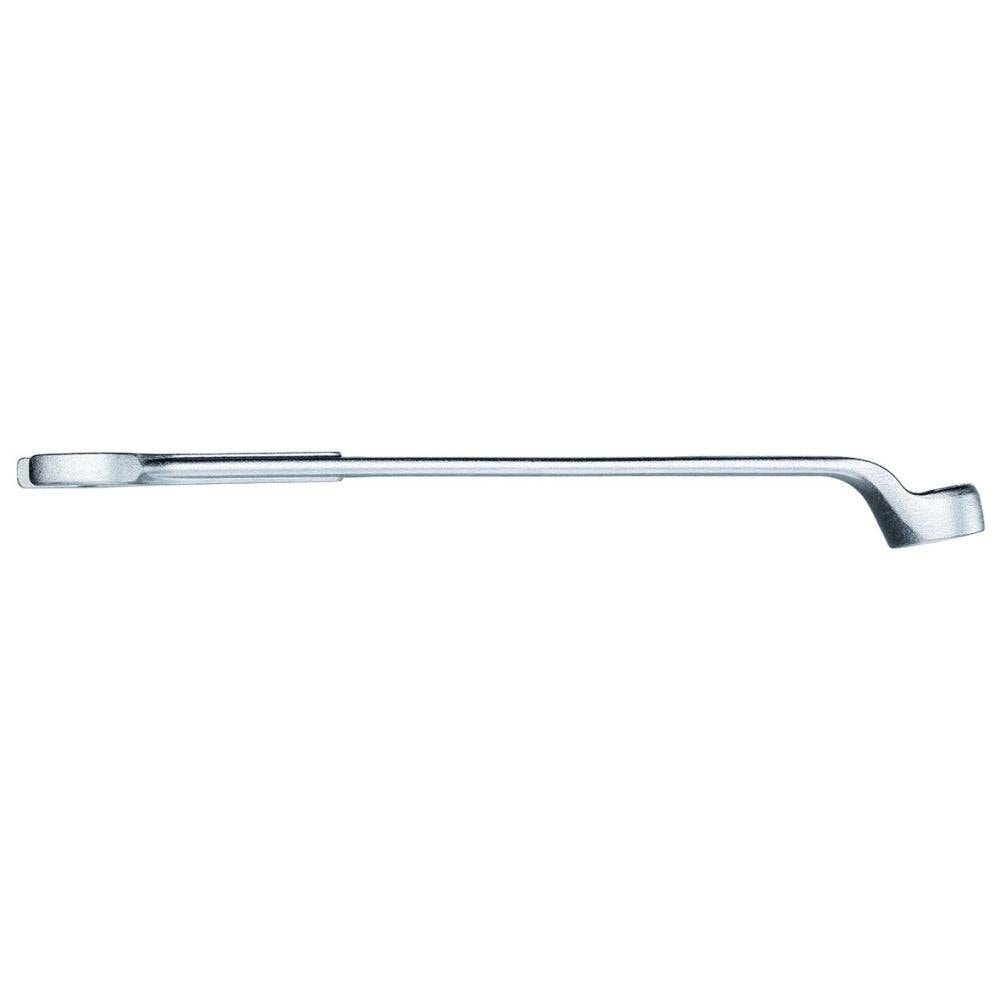

Gedore 6000910 (Series 1B 11) Combination spanner 11 mm

Description

Acc. to DIN 3113 Form B, ISO 3318, ISO 7738. Ring 10° offset from shaft, extra strong rings but thin wall. Sizes 5 and 5.5 mm with hexagon ring, up from size 6 mm with UD profile. Gedore vanadium steel 31CrV3, chrome-plated. * not standardised.

• Length (L, L1):- 158 mm
• Width Across Flat:- 11,0 mm
• Width of Head (b, b1, n, W3):- 16,8 mm
• Width of Head (b2):- 25,5 mm
• Height of Head (a, a1, b, h, L2, t):- 8,2 mm
• Height of Offset (h):- 15,0 mm
• Height of Head (a2):- 5,0 mm
• Packing Unit:- 10 Piece
• Weight:- 0.05 kg
