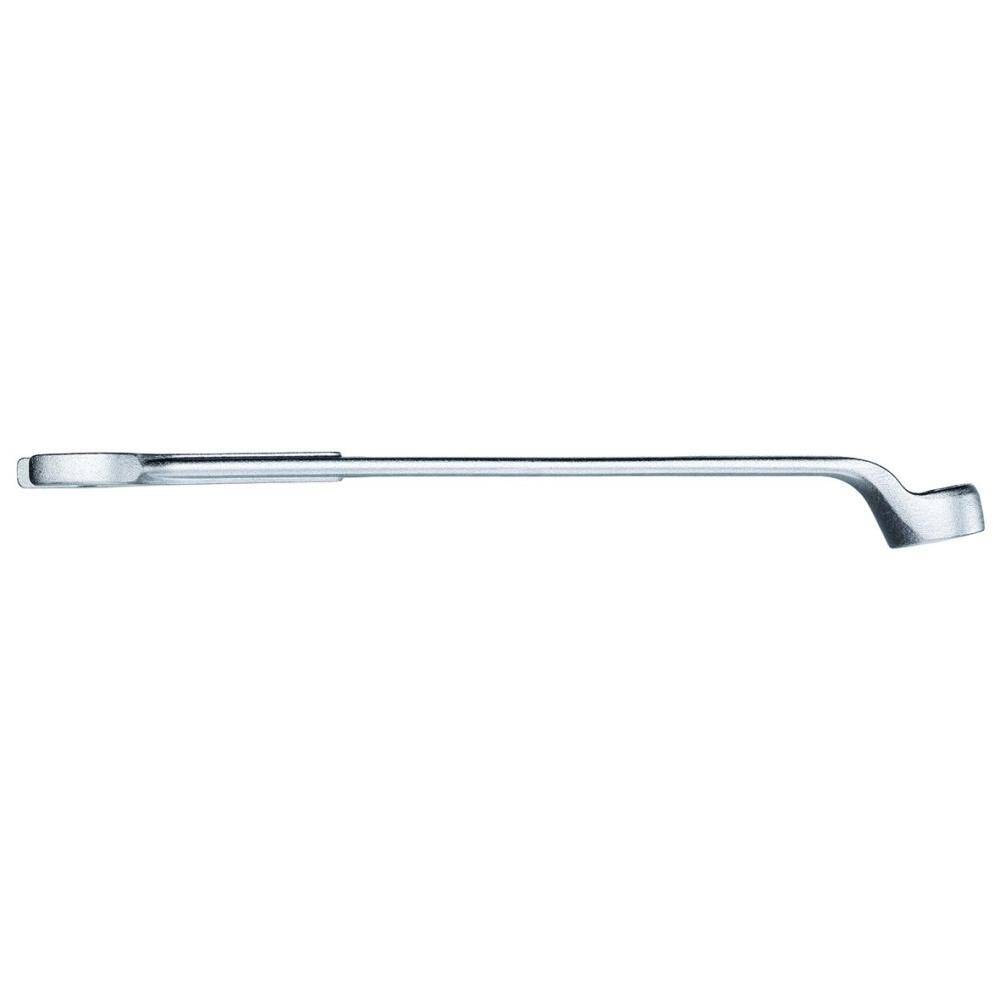

Gedore 6003690 (Series 1B 41) Combination spanner 41 mm

Description

Acc. to DIN 3113 Form B, ISO 3318, ISO 7738. Ring 10° offset from shaft, extra strong rings but thin wall. Sizes 5 and 5.5 mm with hexagon ring, up from size 6 mm with UD profile. Gedore vanadium steel 31CrV3, chrome-plated. * not standardised.

• Length (L, L1):- 520 mm
• Width Across Flat:- 41,0 mm
• Width of Head (b, b1, n, W3):- 60,2 mm
• Width of Head (b2):- 85,0 mm
• Height of Head (a, a1, b, h, L2, t):- 24,2 mm
• Height of Offset (h):- 49,0 mm
• Height of Head (a2):- 14,0 mm
• Packing Unit:- 1 Piece
• Weight:- 1.452 kg
