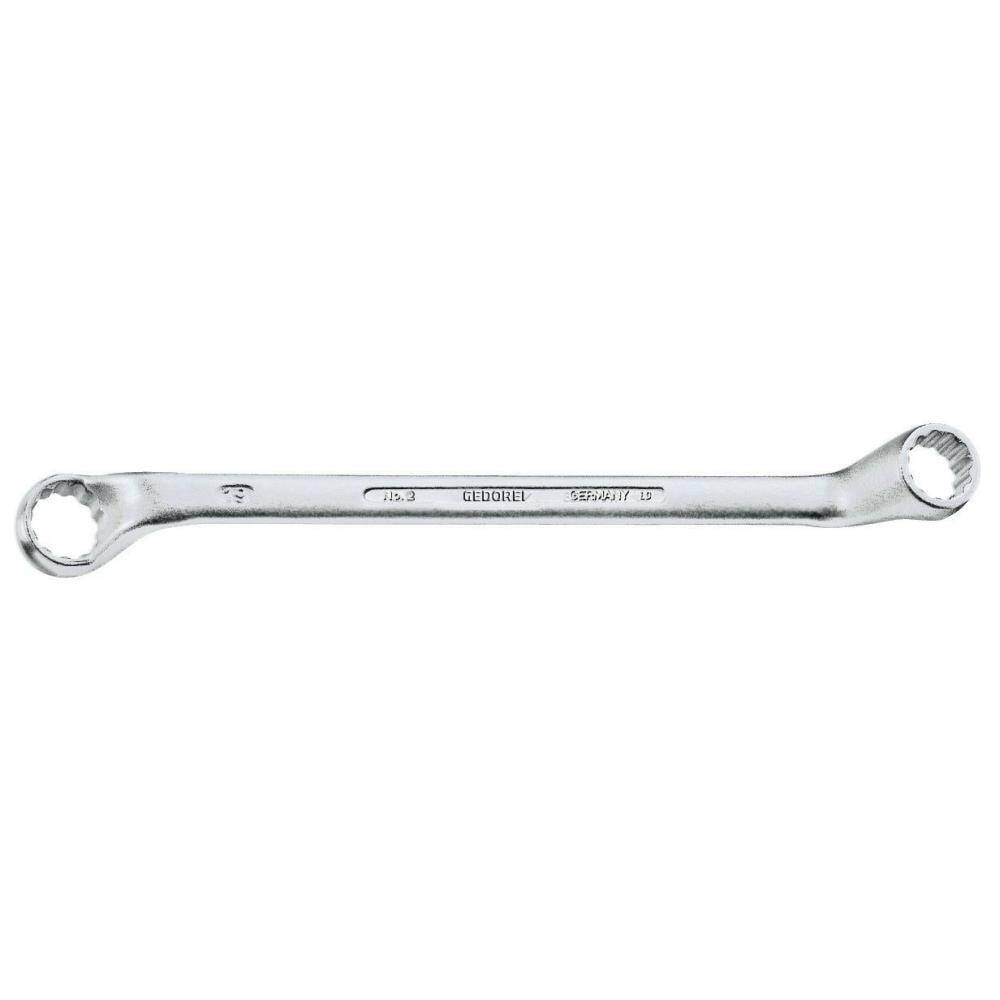

Gedore 6016830 (Series 2 13×15) Double ended ring spanner offset 13×15 mm

Description

Rings deep offset, strong but thin walls. Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104. Gedore vanadium steel 31CrV3, chrome-plated. * not standardised.

• Length (L, L1):- 225 mm
• Width of Head (b, b1, n, W3):- 20,1 mm
• Width of Head (b2):- 23,1 mm
• Height of Head (a, a1, b, h, L2, t):- 10,3 mm
• Height of Offset (h):- 26,1 mm
• Width Across Flat 2:- 13 x 15 mm
• Height of Head (a2):- 11,3 mm
• Packing Unit:- 5 Piece
• Weight:- 0.16 kg
