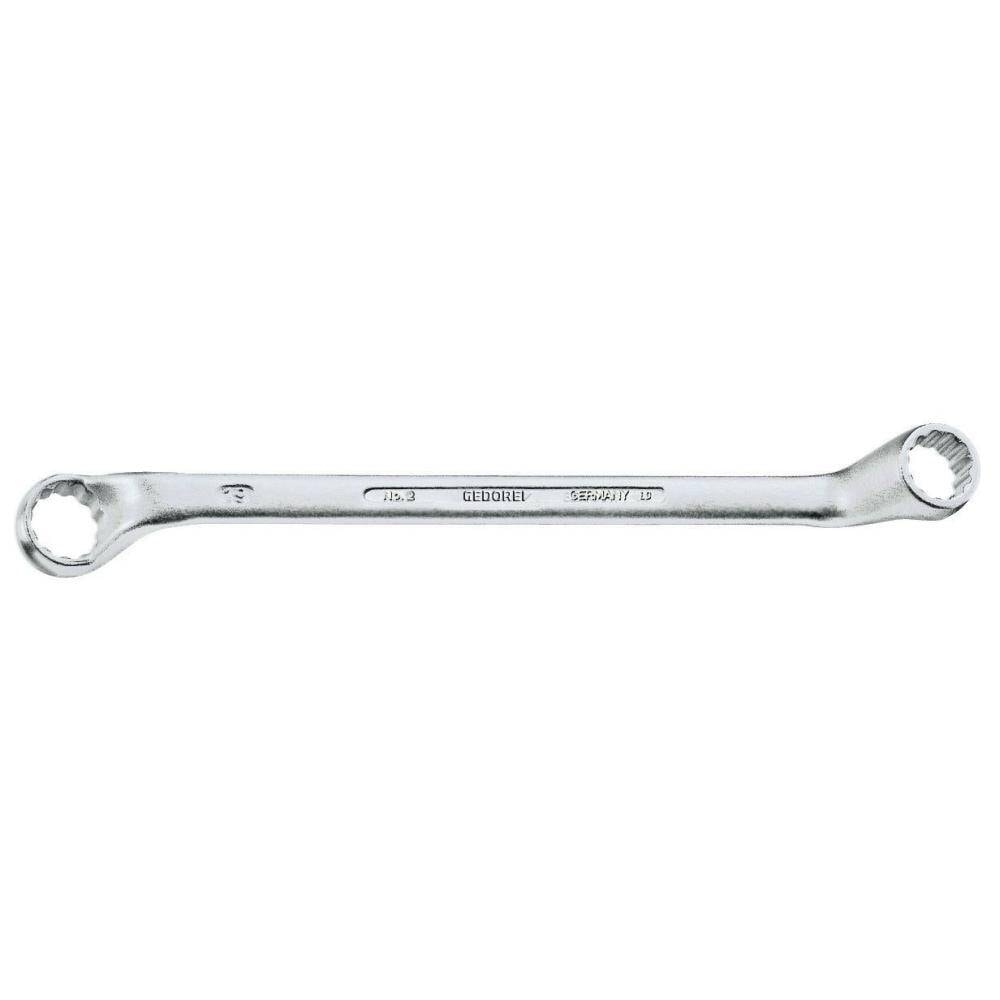

Gedore 6019770 (Series 2 41×46) Double ended ring spanner offset 41×46 mm

Description

Rings deep offset, strong but thin walls. Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104. Gedore vanadium steel 31CrV3, chrome-plated. * not standardised.

• Length (L, L1):- 485 mm
• Width of Head (b, b1, n, W3):- 62,0 mm
• Width of Head (b2):- 68,9 mm
• Height of Head (a, a1, b, h, L2, t):- 19,7 mm
• Height of Offset (h):- 42,8 mm
• Width Across Flat 2:- 41 x 46 mm
• Height of Head (a2):- 22,2 mm
• Packing Unit:- 1 Piece
• Weight:- 1.535 kg
