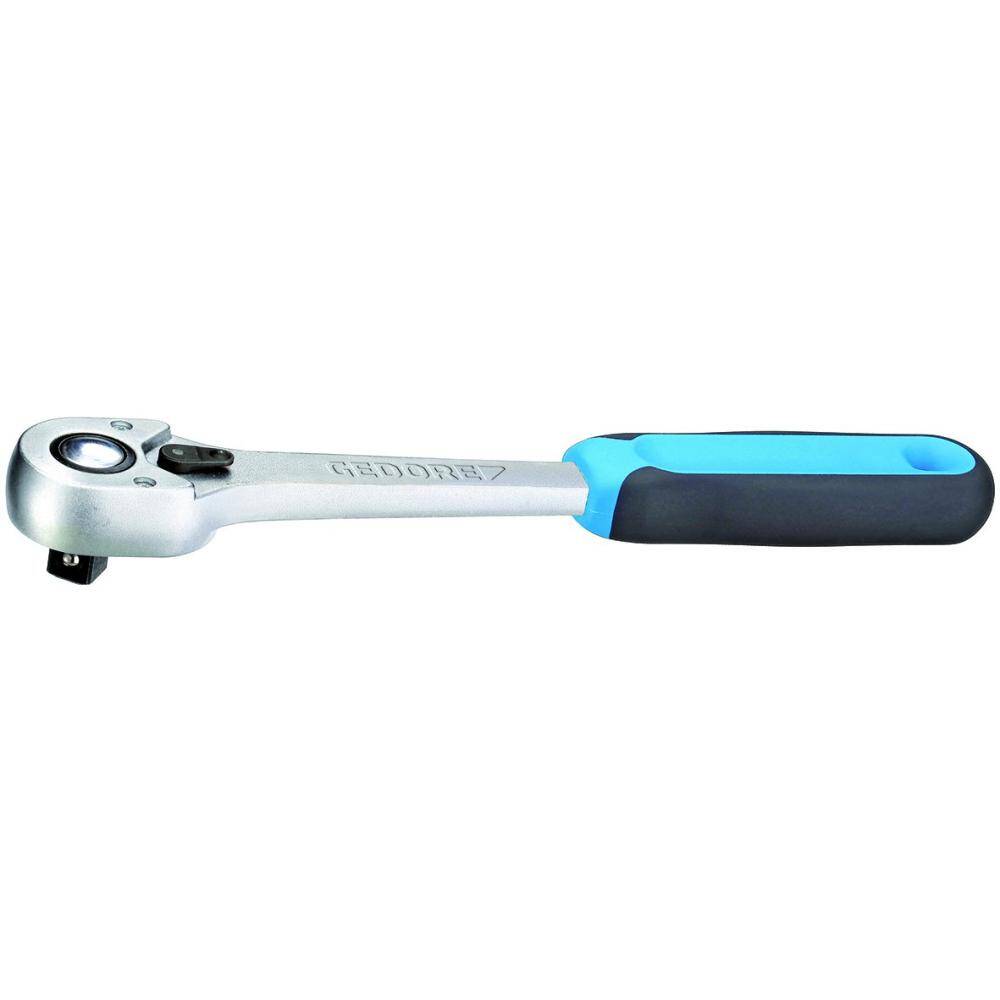

Gedore 6236950 (Series 3093 U-10) Reversible ratchet 3/8″ 200 mm

Description

Particularly for the demanding use experienced in industry and with utility vehicles. Acc. to DIN 3122, ISO 3315. With recessed lever change. Locks in the middle position: When the lever is flipped, it automatically engages for clockwise or counterclockwise operation. Push-button release. Return angle 11.25 degrees. Non-slip 2-component handle with hanging hole. For hand-operated sockets and accessories with square drive as per DIN 3120 – C 10, ISO 1174, ball locking device. Gedore vanadium steel 31CrV3, chrome-plated.

• Length (L, L1):- 200 mm
• Width of Head (b, b1, n, W3):- 35 mm
• Height:- 30,2 mm
• Drive Connector Square (Male):- 3/8 inch
• Angle:- 11,25 Degree
• Packing Unit:- 5 Piece
• Weight:- 0.254 kg
• Drive Connector Square (Male) Nominal Size:- 10 mm
