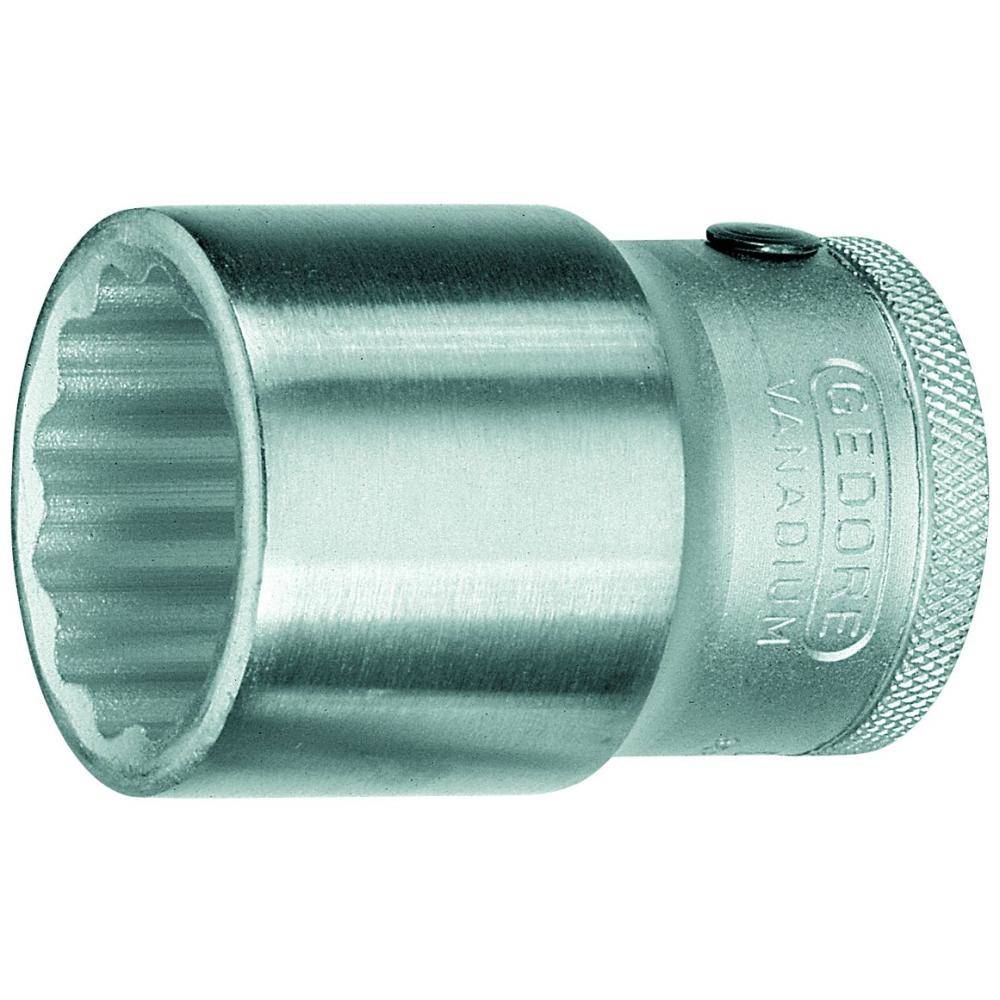

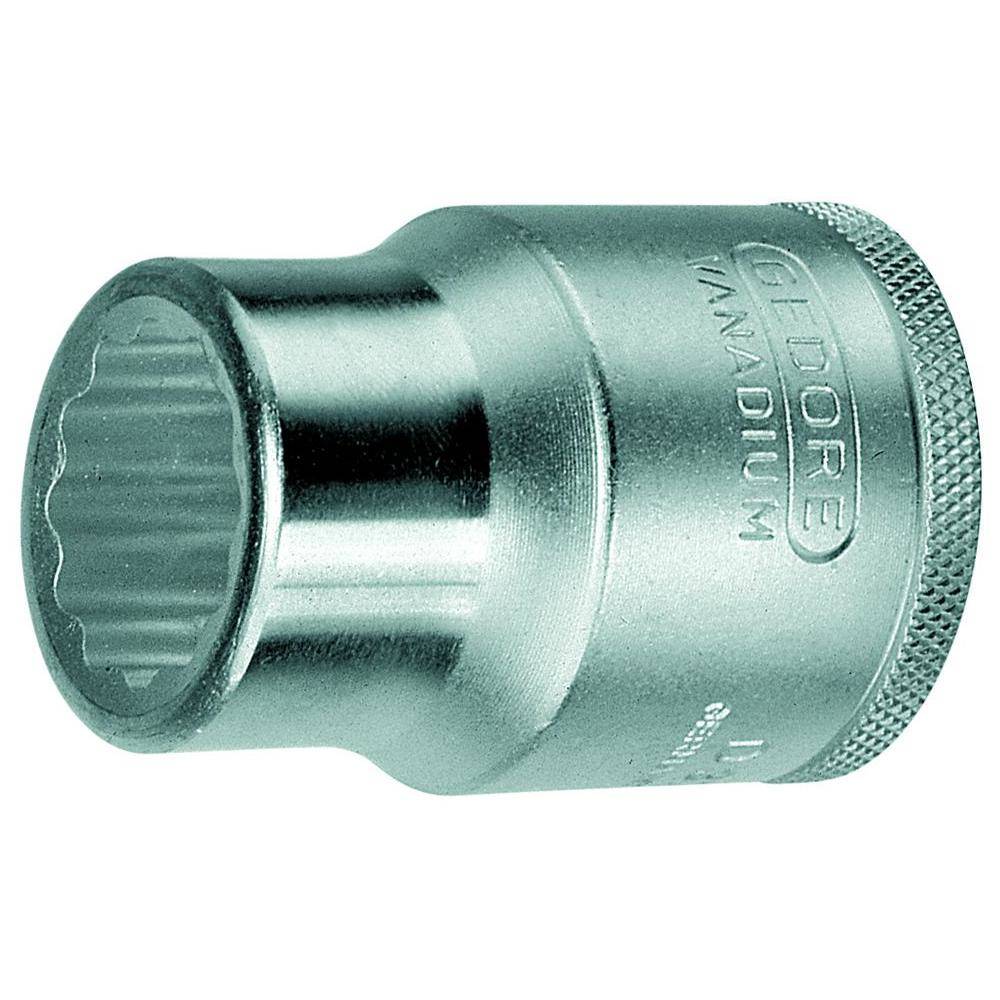

Gedore 6272400 (Series D32 27) Socket 3/4″ 27 mm

Description

Acc. to DIN 3124, ISO 2725-1. Square drive as per DIN 3120 – D 20, ISO 1174, with locking pin. Hand-operated, knurled grip. Gedore vanadium steel 31CrV3, chrome-plated. * not standardised.

• Length (L, L1):- 54,5 mm
• Diameter 1:- 39,6 mm
• Diameter 2:- 36,0 mm
• Width Across Flat:- 27 mm
• Depth of Head (a1, t):- 24,0 mm
• Drive Connector Square (Female):- 3/4 inch
• Packing Unit:- 1 Piece
• Weight:- 0.255 kg
• Drive Connector Square (Female) Nominal Size:- 20 mm
