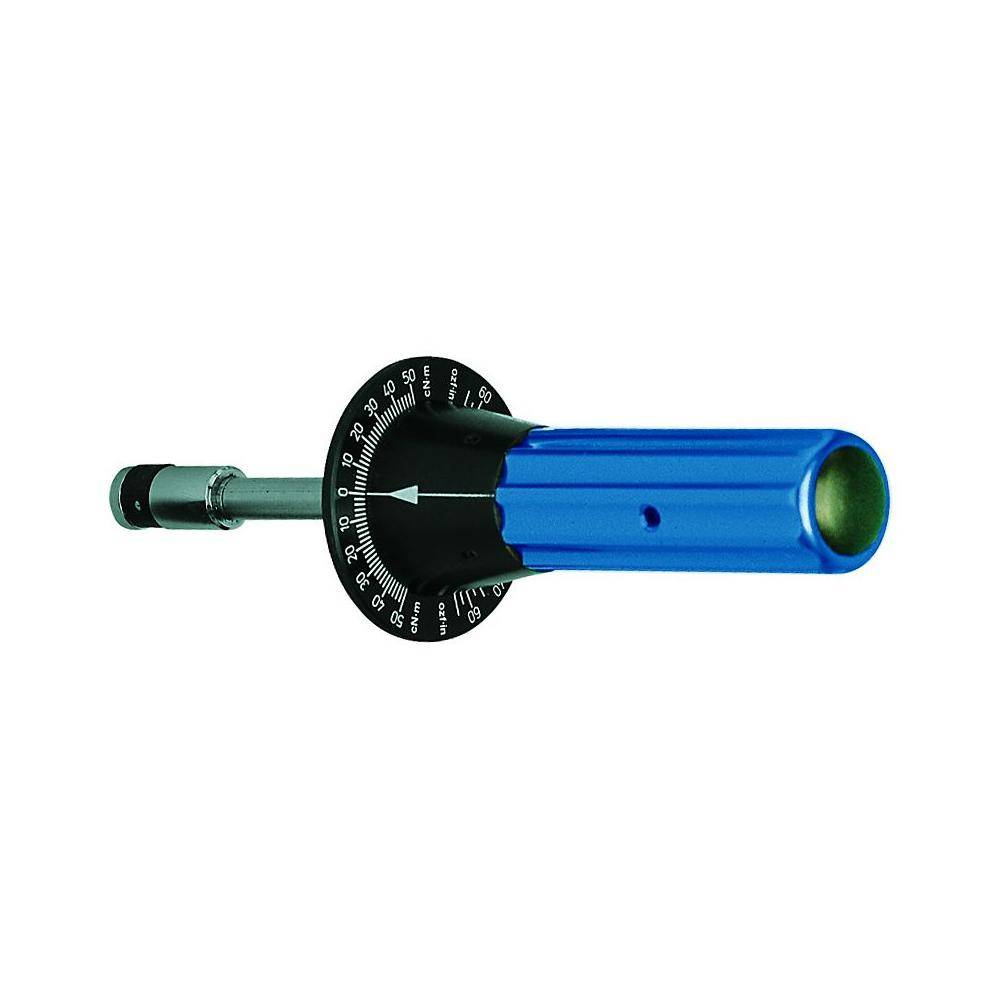

Gedore 7096380 (Series 758-05) Torque screwdriver SP 1/4″ 10-50 cNm

Description

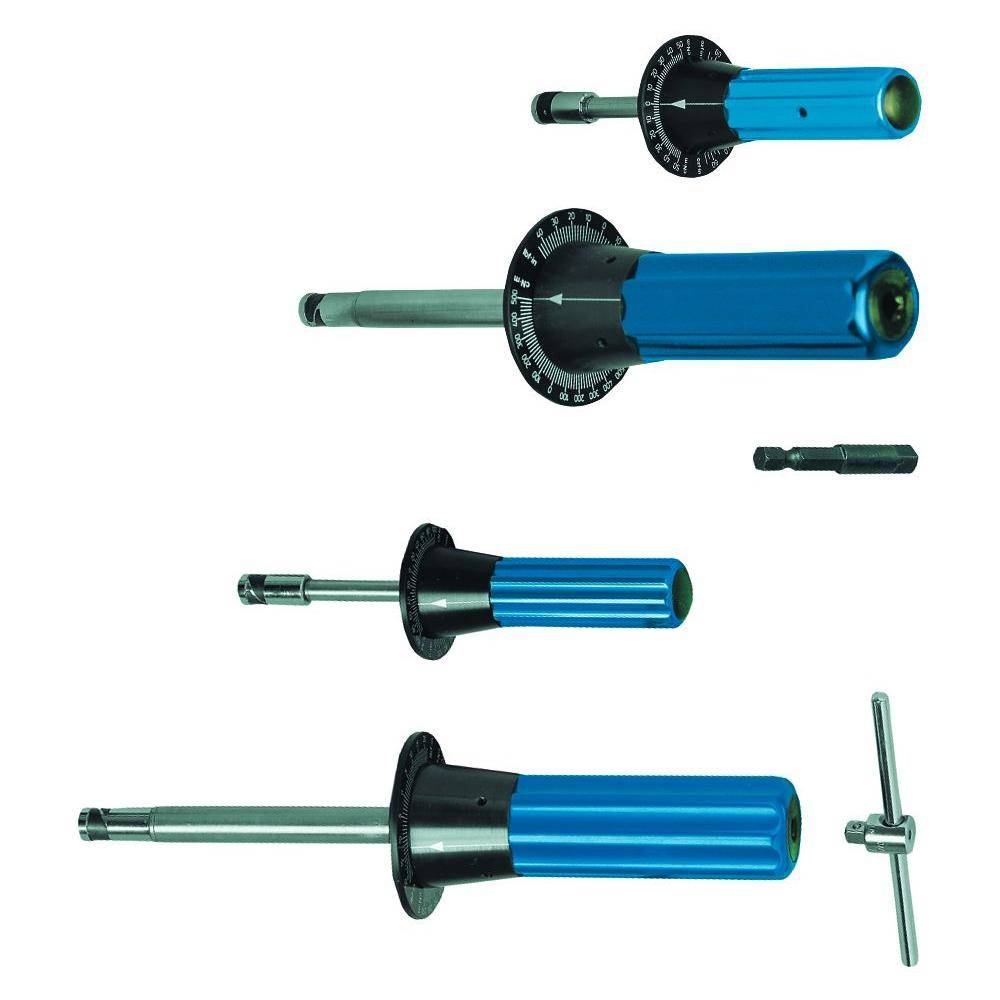

In the torque range 0.1 – 5.0 N·m. For test and installation work in the electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control Features:. Dial-indicating torque and test screwdriver – with dual scale (cN·m/ozf·in/lbf·in). With 1/4″ female hexagon drive for use with 1/4″ hexagon bits as per DIN 3126 – C 6.3. With adapter also suitable for 1/4″ square drive sockets as per DIN 3124. Display accuracy: /- 6 % tolerance of the indicated value. Acc. to DIN EN ISO 6789, traceable to national standards. For controlled bi-directional tightening. With slave-pointer function. For locking of maximum values / maximum-value display. 4 models in the range 0.1 N·m to 5.0 N·m. Lightweight construction by virtue of anodised aluminium handgrips. EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery:. Torque screwdriver type 758. 1/4″ square/hexagon drive adapter (no. 757-20). Models 758-25/-50 with additional sliding T-bar for ease of use. Test certificate acc. to DIN EN ISO 6789. Delivered in sturdy cardboard packaging.

• Length (L, L1):- 178 mm
• Drive Connector Square (Male):- 1/4 inch
• Scale Divisions:- 2 cN·m / 2 ozf·in
• Range of Work / Measurement Nm (min/max):- 0,1-0,5 N·m
• Packing Unit:- 1 Piece
• Weight:- 0.19 kg
• Range of Work / Measurement cNM (min/max):- 10-50 cN·m
• Range of Work / Measurement lbf.in (min/max):- 14-70 ozf·in lbf·in
• Drive Connector Hexagon (Female):- 1/4 inch
• Drive Connector Square (Male) Nominal Size:- 6,3 mm
• Drive Connector Hexagon (Female) Nominal Size:- 6,3 mm
