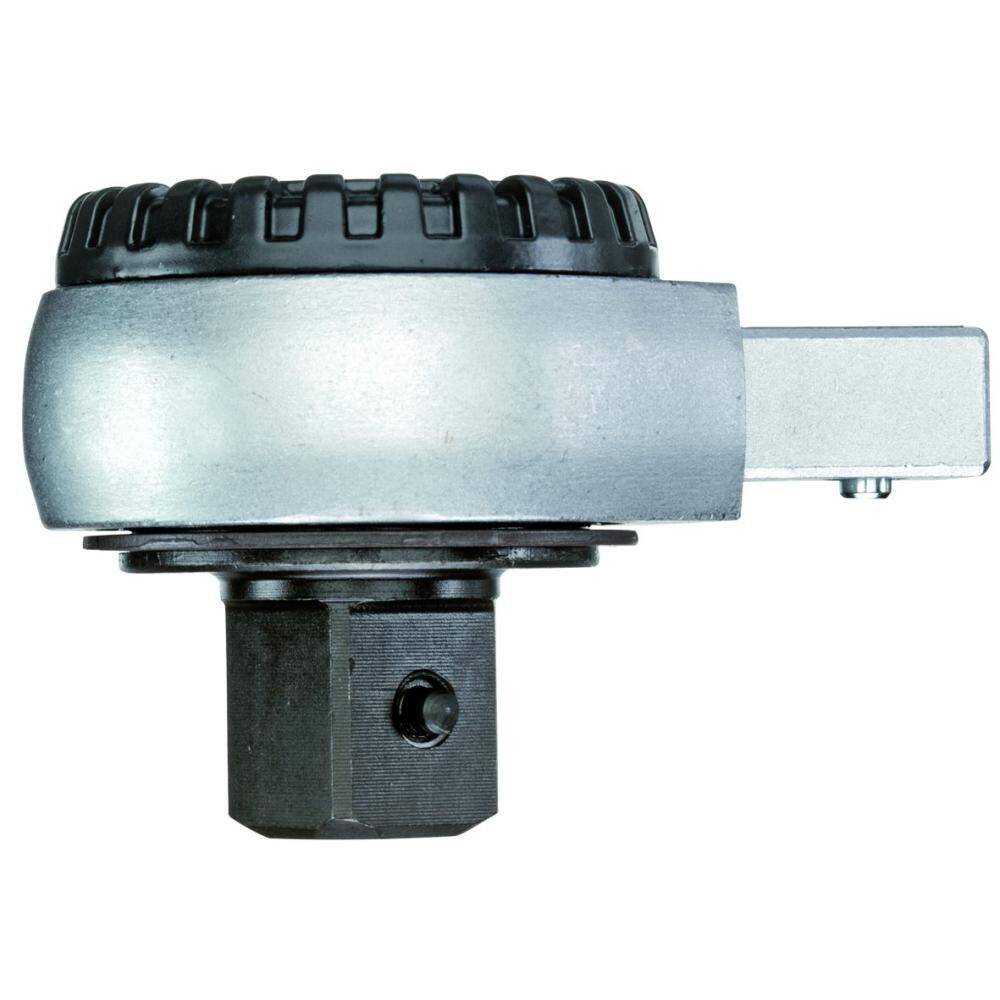

Gedore 7687660 (Series 7418-04) Rectangular reversible ratchet head 3/4″ SE 14×18

Description

For accessing bolts in cramped and hard-to-reach locations, easy to change. Forged. Chrome-vanadium steel, matt chrome-plated. With eject-pin for unlocking. Fine-toothed. Return angle 7 degrees. Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity.

• Width of Head (b2):- 64 mm
• Drive Connector Square (Male):- 3/4 inch
• Height of Head (a2):- 35,5 mm
• Drive Connector Rectangular:- 14 x 18 mm
• Angle:- 7,2 Degree
• Depth Gauge (C, L):- 33 mm
• Packing Unit:- 1 Piece
• Weight:- 0.78 kg
• Drive Connector Square (Male) Nominal Size:- 20,0 mm
• Continuous Load:- 3/4″ = 400 N·m
