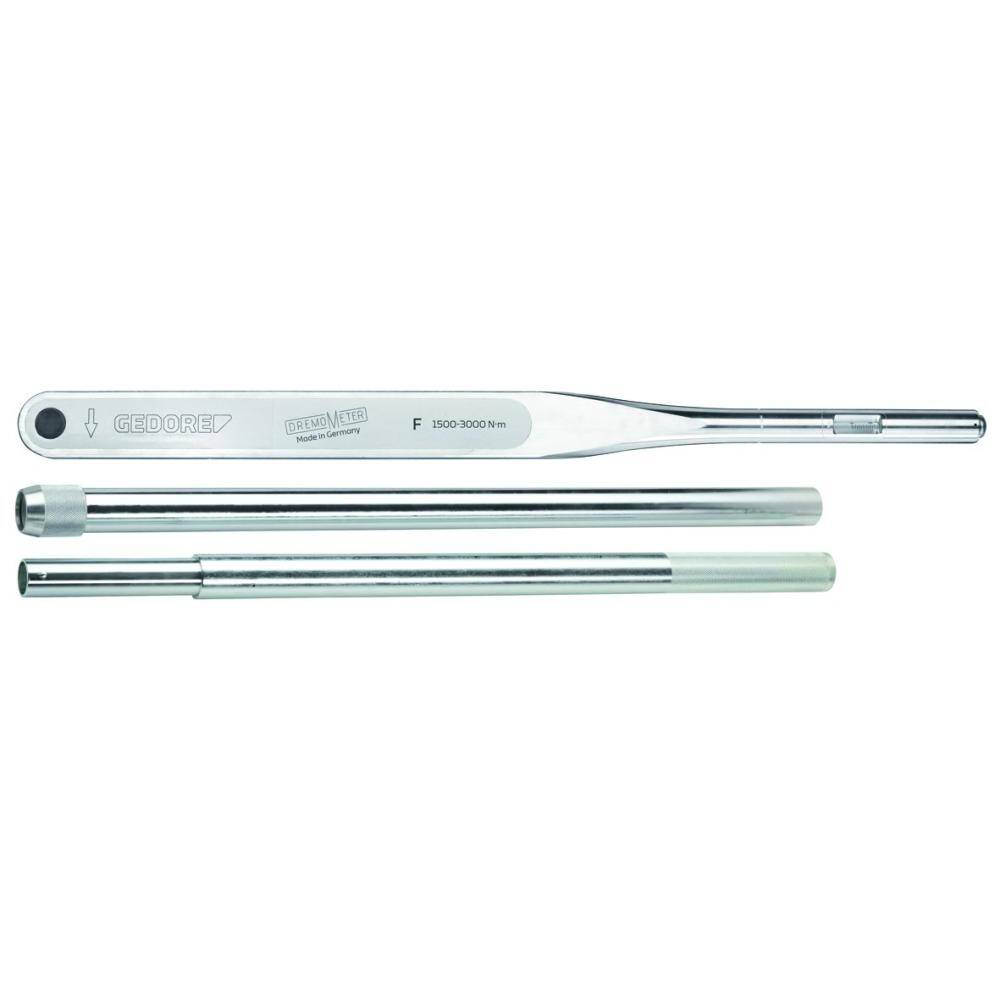

Gedore 7717160 (Series 8572-01) Torque wrench DREMOMETER F 1.1/2″ 1500-3000 Nm

Description

Controlled screw tightening in the range 1500-3000 N·m. For use in almost all industrial manufacturing areas Features:. Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: /- 3 % tolerance of scale set torque. The specification of the standard ( /- 4 %) is exceeded. 1.1/2″ square drive with pin-locking mechanism DIN 3121 – F 40, ISO 1174. Automatic short-path actuation with tactile impulse and audible signal. Single scale with scale graduation 50 N·m Technical advantage/Function:. Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly. No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user’s working load. Extremely low wear attributable to reduced forces in a unique lever mechanism. Forged lever chain from our own quality forge. Maximum precision even when subjected to extreme continuous use. Long life cycles and tool lives. Easy operation – fast and safe torque tightening. Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle. Single square drive for controlled clockwise tightening.

• Length (L, L1):- 1037 mm
• Height:- 40 mm
• Drive Connector Square (Male):- 1.1/2 inch
• Scale Divisions:- 50 N·m
• Range of Work / Measurement Nm (min/max):- 1500-3000 N·m
• Packing Unit:- 1 Piece
• Distance from Middle of Handgrip to Pivot Point:- 2309 mm
• Distance from Housing to Square Drive:- 35,0 mm
• Length of Extension Tube:- 925 mm
• Length of Torque Wrench with Tube:- 2454 mm
• Length of Extension Tube 2:- 745 mm
• Extension Tube Y/N:- 8564-92 / 8572-74
• Weight:- 15 kg
• Drive Connector Square (Male) Nominal Size:- 40 mm
