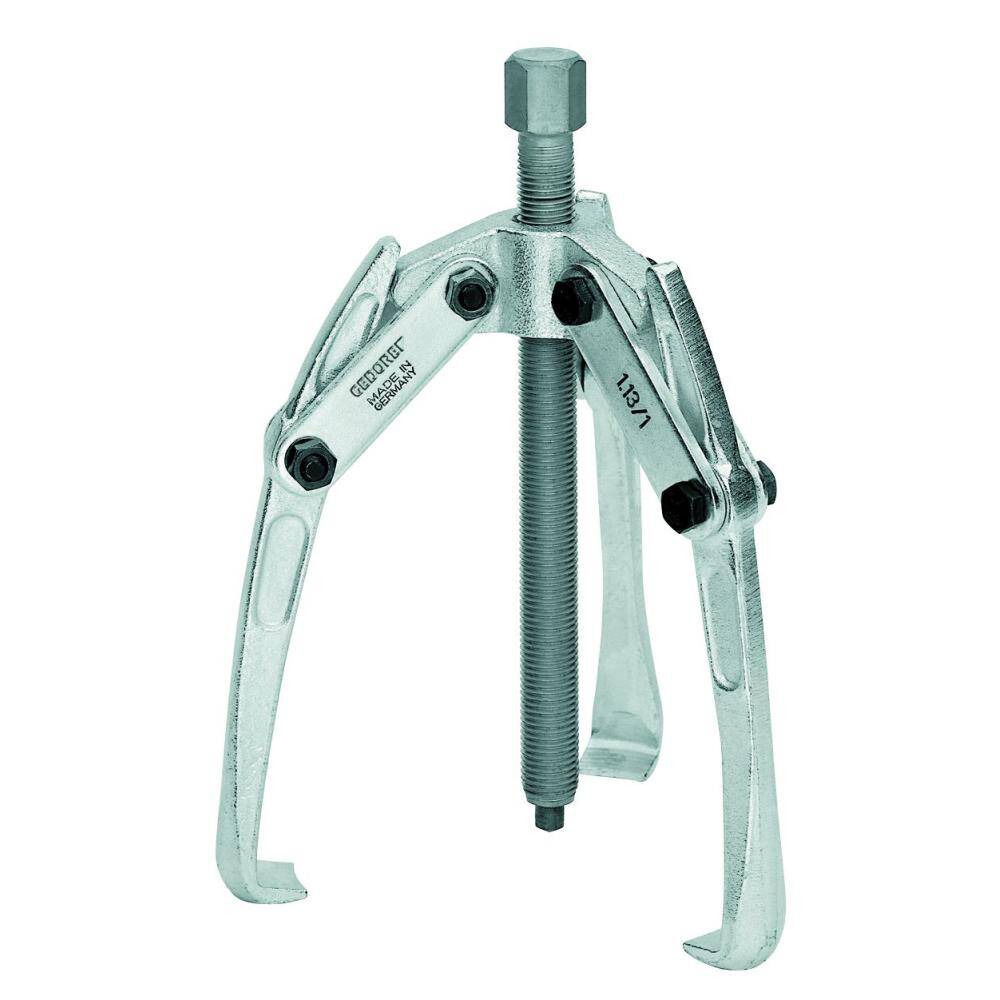

Gedore 8004300 (Series 1.13/2) Puller 3-arm pattern 130×160 mm

Description

Handy robust model for the removal of pulleys, wheels, ball bearings, etc. Inexpensive economy model. The legs grip automatically.

• Width Across Flat / Actuating Hexagon:- 19 mm
• Clamping Spread – max – External Pulling (a, a1):- 130 mm
• Spindle Size (Thread x Length):- M 18×1,5 x 200
• Width of Hooked Foot :- 25 mm
• Depth of Hooked Foot (d):- 14 mm
• Thickness of Hooked Foot at tip:- 3mm
• Loading Max T:- 7,5 t
• Packing Unit:- 1 Piece
• Weight:- 2.5 kg
• Clamping Reach:- 160 mm
