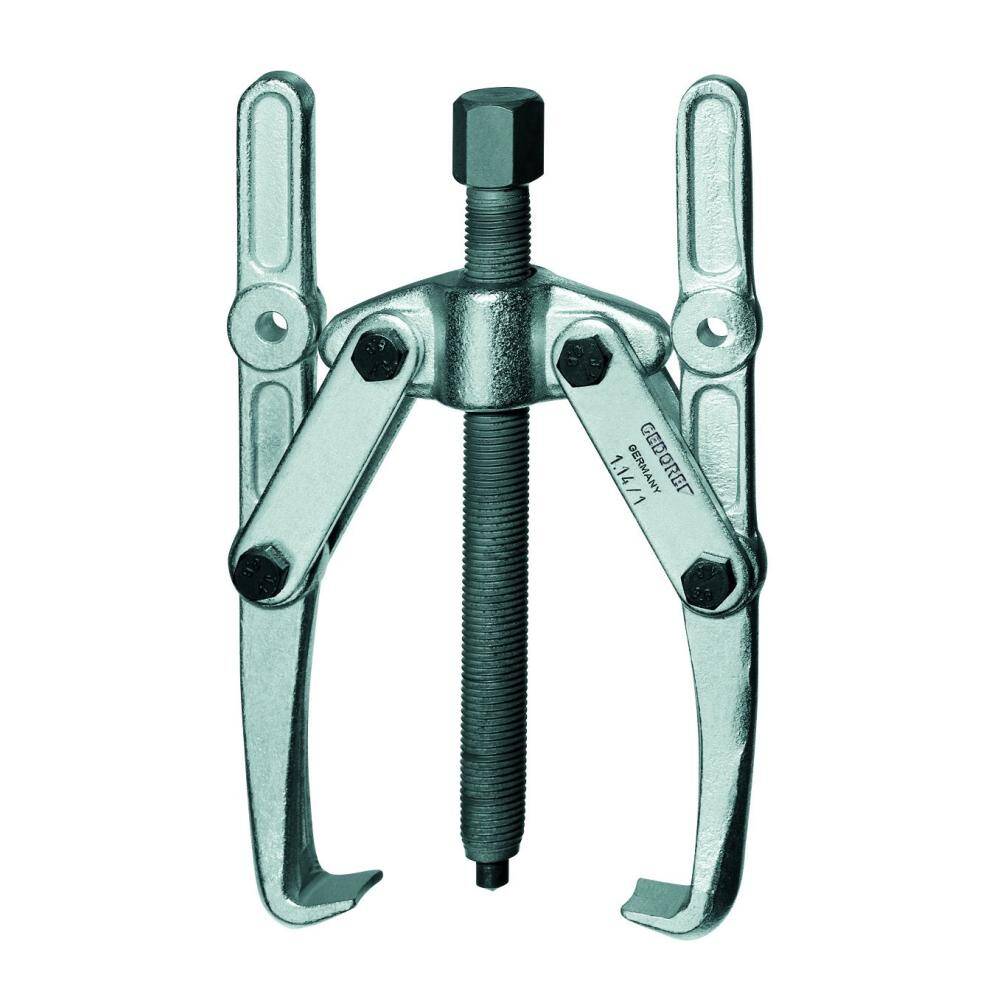

Gedore 8005030 (Series 1.14/1) Puller 2-arm pattern 130×140 mm

£64.01 inc VAT

  • Width Across Flat / Actuating Hexagon:- 17 mm
  • Clamping Spread – max – External Pulling (a, a1):- 130 mm
  • Spindle Size (Thread x Length):- M 14×1,5 x 140
  • Width of Hooked Foot :- 18 mm
  • Depth of Hooked Foot (d):- 11 mm
  • Thickness of Hooked Foot at tip:- 2,0mm
  • Loading Max T:- 2,0 t
  • Packing Unit:- 1 Piece
  • Weight:- 0.9 kg
  • Clamping Reach:- 140 mm

Usually available from UK stock

SKU: HYDBA8005030 Category:

Description

The reliable, extra-strong model for the removal of pulleys, wheels, ball bearings, etc. With technical and economical benefits due to the variable clamping reach and automatic grip of the legs. Especially suited to removing V-belt pulley wheels and flywheels mounted on longer shafts. Upgradeable with hydraulic spindle (see table).

  • Width Across Flat / Actuating Hexagon:- 17 mm
  • Clamping Spread – max – External Pulling (a, a1):- 130 mm
  • Spindle Size (Thread x Length):- M 14×1,5 x 140
  • Width of Hooked Foot :- 18 mm
  • Depth of Hooked Foot (d):- 11 mm
  • Thickness of Hooked Foot at tip:- 2,0mm
  • Loading Max T:- 2,0 t
  • Packing Unit:- 1 Piece
  • Weight:- 0.9 kg
  • Clamping Reach:- 140 mm

Additional information

Weight 0.9 kg
Weight

EAN

Product Condition

Brand

Gedore

MPN
