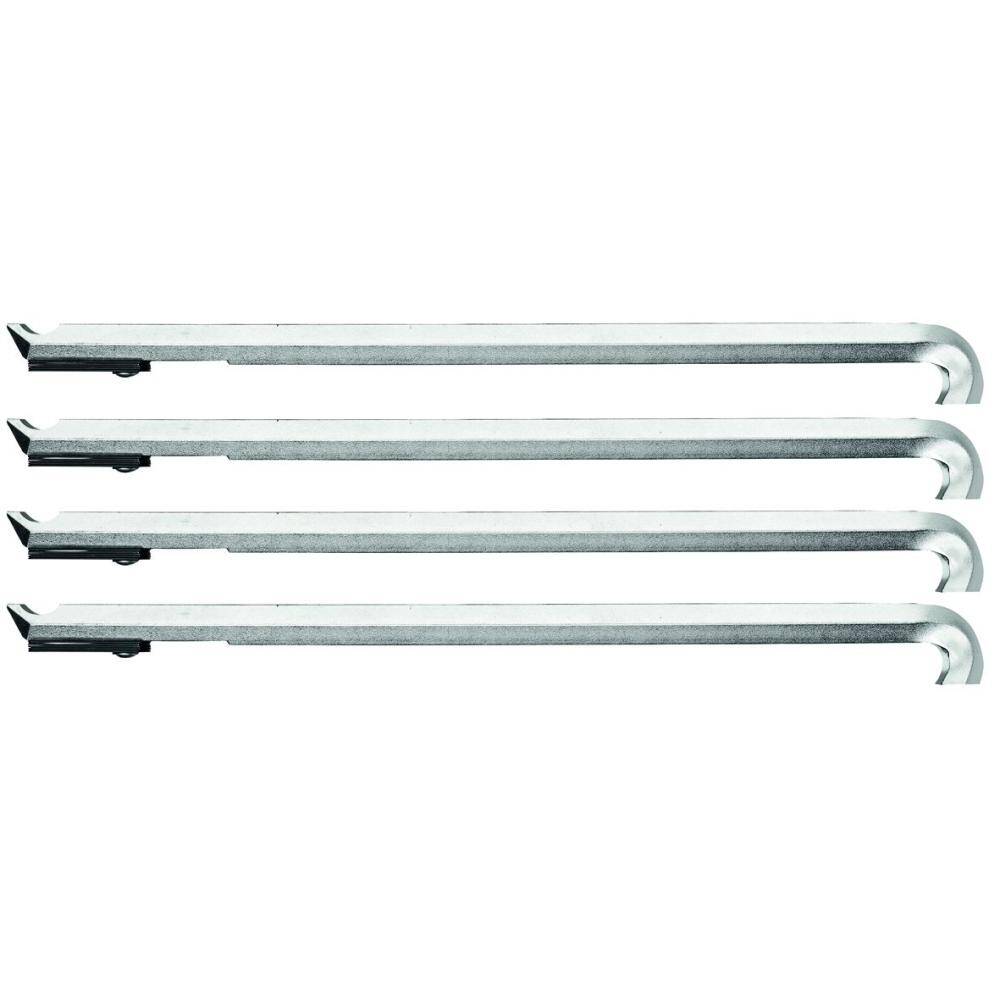

Gedore 8012240 (Series 1.29/40) Pulling legs, set of 4 pieces 235 mm

Description

• Length (L, L1):- 237 mm
• Ball Bearing Use:- 6306 6307 6404 6208 6209 6210 6307
• Width of Hooked Foot :- 11,3 mm
• Depth of Hooked Foot (d):- 10 mm
• Packing Unit:- 1 Piece
• Weight:- 0.646 kg
• Length of Hooked Foot:- 227 mm
• Length of Hooked Foot:- 199 197 mm
• Distance Inside Radius Rear Edge:- 6,4-8,9 mm
• Distance Inside Radius Rear Edge, Stepped:- 6,4 mm
• Execution Reaction Arm:- 13,1 mm
• Diameter Curvature:- R6 mm
• Use:- 1.29/3 1.29/4
