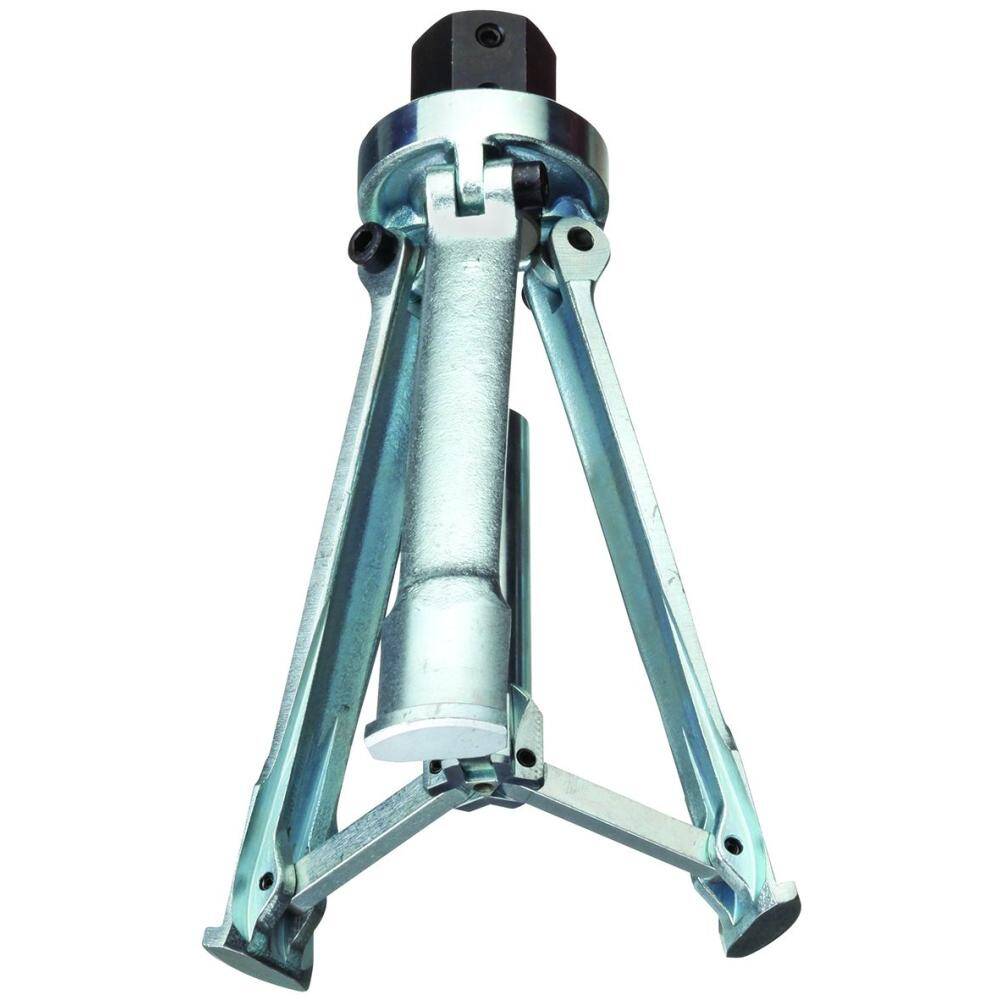

Gedore 8014100 (Series 1.30/10) Internal extractor 60-160 mm

Description

Suitable for removing large ball bearings and bearing outer races. Operation: The extraction jaws are spread by turning the nut. The newly-developed spreading system enables a simple, step-free and time-saving adjustment to the desired diameter to be made. The sharp-edged sections of the extraction jaws seat flush beneath when spread. Both internal extractors can be used with sliding hammer 1.35/3. Adapter 135/325-I M16x1,5 G 1/2″ (Code 1123750) must also be ordered if sliding hammer 1.35/3 is used.

• Width of Head (b, b1, n, W3):- 70 mm
• Height:- 269 mm
• Width Across Flat / Actuating Hexagon:- 36 mm
• Width of Hooked Foot :- 33 mm
• Depth of Hooked Foot (d):- 5 mm
• Length of Hook(ed foot) (f external):- 213 mm
• Connecting Thread:- G 1/2″
• Packing Unit:- 1 Piece
• Thickness of Hooked Foot at Tip:- 1 mm
• Weight:- 2.312 kg
• Spread Range:- 60-160 mm
• Usable Length:- 192 mm
