Gedore 8024170 (Series 1.55/2) Hydraulic press, 15 t

Description

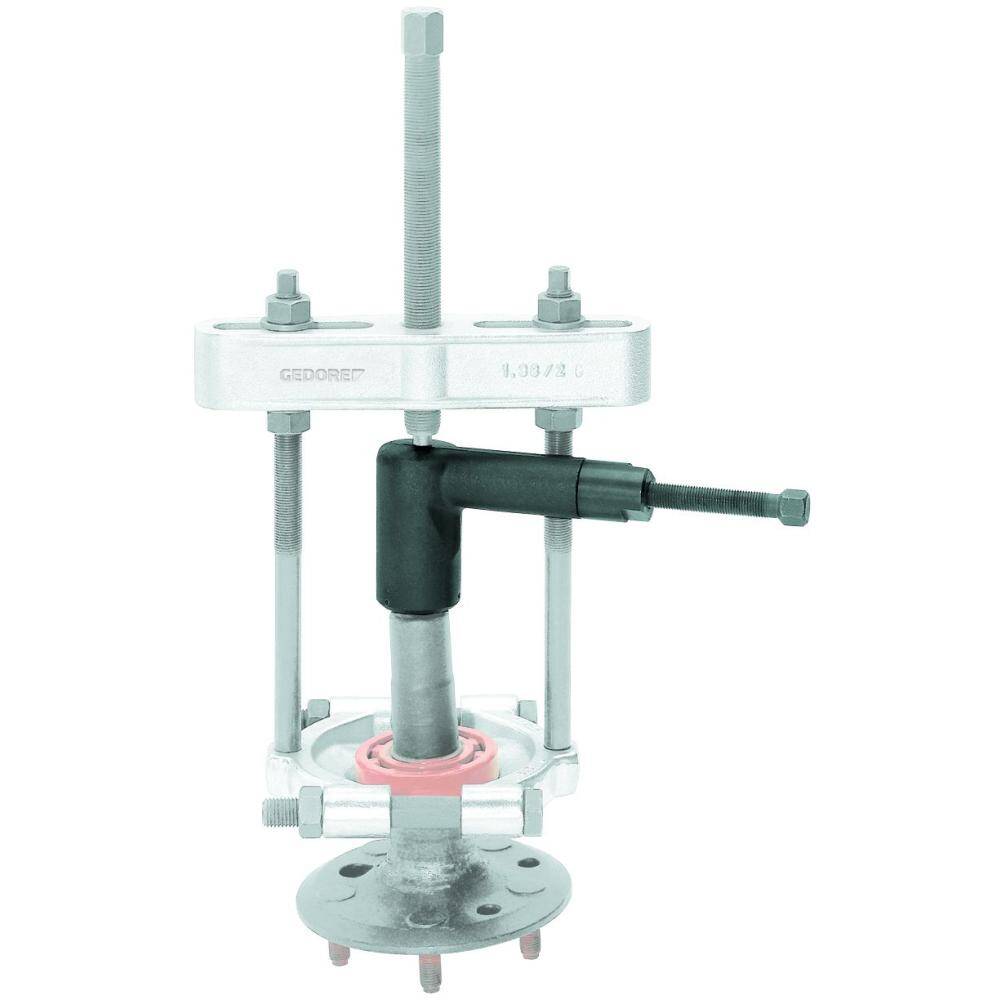

This piece of auxiliary equipment considerably increases the capability of the standard pressure spindle. Operation: With pressure released, the press is placed between the pressure spindle and the end of the shaft. The pressure spindle is then tightened firmly. Care must be taken that the centreline of the shaft, the hydraulic press, and the pressure spindle are exactly in alignment. Then the hydraulic spindle is screwed inwards. Important note: Release the hydraulic press after use.

• Stroke:- 15 mm
• Packing Unit:- 1 Piece
• Pressure t:- 15 t
• Weight:- 1.8 kg
• Installation Height:- 90 mm
