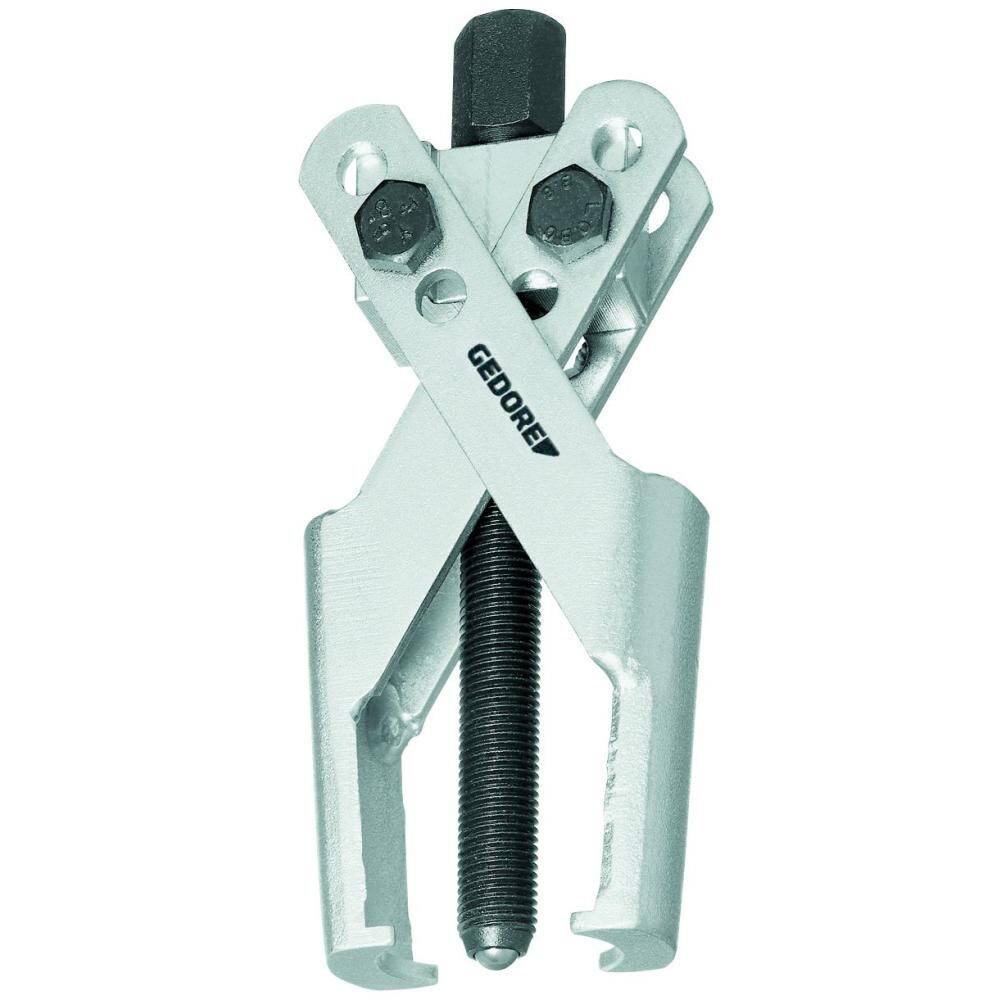

Gedore 8084580 (Series 1.23/1S) Puller 80×85 mm

Description

For removing bearings in confined spaces. The legs grip automatically. No. 1.23/S: particularly slim legs.

• Width Across Flat / Actuating Hexagon:- 12 mm
• Clamping Spread – max – External Pulling (a, a1):- 80 mm
• Spindle Size (Thread x Length):- M 10 x 105
• Width of Hooked Foot :- 11 mm
• Depth of Hooked Foot (d):- 4 mm
• Thickness of Hooked Foot at tip:- 2,5mm
• Loading Max T:- 1,5 t
• Packing Unit:- 1 Piece
• Weight:- 0.4 kg
• Clamping Reach:- 85 mm
