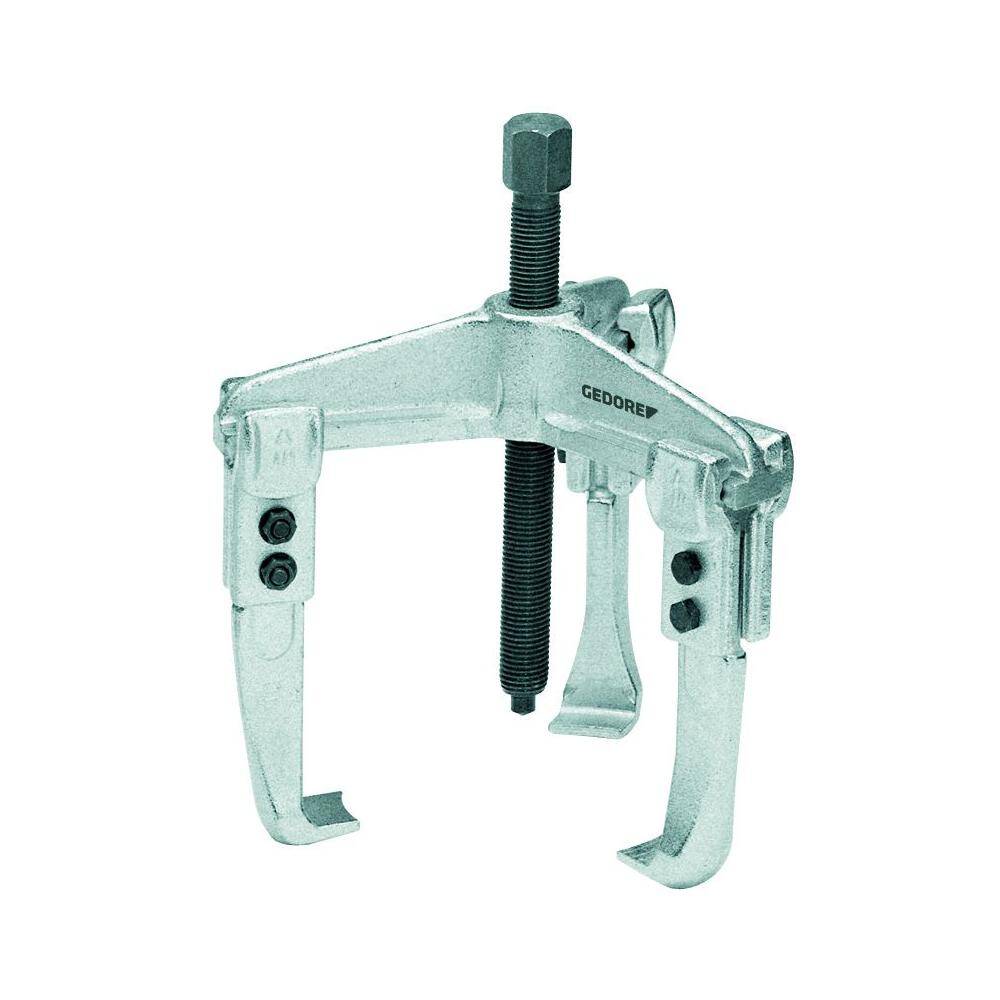

Gedore 8114160 (Series 1.07/2) Universal puller, 3-arm pattern 160×150 mm

£229.22 inc VAT

  • Width Across Flat / Actuating Hexagon:- 22 mm
  • Clamping Spread – max – External Pulling (a, a1):- 160 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 100 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 220 mm
  • Spindle Size (Thread x Length):- G 1/2 x 210
  • Width of Hooked Foot :- 30 mm
  • Depth of Hooked Foot (d):- 18 mm
  • Thickness of Hooked Foot at tip:- 3,5mm
  • Loading Max T:- 5,0 t
  • Packing Unit:- 1 Piece
  • Weight:- 3.6 kg
  • Hyraulic Spindle Optional:- 1.06/HSP1
  • Clamping Reach:- 150 mm

Usually despatched from Germany

SKU: HYDBA8114160 Category:

Description

Even load distribution over 3 legs ensures secure grip and balanced pull. By reversing the legs, this tool can be used as an internal or external puller. Extra or replacement legs increase versatility. Upgradeable with hydraulic spindle (see table).

  • Width Across Flat / Actuating Hexagon:- 22 mm
  • Clamping Spread – max – External Pulling (a, a1):- 160 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 100 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 220 mm
  • Spindle Size (Thread x Length):- G 1/2 x 210
  • Width of Hooked Foot :- 30 mm
  • Depth of Hooked Foot (d):- 18 mm
  • Thickness of Hooked Foot at tip:- 3,5mm
  • Loading Max T:- 5,0 t
  • Packing Unit:- 1 Piece
  • Weight:- 3.6 kg
  • Hyraulic Spindle Optional:- 1.06/HSP1
  • Clamping Reach:- 150 mm

Additional information

Weight 3.6 kg
Weight

EAN

Product Condition

Brand

Gedore

MPN
