Gedore 8117340 (Series 1.07/K) Puller set with 9 legs 130×100/200/250 mm

Description

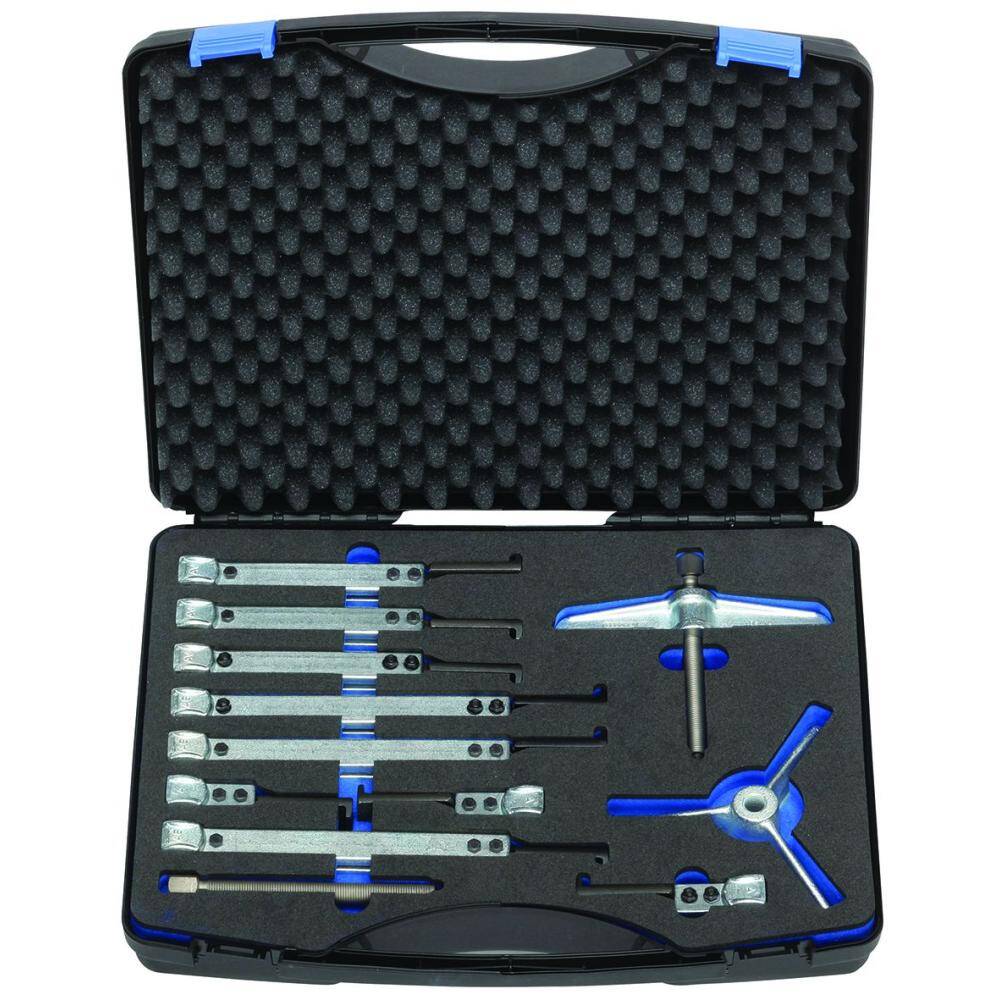

In plastic case. Contents: 1 spindle, 1 cross-beam each 2- and 3-arm pattern and 9 slim pulling legs in 3 lengths. Second spindle in the set 1.07/K safes working time. 1.07/K-2 insert with nubs on both sides.

• Width Across Flat / Actuating Hexagon:- 17 mm
• Clamping Spread – max – External Pulling (a, a1):- 130 mm
• Spindle Size (Thread x Length):- M 14×1,5 x 140
• Width of Hooked Foot :- 27 mm
• Depth of Hooked Foot (d):- 7,5 mm
• Thickness of Hooked Foot at tip:- 3,7mm
• Loading Max T:- 2,5 t
• Packing Unit:- 1 Piece
• Weight:- 5.8 kg
• Clamping Reach:- 100 / 200 / 250 mm
