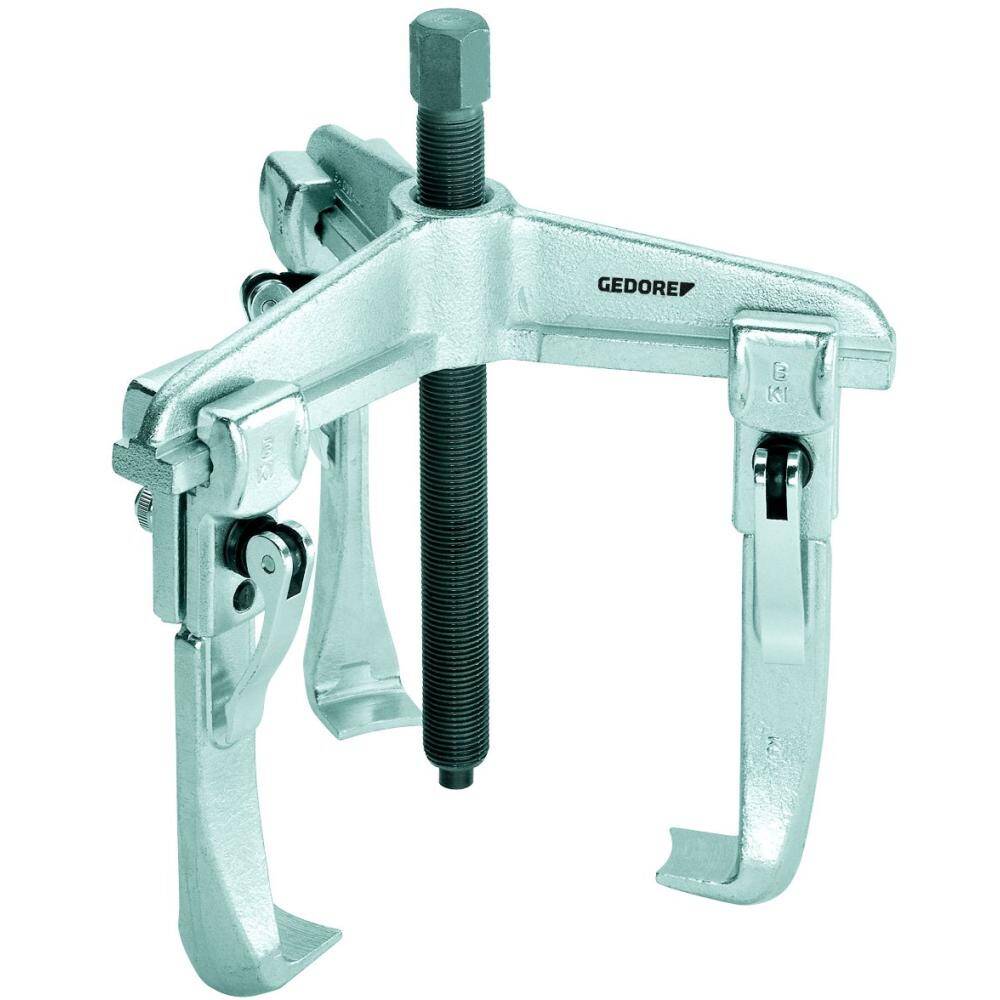

Gedore 1227459 (Series 1.07/2A-E) Quick-release puller, 3-arm pattern 200×150 mm

£405.55 £239.28 inc VAT

  • Width Across Flat / Actuating Hexagon:- 22 mm
  • Clamping Spread – max – External Pulling (a, a1):- 200 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 100 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 260 mm
  • Spindle Size (Thread x Length):- G 1/2 x 210
  • Width of Hooked Foot :- 30 mm
  • Depth of Hooked Foot (d):- 18 mm
  • Thickness of Hooked Foot at tip:- 3,5mm
  • Loading Max T:- 5,0 t
  • Packing Unit:- 1 Piece
  • Weight:- 4 kg
  • Hyraulic Spindle Optional:- 1.06/HSP1
  • Clamping Reach:- 150 mm

Shipped from Germany (usually just a few days to the UK)

SKU: HYDBA1227459 Categories: ,

Description

Quick release legs for fast, easy set-up and adjustment. By reversing the legs, this tool can be used as an internal or external puller. Upgradeable with hydraulic spindle (see table).

  • Width Across Flat / Actuating Hexagon:- 22 mm
  • Clamping Spread – max – External Pulling (a, a1):- 200 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 100 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 260 mm
  • Spindle Size (Thread x Length):- G 1/2 x 210
  • Width of Hooked Foot :- 30 mm
  • Depth of Hooked Foot (d):- 18 mm
  • Thickness of Hooked Foot at tip:- 3,5mm
  • Loading Max T:- 5,0 t
  • Packing Unit:- 1 Piece
  • Weight:- 4 kg
  • Hyraulic Spindle Optional:- 1.06/HSP1
  • Clamping Reach:- 150 mm

Additional information

Weight 4 kg
Weight

EAN

Product Condition

Brand

Gedore

MPN
