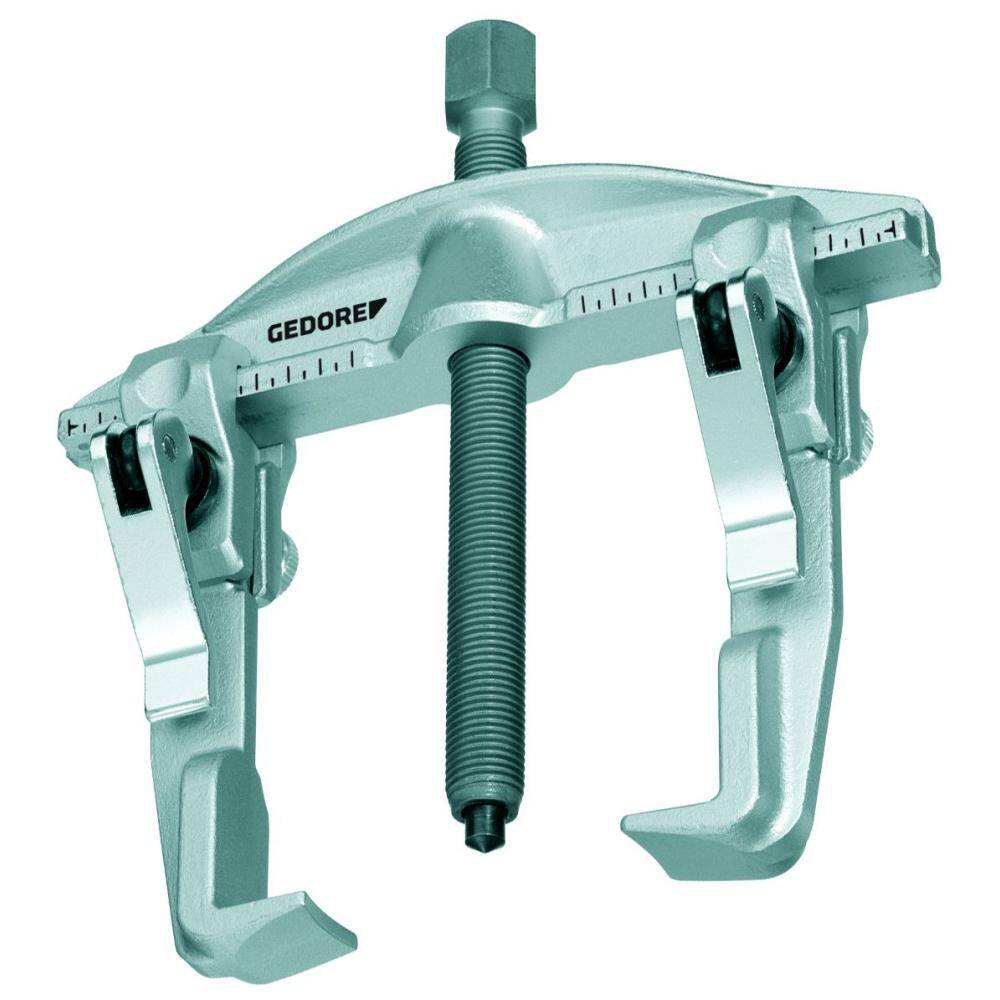

Gedore 1307703 (Series 1.04/1A) Puller, 2-arm pattern 130×100 mm

£175.92 £103.79 inc VAT

  • Width Across Flat / Actuating Hexagon:- 17 mm
  • Clamping Spread – max – External Pulling (a, a1):- 130 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 70 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 170 mm
  • Spindle Size (Thread x Length):- M 14×1,5 x 140
  • Width of Hooked Foot :- 22 mm
  • Depth of Hooked Foot (d):- 12 mm
  • Thickness of Hooked Foot at tip:- 3,0mm
  • Loading Max T:- 3,0 t
  • Scale Divisions:- x
  • Packing Unit:- 1 Piece
  • Weight:- 1.2 kg
  • Clamping Reach:- 100 mm

Shipped from Germany (usually just a few days to the UK)

SKU: HYDBA1307703 Categories: ,

Description

For the safe and quick removal of pulleys, wheels, ball bearings, etc. Strong drop forged pattern. Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work. Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required. The quick-action adjustment feature supports the energy-saving and fast operation. Spindle with replaceable ball and tip point. Upgradeable with hydraulic spindle (see table).

  • Width Across Flat / Actuating Hexagon:- 17 mm
  • Clamping Spread – max – External Pulling (a, a1):- 130 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 70 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 170 mm
  • Spindle Size (Thread x Length):- M 14×1,5 x 140
  • Width of Hooked Foot :- 22 mm
  • Depth of Hooked Foot (d):- 12 mm
  • Thickness of Hooked Foot at tip:- 3,0mm
  • Loading Max T:- 3,0 t
  • Scale Divisions:- x
  • Packing Unit:- 1 Piece
  • Weight:- 1.2 kg
  • Clamping Reach:- 100 mm
