Description

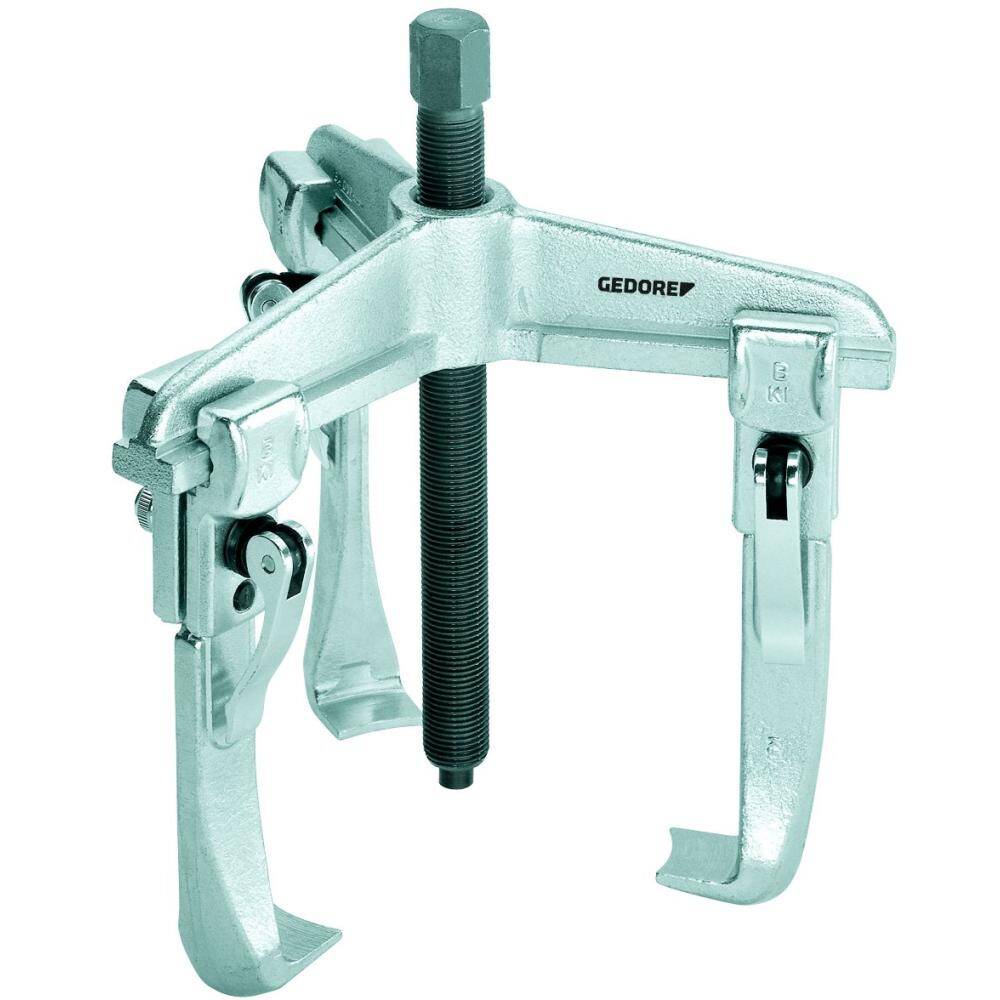

Quick release legs for fast, easy set-up and adjustment. By reversing the legs, this tool can be used as an internal or external puller. Upgradeable with hydraulic spindle (see table).
- Width Across Flat / Actuating Hexagon:- 27 mm
- Clamping Spread – max – External Pulling (a, a1):- 250 mm
- Clamping Spread – Min – Internal Pulling (a2):- 100 mm
- Clamping Spread – Max – Internal Pulling (a2):- 400 mm
- Spindle Size (Thread x Length):- G 3/4 x 280
- Width of Hooked Foot :- 36 mm
- Depth of Hooked Foot (d):- 28 mm
- Thickness of Hooked Foot at tip:- 6,5mm
- Loading Max T:- 7,5 t
- Packing Unit:- 1 Piece
- Weight:- 9.2 kg
- Hyraulic Spindle Optional:- 1.06/HSP2
- Clamping Reach:- 200 mm
