Description

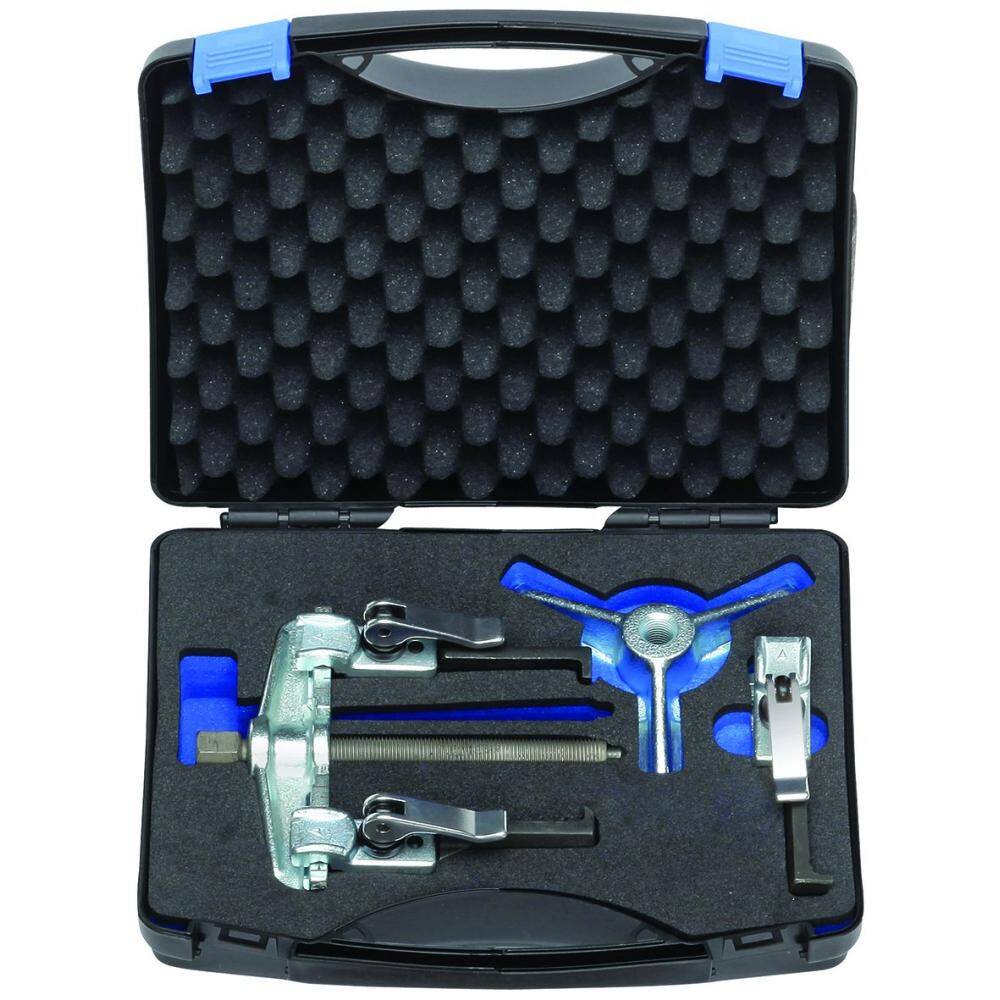

In plastic case. Contents: 1 spindle, 1 cross-beam each 2- and 3-arm pattern and 3 quick-release pulling legs. Second spindle in the set 1.07/K-1-SE safes working time.
- Width Across Flat / Actuating Hexagon:- 22 mm
- Clamping Spread – max – External Pulling (a, a1):- 160 mm
- Spindle Size (Thread x Length):- G 1/2 x 210
- Width of Hooked Foot :- 40 mm
- Depth of Hooked Foot (d):- 7,0 mm
- Thickness of Hooked Foot at tip:- 5,0mm
- Loading Max T:- 5,0 t
- Packing Unit:- 1 Piece
- Weight:- 5.5 kg
- Hyraulic Spindle Optional:- 1.06/HSP1
- Clamping Reach:- 150 mm
