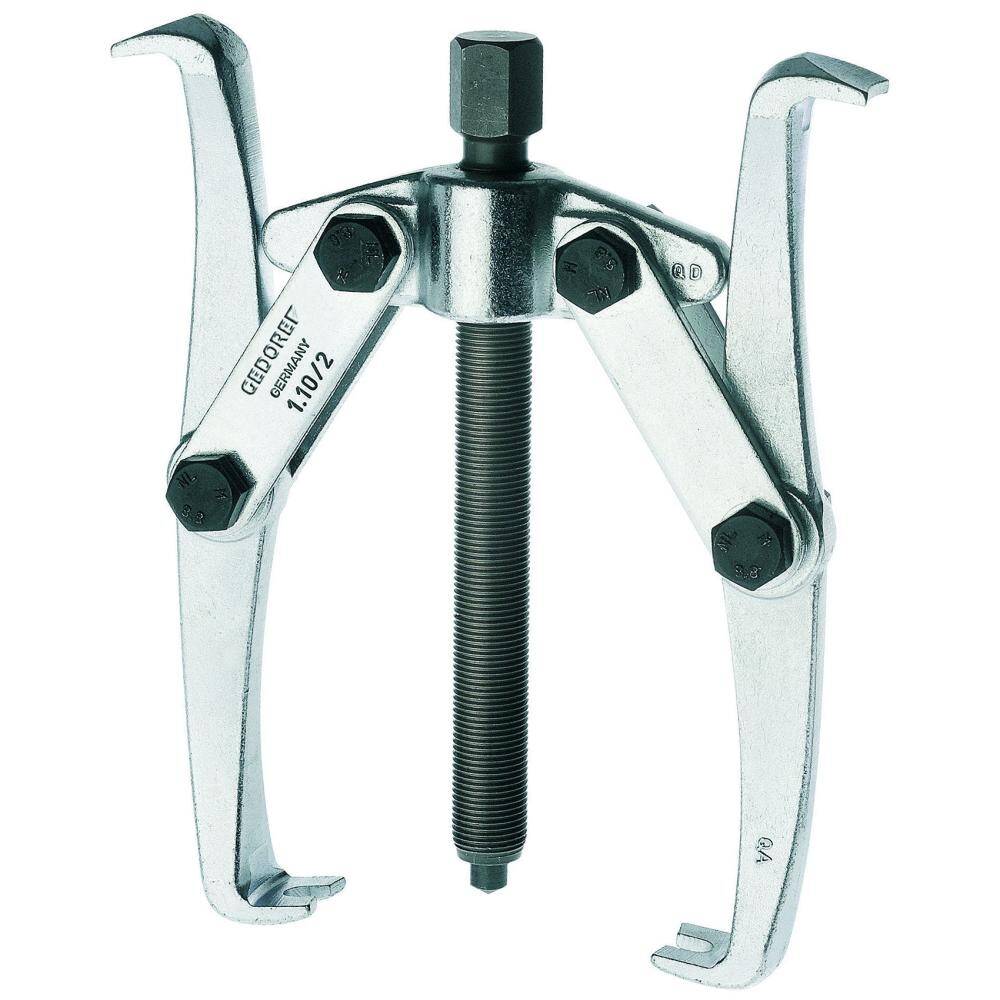

Gedore 1731882 (Series 1.10/4) Puller, 2-arm pattern 320×260 mm

Description

The reliable, heavy-duty model for the removal of pulleys, wheels, ball bearings, etc. The double leg ends, wide or narrow, grip automatically. The wide leg ends of the puller 1.10/2, /3, /4 and /5 possess 8 mm slots, so that pulleys or gears may also be pulled off using 8 mm bolts.

• Width Across Flat / Actuating Hexagon:- 22 mm
• Clamping Spread – max – External Pulling (a, a1):- 320 mm
• Spindle Size (Thread x Length):- G 1/2 x 350
• Width of Hooked Foot :- 27 mm
• Depth of Hooked Foot (d):- 27 mm
• Thickness of Hooked Foot at tip:- 6,5mm
• Loading Max T:- 8,0 t
• Width of Hooked Foot (c2):- 32 mm
• Packing Unit:- 1 Piece
• Weight:- 5.1 kg
• Hyraulic Spindle Optional:- 1.06/HSP1
• Clamping Reach:- 260 mm
