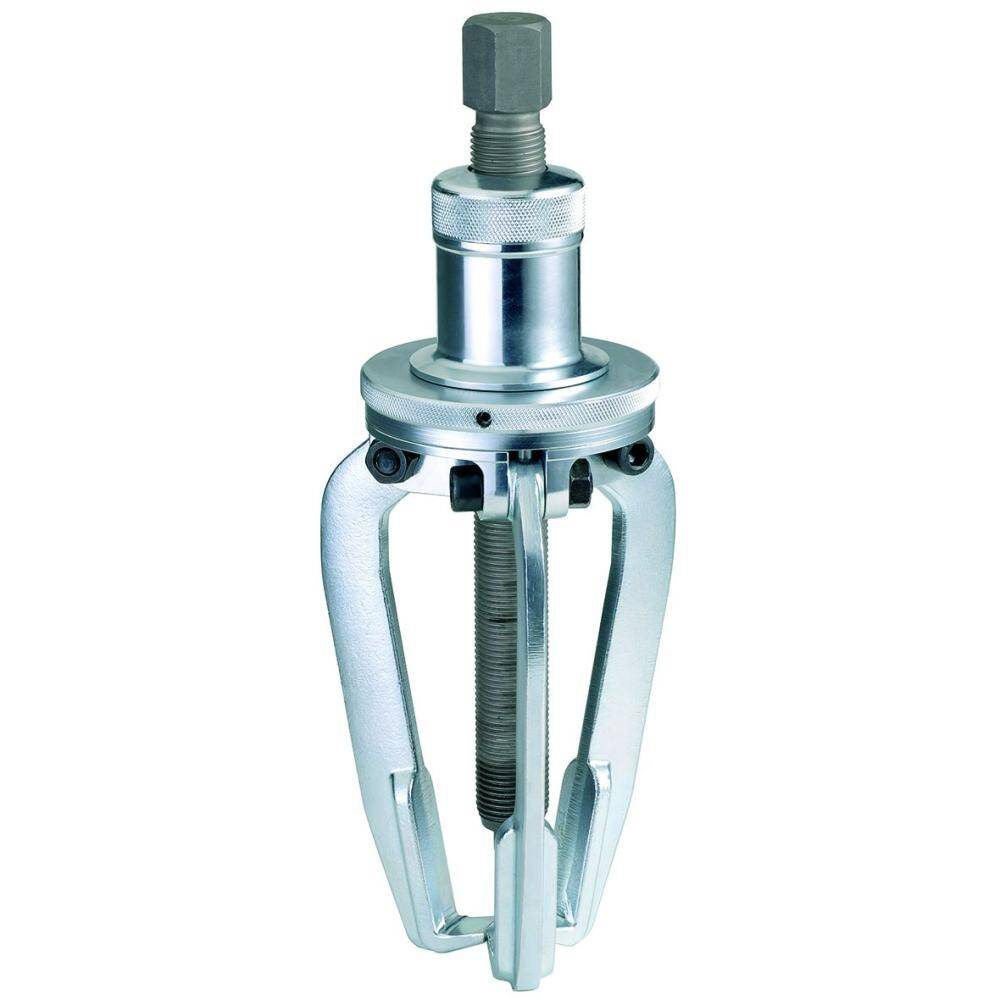

Gedore 1748181 (Series 1.09/2) Puller TWIST+PULL, 3-arm pattern, with rotating adjustment 80×250 mm

Description

The precise manufactured head allows fast and exact use. The legs open by simple rotation and enclose automatically the part to be removed. No more time-consuming set-up and readjusting of the legs. High-quality steel and thermo-chemical treatment guarantee highest toughness of the spindle and the legs. Ball or tip can easily be exchanged.

• Width Across Flat / Actuating Hexagon:- 22 mm
• Clamping Spread – Min – Internal Pulling (a2):- 80 mm
• Clamping Spread – Max – Internal Pulling (a2):- 250 mm
• Spindle Size (Thread x Length):- G 1/2 x 350
• Width of Hooked Foot :- 24 mm
• Depth of Hooked Foot (d):- 12 mm
• Thickness of Hooked Foot at tip:- 3,0mm
• Loading Max T:- 6,5 t
• Packing Unit:- 1 Piece
• Weight:- 4.2 kg
• Clamping Reach:- 250 mm
