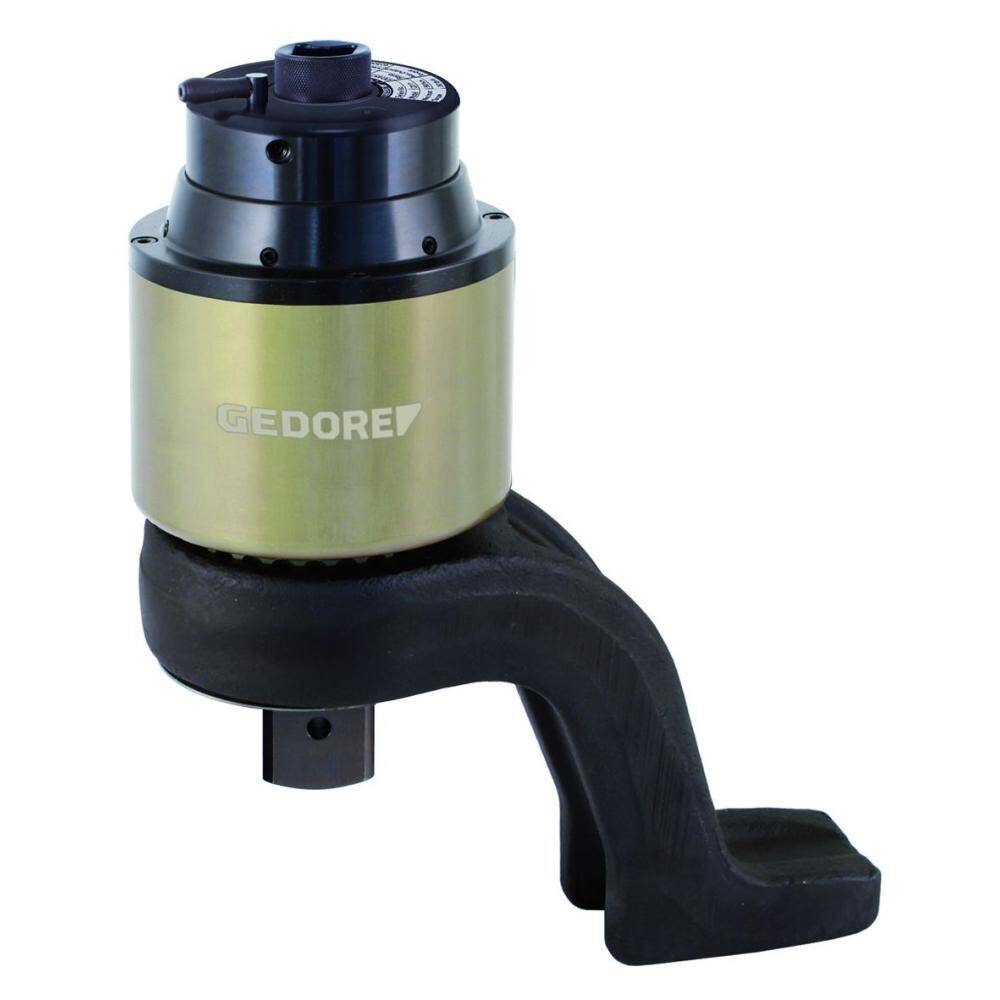

Gedore 2653125 (Series DVV-80ZRS) Torque Multiplier DREMOPLUS ALU 8000 Nm

£7,819.02 inc VAT

  • Output Torque (max. Nm):- 8000 N·m
  • Input Torque (max. Nm):- 420 N·m
  • Output Torque (Max. lbf.ft):- 5870 lbf·ft
  • Packing Unit:- 1 Piece
  • Distance from Drive to Beginning of Reaction Arm (min.):- 110 mm
  • Distance from Drive to End of Reaction Arm (max.):- 190 mm
  • Total Height with Reaction Arm (min.):- 338 mm
  • Total Height with Reaction Arm (max.):- 342 mm
  • Weight:- 13.4 kg
  • Width of Torque Multiplier:- 128 mm
  • Height of Torque Multiplier:- 277 mm
  • Input Torque lbf.ft:- 310 lbf·ft

Usually despatched from Germany

SKU: HYD2653125 Category:

Description

Particularly suitable for Machinery and plant engineering. Cable cars, lifts and masts. Heavy industry, construction sites. Bridge construction. Shipbuilding, aircraft and railway construction. Refineries, plastics industry. Power plants of all kinds Features:. Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections. With a two-stage planet gear. High-performance aluminium housing. Torque multiplication ratio: 1:18, 1:22, 1:28.5, 1:39. All models with anti-wind-up ratchet (RS). With non-destructive “Slipper” overload safety mechanism for gear protection – clockwise and anticlockwise. Z-form, offset reaction arm depending on model made of chrome-vanadium steel. Can be optionally retrofitted with L-form straight reaction arm – with adjustable reaction arm – of lightweight metal. Guaranteed accuracy: Better than /- 3 % tolerance. For operation in combination with a torque wrench. 4 models for maximum load in the range between max. 6000 N·m and max. 13000 N·m. Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:. Torque Multiplier DREMOPLUS ALU. With Z-form offset reaction arm. Delivery in sturdy shipping case with foam insert. Factory test certificate and setting table. Detailed technical information is available on request.

  • Output Torque (max. Nm):- 8000 N·m
  • Input Torque (max. Nm):- 420 N·m
  • Output Torque (Max. lbf.ft):- 5870 lbf·ft
  • Packing Unit:- 1 Piece
  • Distance from Drive to Beginning of Reaction Arm (min.):- 110 mm
  • Distance from Drive to End of Reaction Arm (max.):- 190 mm
  • Total Height with Reaction Arm (min.):- 338 mm
  • Total Height with Reaction Arm (max.):- 342 mm
  • Weight:- 13.4 kg
  • Width of Torque Multiplier:- 128 mm
  • Height of Torque Multiplier:- 277 mm
  • Input Torque lbf.ft:- 310 lbf·ft

Additional information

Weight 13.4 kg
Weight

EAN

Customs Tariff

Brand

Gedore

MPN
