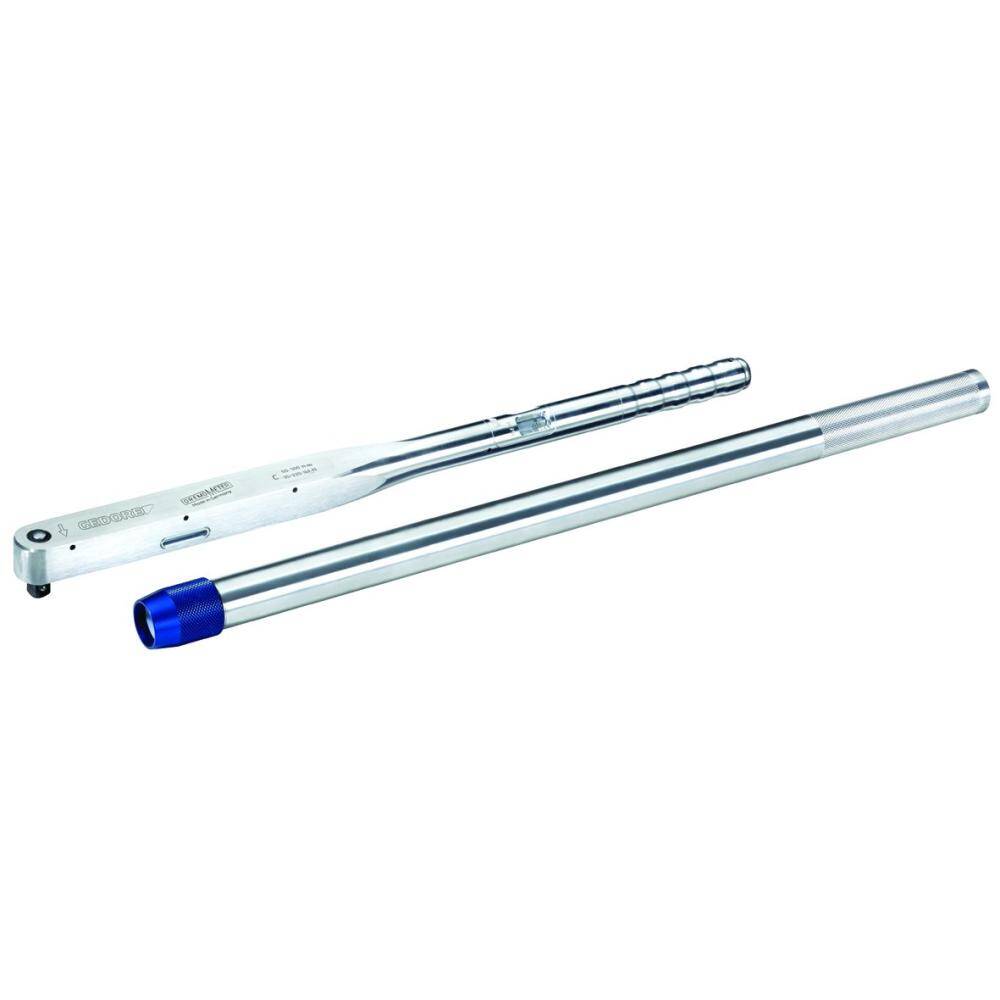

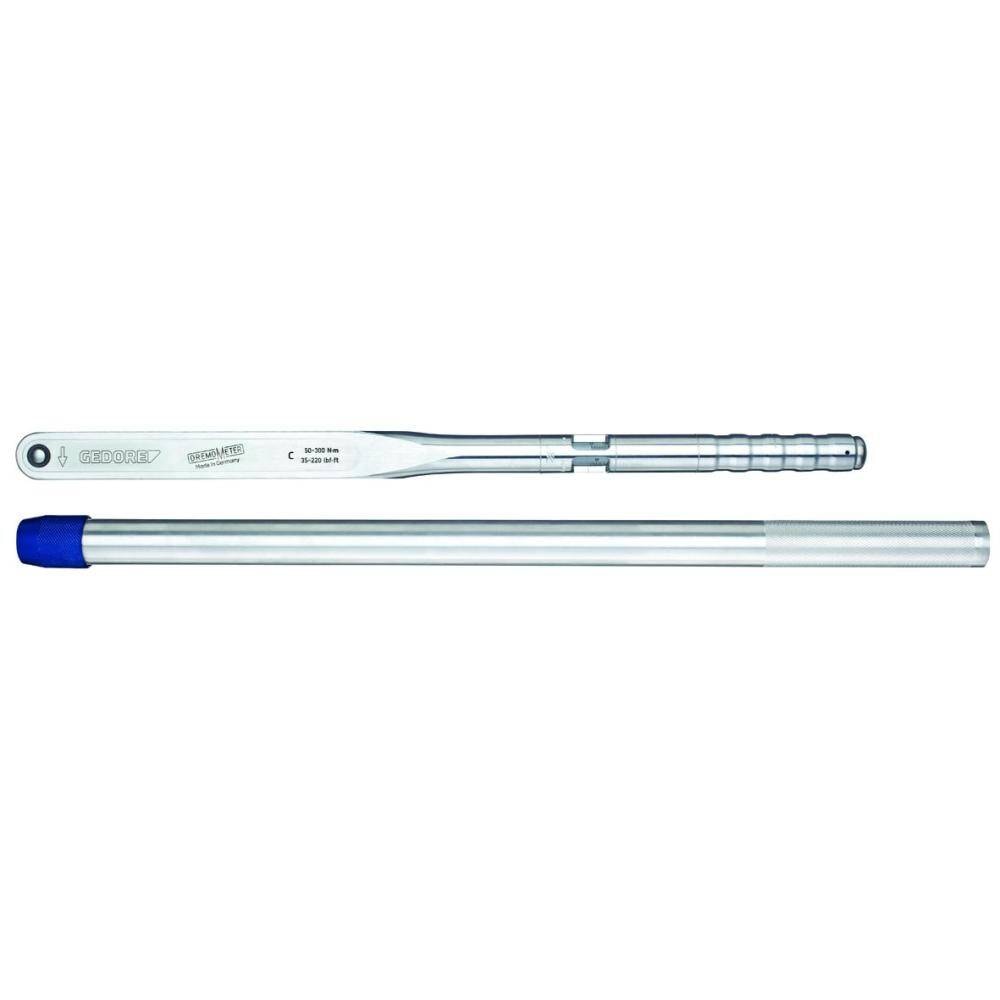

Gedore 2926997 (Series 8562-001) Torque wrench DREMOMETER CR 1/2″ 60-300 Nm, with ALU extension tube

Description

Controlled screw tightening in the range 60-300 N·m / 45-220 lbf·ft. For use in almost all industrial manufacturing areas Features:. Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: /- 3 % tolerance of scale set torque. The specification of the standard ( /- 4 %) is exceeded. 1/2″ square drive with ball locking device DIN 3120 – A 12.5, ISO 1174. Automatic short-path actuation with tactile impulse and audible signal. Dual scale with a scale graduation of 5 N·m and 5 lbf·ft. With push-button release Technical advantage/Function:. Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly. No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user’s working load. Extremely low wear attributable to reduced forces in a unique lever mechanism. Forged lever chain from our own quality forge. Maximum precision even when subjected to extreme continuous use. Long life cycles and tool lives. Easy operation – fast and safe torque tightening. Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle. Single- and double-square drive for controlled bi-directional tightening.

• Length (L, L1):- 617 mm
• Height:- 30 mm
• Drive Connector Square (Male):- 1/2 inch
• Scale Divisions:- 5 N·m / 5 lbf·ft
• Range of Work / Measurement Nm (min/max):- 60-300 N·m
• Range of Work / Measurement lbf.ft (Min/Max):- 45-220 lbf·ft
• Packing Unit:- 1 Piece
• Distance from Middle of Handgrip to Pivot Point:- 529 mm
• Distance from Housing to Square Drive:- 17,5 mm
• Extension Tube Y/N:- 8577-700
• Weight:- 2.7 kg
• Drive Connector Square (Male) Nominal Size:- 12,5 mm
