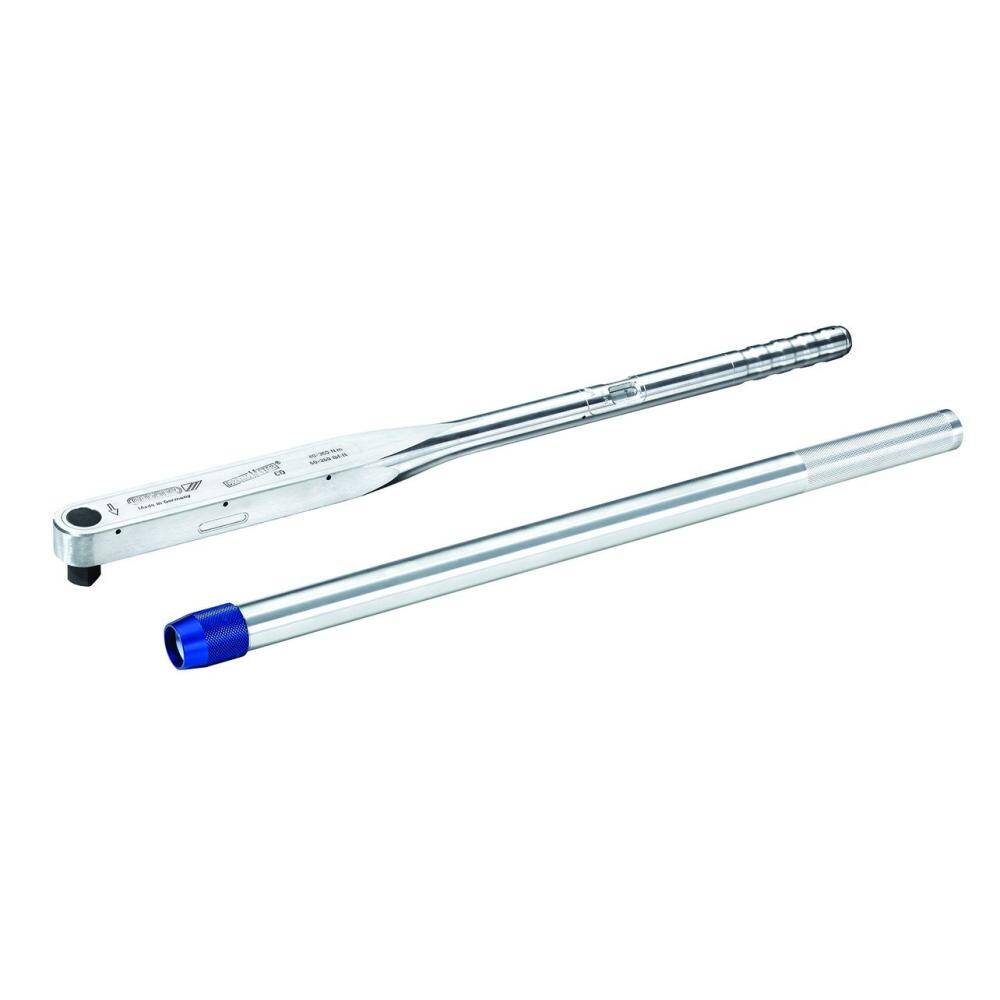

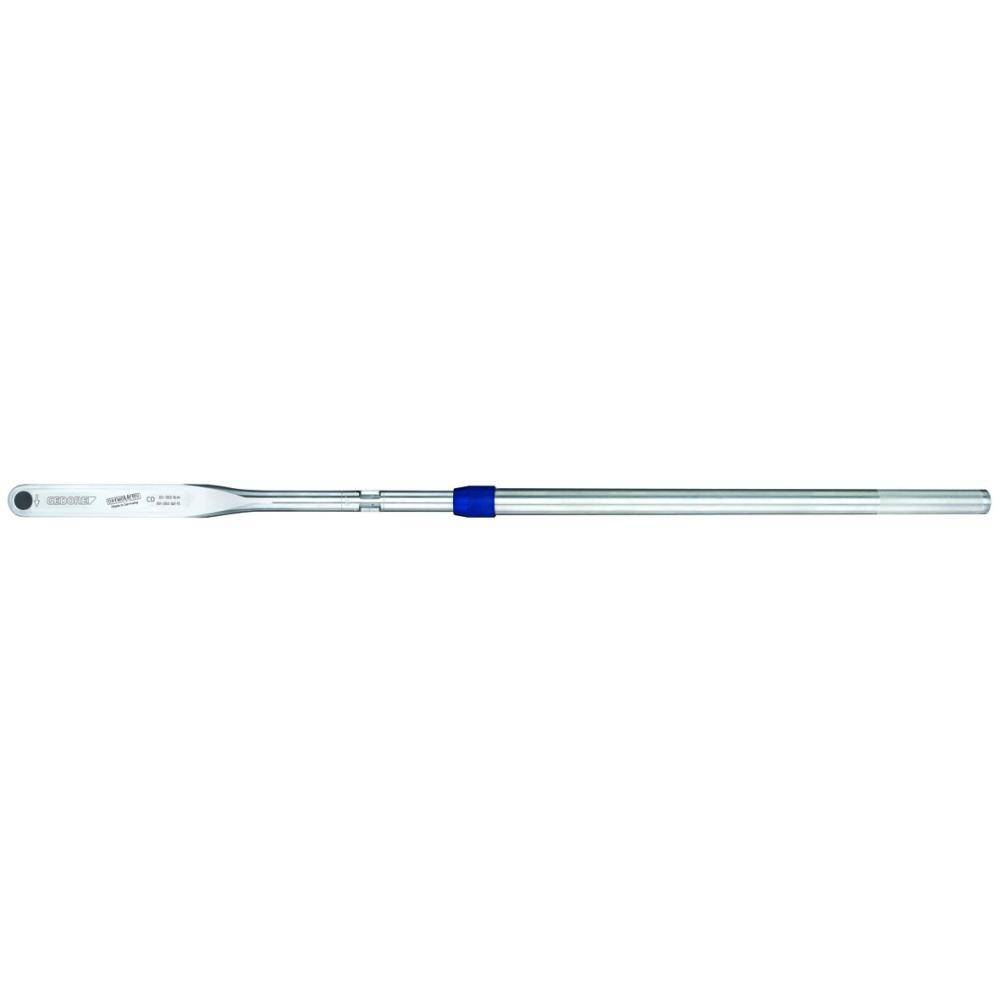

Gedore 2927004 (Series 8570-001) Torque wrench DREMOMETER CDR 3/4″ 80-360 Nm, with ALU extension tube

£938.10 £750.48 inc VAT

  • Length (L, L1):- 717 mm
  • Height:- 30 mm
  • Drive Connector Square (Male):- 3/4 inch
  • Scale Divisions:- 5 N·m / 5 lbf·ft
  • Range of Work / Measurement Nm (min/max):- 80-360 N·m
  • Range of Work / Measurement lbf.ft (Min/Max):- 60-260 lbf·ft
  • Packing Unit:- 1 Piece
  • Distance from Middle of Handgrip to Pivot Point:- 624 mm
  • Distance from Housing to Square Drive:- 22,5 mm
  • Extension Tube Y/N:- 8577-700
  • Weight:- 3.1 kg
  • Drive Connector Square (Male) Nominal Size:- 20 mm

Shipped from Germany (usually just a few days to the UK)

SKU: HYD2927004 Category:

Description

Controlled screw tightening in the range 80-360 N·m / 60-260 lbf·ft. For use in almost all industrial manufacturing areas Features:. Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: /- 3 % tolerance of scale set torque. The specification of the standard ( /- 4 %) is exceeded. 3/4″ square drive with pin-locking mechanism as per DIN 3120 – B 20, ISO 1174. Automatic short-path actuation with tactile impulse and audible signal. Dual scale with a scale graduation of 5 N·m and 5 lbf·ft Technical advantage/Function:. Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly. No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user’s working load. Extremely low wear attributable to reduced forces in a unique lever mechanism. Forged lever chain from our own quality forge. Maximum precision even when subjected to extreme continuous use. Long life cycles and tool lives. Easy operation – fast and safe torque tightening. Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle. Single- and double-square drive for controlled bi-directional tightening.

  • Length (L, L1):- 717 mm
  • Height:- 30 mm
  • Drive Connector Square (Male):- 3/4 inch
  • Scale Divisions:- 5 N·m / 5 lbf·ft
  • Range of Work / Measurement Nm (min/max):- 80-360 N·m
  • Range of Work / Measurement lbf.ft (Min/Max):- 60-260 lbf·ft
  • Packing Unit:- 1 Piece
  • Distance from Middle of Handgrip to Pivot Point:- 624 mm
  • Distance from Housing to Square Drive:- 22,5 mm
  • Extension Tube Y/N:- 8577-700
  • Weight:- 3.1 kg
  • Drive Connector Square (Male) Nominal Size:- 20 mm

Additional information

Weight 3.1 kg
Dimensions 717 cm
Weight

EAN

Torque Range Nm

Drive Connector

Length

Customs Tariff

Brand

Gedore

MPN
