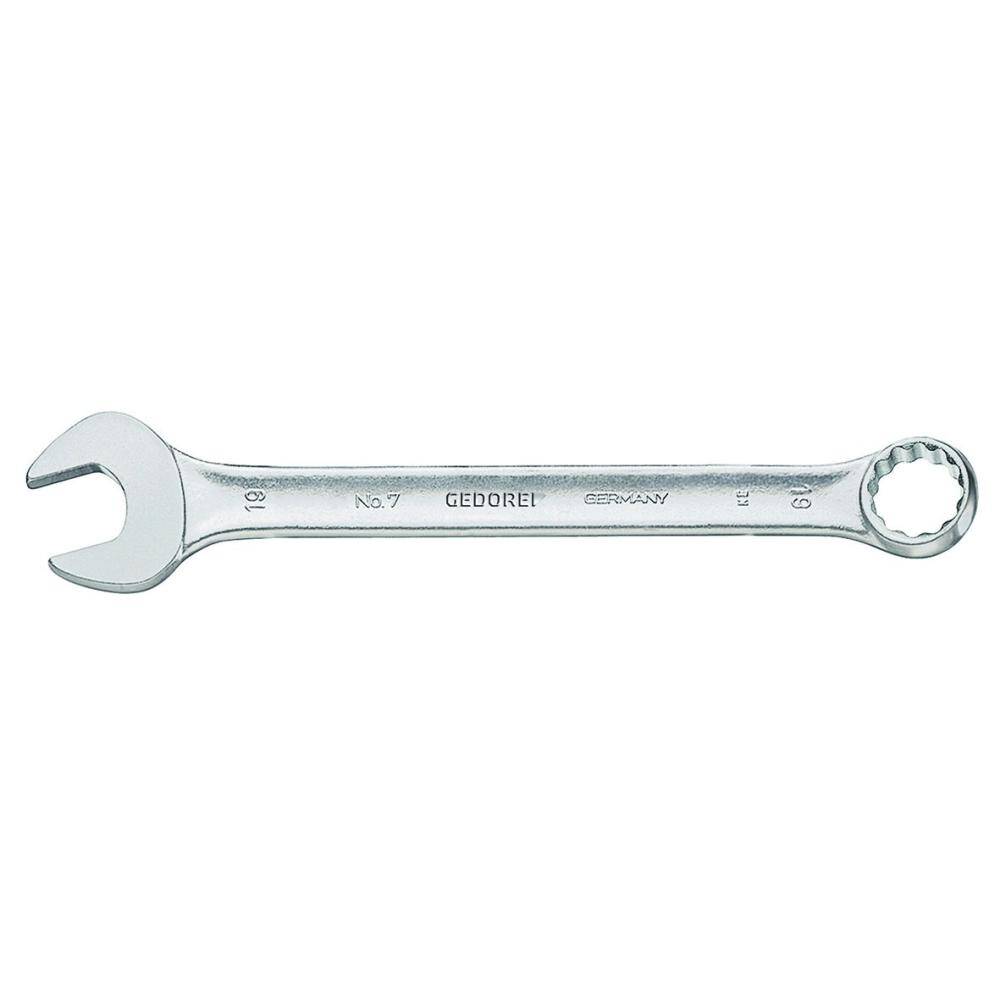

Gedore 6090210 (Series 7 12) Combination spanner 12 mm

Description

Acc. to DIN 3113 Form A, ISO 3318, ISO 7738. Ring 15° offset from shaft, shaft in girder pattern. Sizes 3 to 5.5 with hexagon ring, up from size 6 with UD profile. Gedore vanadium steel 31CrV3, chrome-plated. * not standardised.

• Length (L, L1):- 160 mm
• Width Across Flat:- 12,0 mm
• Width of Head (b, b1, n, W3):- 18,5 mm
• Width of Head (b2):- 27,5 mm
• Height of Head (a, a1, b, h, L2, t):- 7,5 mm
• Height of Head (a2):- 4,8 mm
• Packing Unit:- 10 Piece
• Weight:- 0.05 kg
