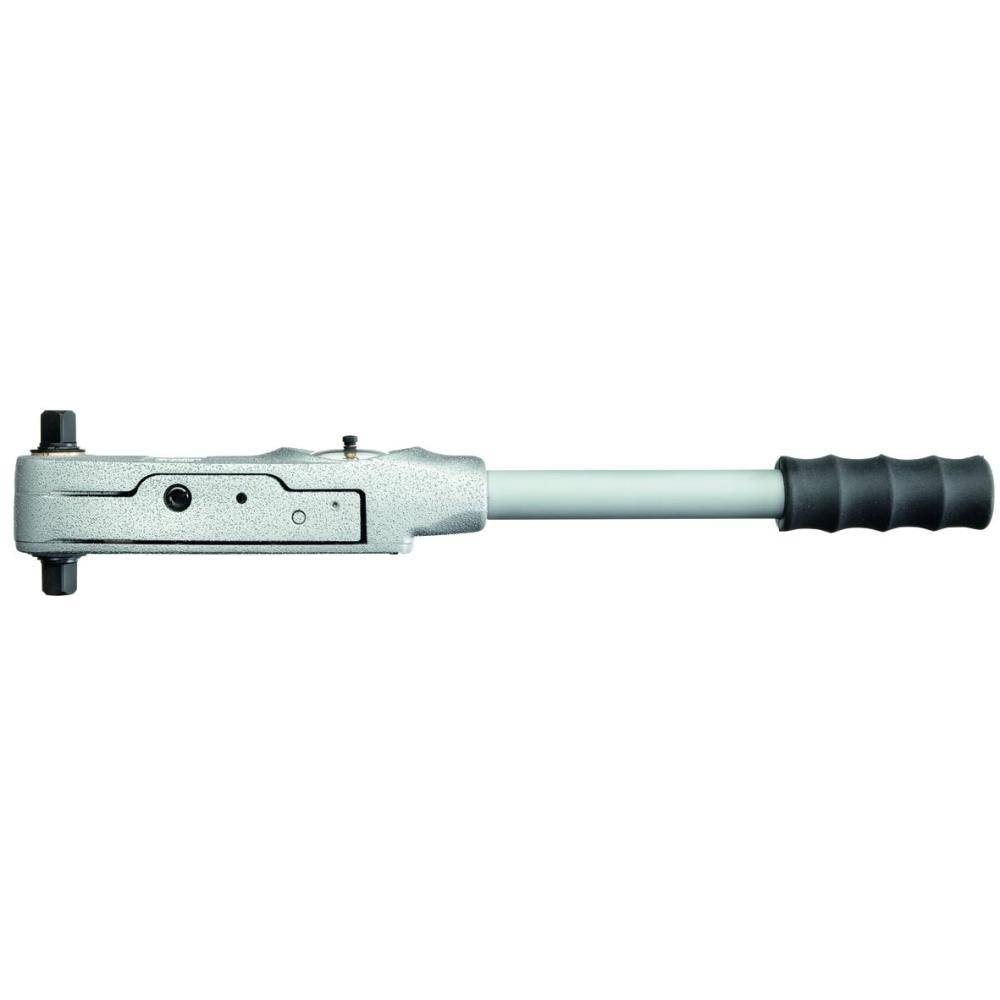

Gedore 7651710 (Series 8302-08) Dial measuring torque wrench Type 83 16-80 Nm

Description

Controlled tightening and verification of tightening values. For use in all areas of industrial manufacturing and in quality control. Working ranges of 0.8 to 2000 N·m are covered Features:. Dial-indicating torque wrench with dual scale and multi-functional slave pointer. 1/4″, 3/8″, 1/2″, 3/4″ or 1″ double-square drive with ball locking device for controlled bi-directional tightening. Models 8301-04 to 8304-80: With integrated ratchet-function. For controlled screw tightening and torque measurements. Working accuracy: /- 4 % tolerance of the indicated torque. Acc. to DIN EN ISO 6789, traceable to national standards. With dual scale in N·m and lbf·in or lbf·ft double-tinted clearly readable face. Integrated overload protection – mechanical stop up to max. 25 % overload of the maximum value. Housing made of lightweight, robust special aluminium construction – lacquered, silver-grey. Black, non-slip rubber handgrips. Models 8301-04 to 8301-40: EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications. Audio-visual signal is standard on models 8303-40 to 8305-20 Scope of delivery:. Dial-measuring torque wrench type 83. Battery (models 8303-40 to 8305-20). Test certificate acc. to DIN EN ISO 6789. Delivered in a sturdy black plastic box (no. 8301-04 to 8302-20), otherwise in sturdy cardboard packaging (no. 8303-40 to 8305-20).

• Length (L, L1):- 435 mm
• Height:- 86 mm
• Drive Connector Square (Male):- 1/2 inch
• Scale Divisions:- 2 N·m / 1 lbf·ft
• Range of Work / Measurement Nm (min/max):- 16-80 N·m
• Range of Work / Measurement lbf.ft (Min/Max):- 12-60 lbf·ft
• Packing Unit:- 1 Piece
• Weight:- 1.4 kg
• Drive Connector Square (Male) Nominal Size:- 12,5 mm
