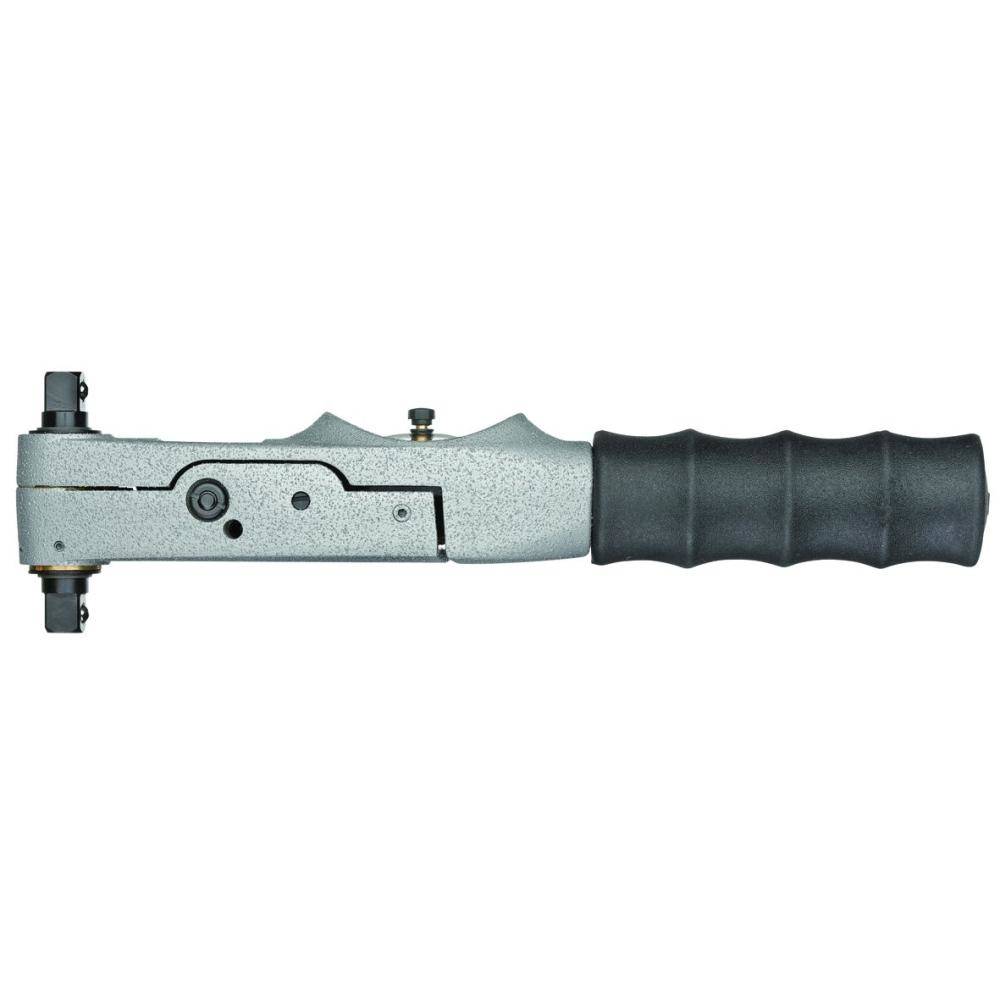

Gedore 7651980 (Series 8302-20) Dial measuring torque wrench Type 83 40-200 Nm

Description

Controlled tightening and verification of tightening values. For use in all areas of industrial manufacturing and in quality control. Working ranges of 0.8 to 2000 N·m are covered Features:. Dial-indicating torque wrench with dual scale and multi-functional slave pointer. 1/4″, 3/8″, 1/2″, 3/4″ or 1″ double-square drive with ball locking device for controlled bi-directional tightening. Models 8301-04 to 8304-80: With integrated ratchet-function. For controlled screw tightening and torque measurements. Working accuracy: /- 4 % tolerance of the indicated torque. Acc. to DIN EN ISO 6789, traceable to national standards. With dual scale in N·m and lbf·in or lbf·ft double-tinted clearly readable face. Integrated overload protection – mechanical stop up to max. 25 % overload of the maximum value. Housing made of lightweight, robust special aluminium construction – lacquered, silver-grey. Black, non-slip rubber handgrips. Models 8301-04 to 8301-40: EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications. Audio-visual signal is standard on models 8303-40 to 8305-20 Scope of delivery:. Dial-measuring torque wrench type 83. Battery (models 8303-40 to 8305-20). Test certificate acc. to DIN EN ISO 6789. Delivered in a sturdy black plastic box (no. 8301-04 to 8302-20), otherwise in sturdy cardboard packaging (no. 8303-40 to 8305-20).

• Length (L, L1):- 515 mm
• Height:- 86 mm
• Drive Connector Square (Male):- 1/2 inch
• Scale Divisions:- 5 N·m / 5 lbf·ft
• Range of Work / Measurement Nm (min/max):- 40-200 N·m
• Range of Work / Measurement lbf.ft (Min/Max):- 30-160 lbf·ft
• Packing Unit:- 1 Piece
• Weight:- 1.4 kg
• Drive Connector Square (Male) Nominal Size:- 12,5 mm
