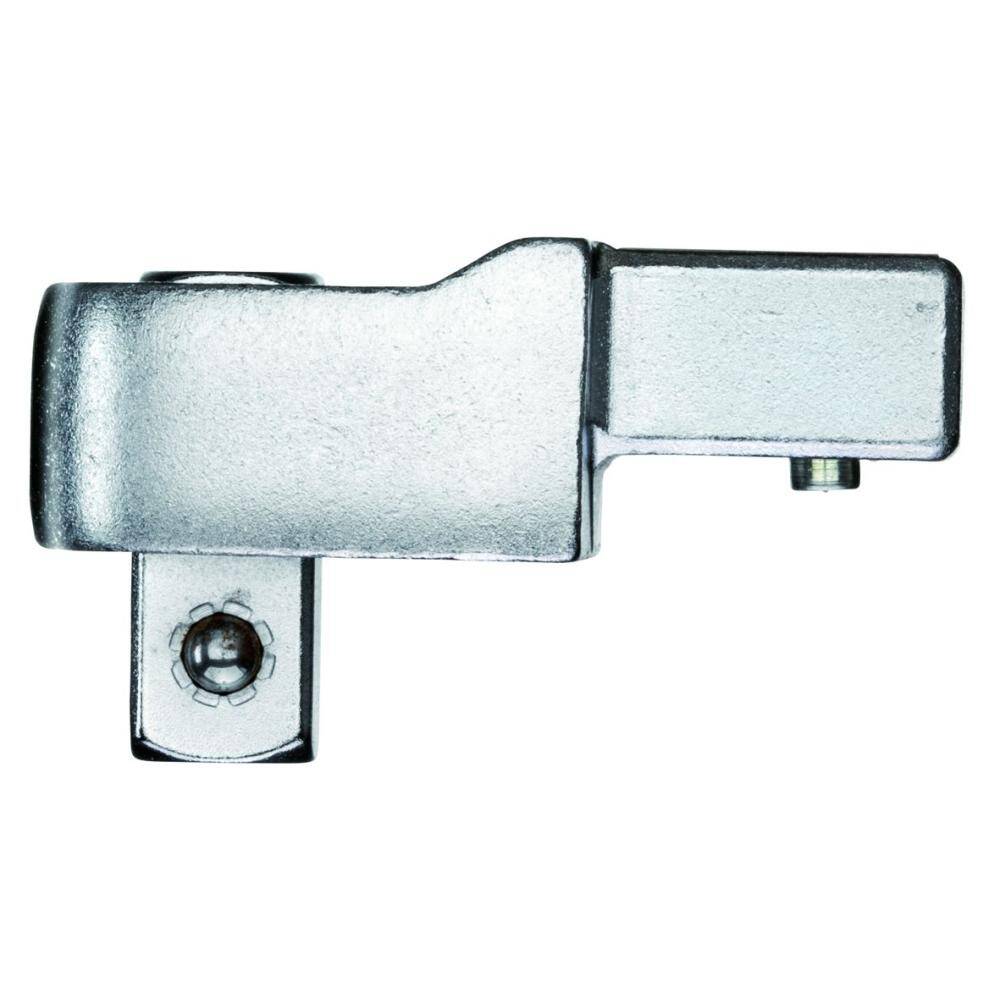

Gedore 7688040 (Series 7618-02) Rectangular fixed square head 1/2″ SE 14×18

Description

For accessing bolts in cramped and hard-to-reach locations, easy to change. Forged. Chrome-vanadium steel, matt chrome-plated. With eject pin for unlocking. Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity.

• Width of Head (b2):- 27 mm
• Drive Connector Square (Male):- 1/2 inch
• Height of Head (a2):- 18 mm
• Drive Connector Rectangular:- 14 x 18 mm
• Depth Gauge (C, L):- 25 mm
• Packing Unit:- 1 Piece
• Weight:- 0.2 kg
• Drive Connector Square (Male) Nominal Size:- 12,5 mm
• Continuous Load:- 1/2″ = 340 N·m
