Description

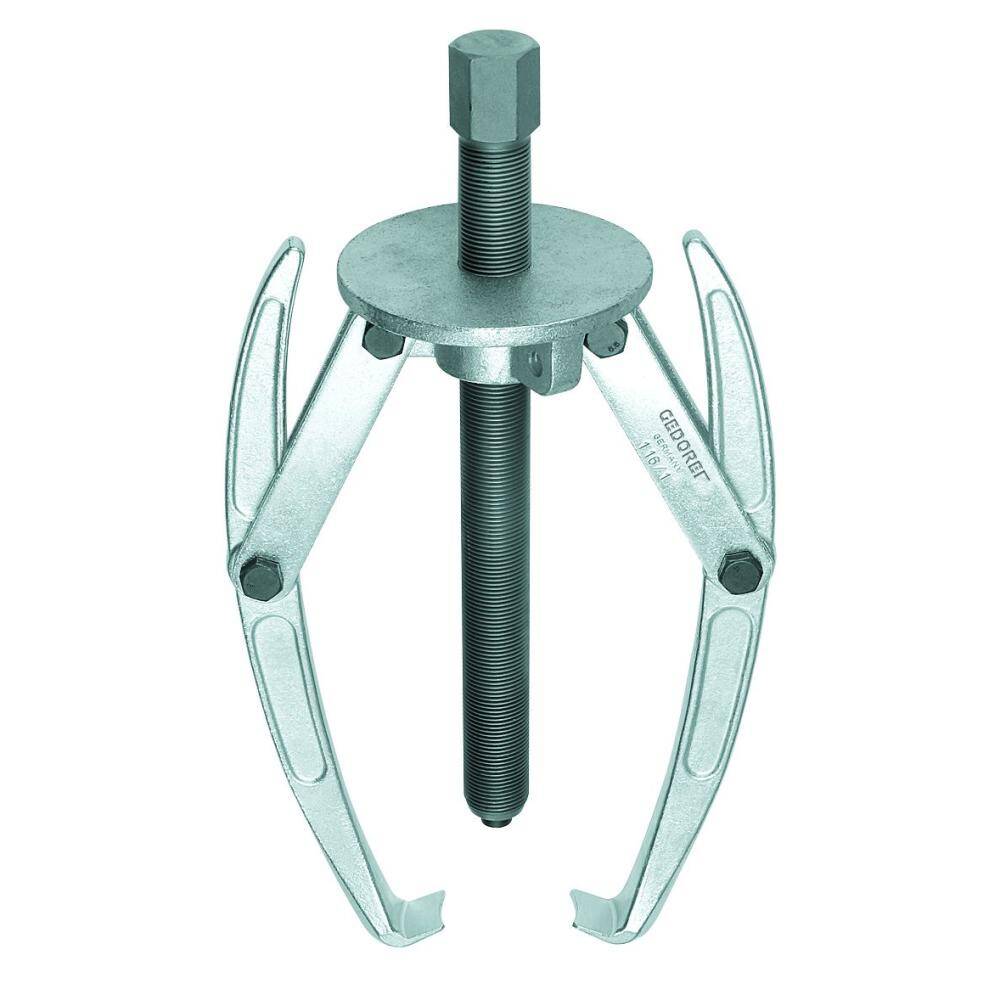

Very strong. Made for industrial applications and for use on heavy agricultural and construction machines. The legs grip automatically. Upgradeable with hydraulic spindle (see table). Can be extended to 3 arms by additionally buying a large hook no. 116.
- Width Across Flat / Actuating Hexagon:- 36 mm
- Clamping Spread – max – External Pulling (a, a1):- 450 mm
- Spindle Size (Thread x Length):- G 1 x 500
- Width of Hooked Foot :- 32 mm
- Depth of Hooked Foot (d):- 22 mm
- Thickness of Hooked Foot at tip:- 3,0mm
- Loading Max T:- 8,0 t
- Packing Unit:- 1 Piece
- Weight:- 10 kg
- Hyraulic Spindle Optional:- 1.06/HSP3
- Clamping Reach:- 420 mm
