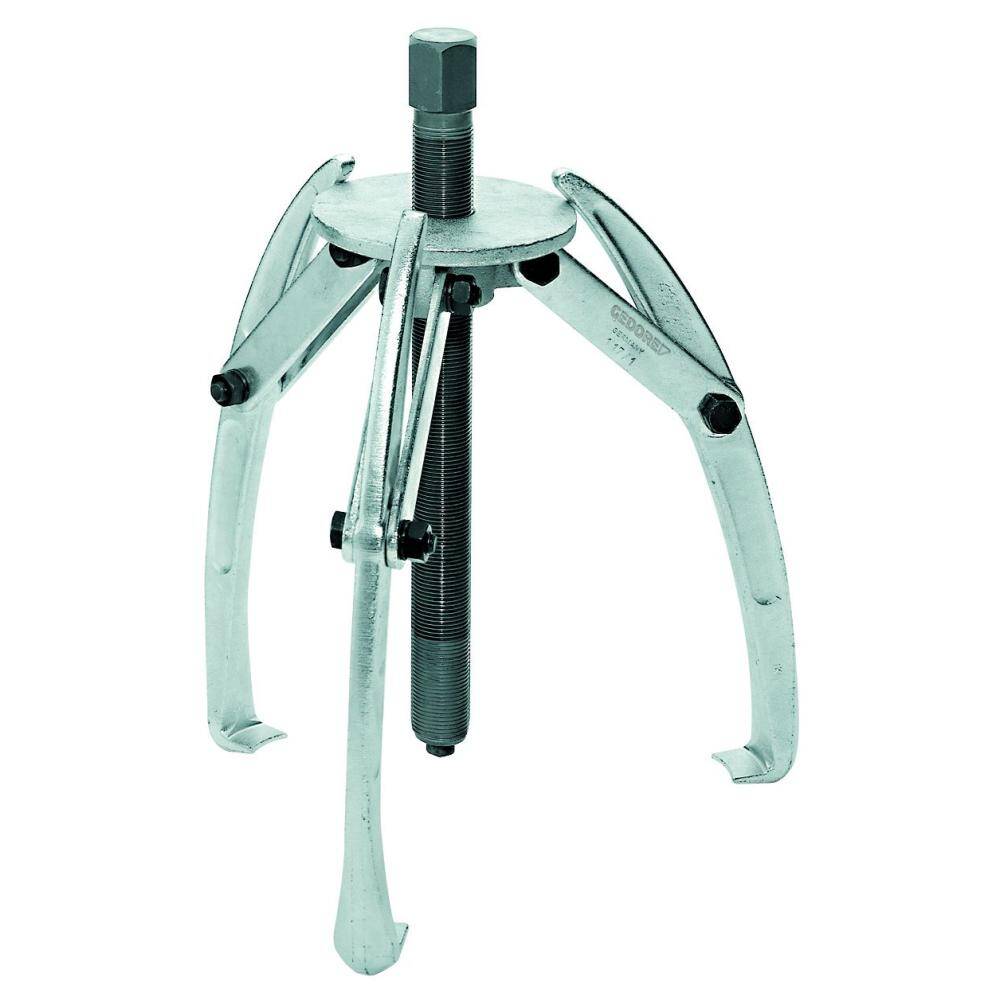

Gedore 8007320 (Series 1.17/1) Puller 3-arm pattern 300×300 mm

Description

Very strong. Made for industrial applications and for use on heavy agricultural and construction machines. The legs grip automatically. Upgradeable with hydraulic spindle (see table). For the assembly of a 2- or 3-arm puller.

• Width Across Flat / Actuating Hexagon:- 36 mm
• Clamping Spread – max – External Pulling (a, a1):- 300 mm
• Spindle Size (Thread x Length):- G 1 x 360
• Width of Hooked Foot :- 32 mm
• Depth of Hooked Foot (d):- 19 mm
• Thickness of Hooked Foot at tip:- 3,0mm
• Loading Max T:- 12,0 t
• Packing Unit:- 1 Piece
• Weight:- 10.5 kg
• Hyraulic Spindle Optional:- 1.06/HSP3
• Clamping Reach:- 300 mm
