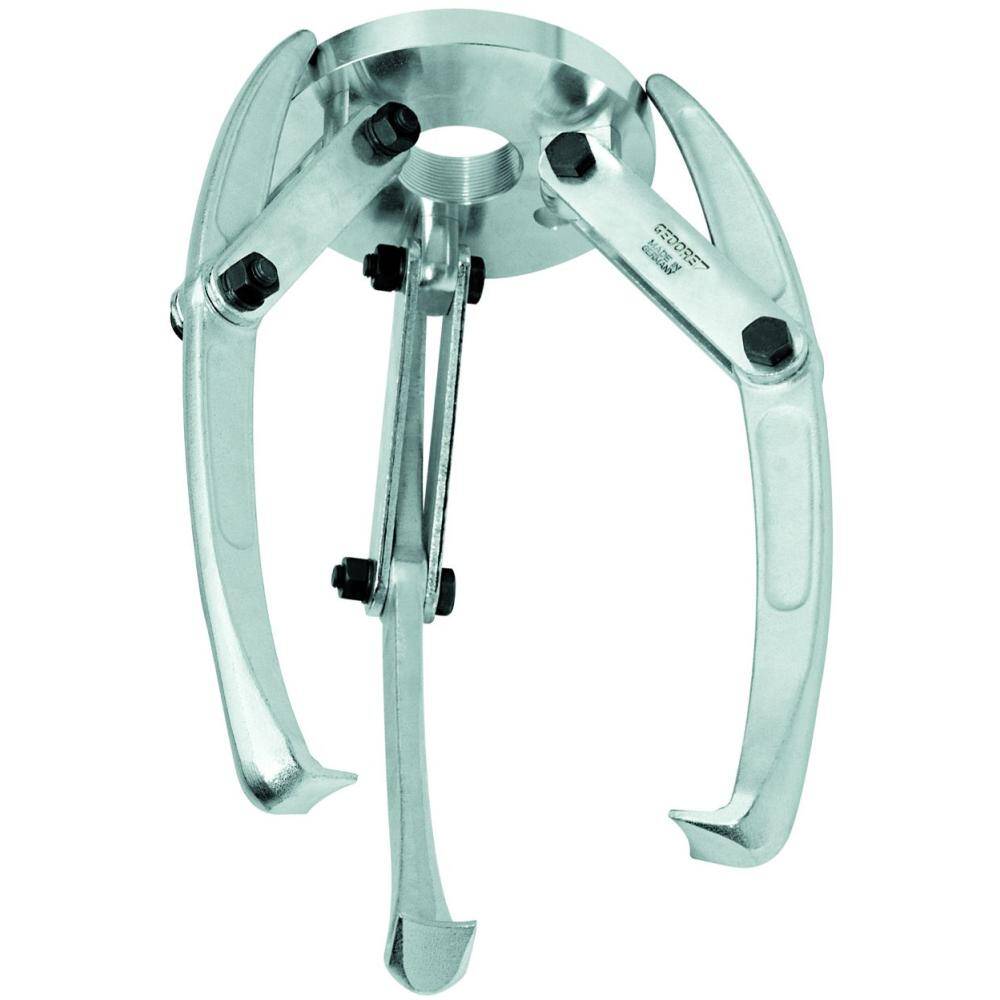

Gedore 8007590 (Series 1.17/10) Puller for hydraulic implement 1.50, 300×300 mm

Description

Heavy-duty pattern for the removal of gear wheels, spoked wheels, pulleys, etc. The legs grip automatically. For the assembly of a 2- or 3-arm puller.

• Clamping Spread – max – External Pulling (a, a1):- 300 mm
• Width of Hooked Foot :- 36 mm
• Depth of Hooked Foot (d):- 19 mm
• Thickness of Hooked Foot at tip:- 3,5mm
• Loading Max T:- 12 t
• Packing Unit:- 1 Piece
• Weight:- 9.1 kg
• Clamping Reach:- 300 mm
