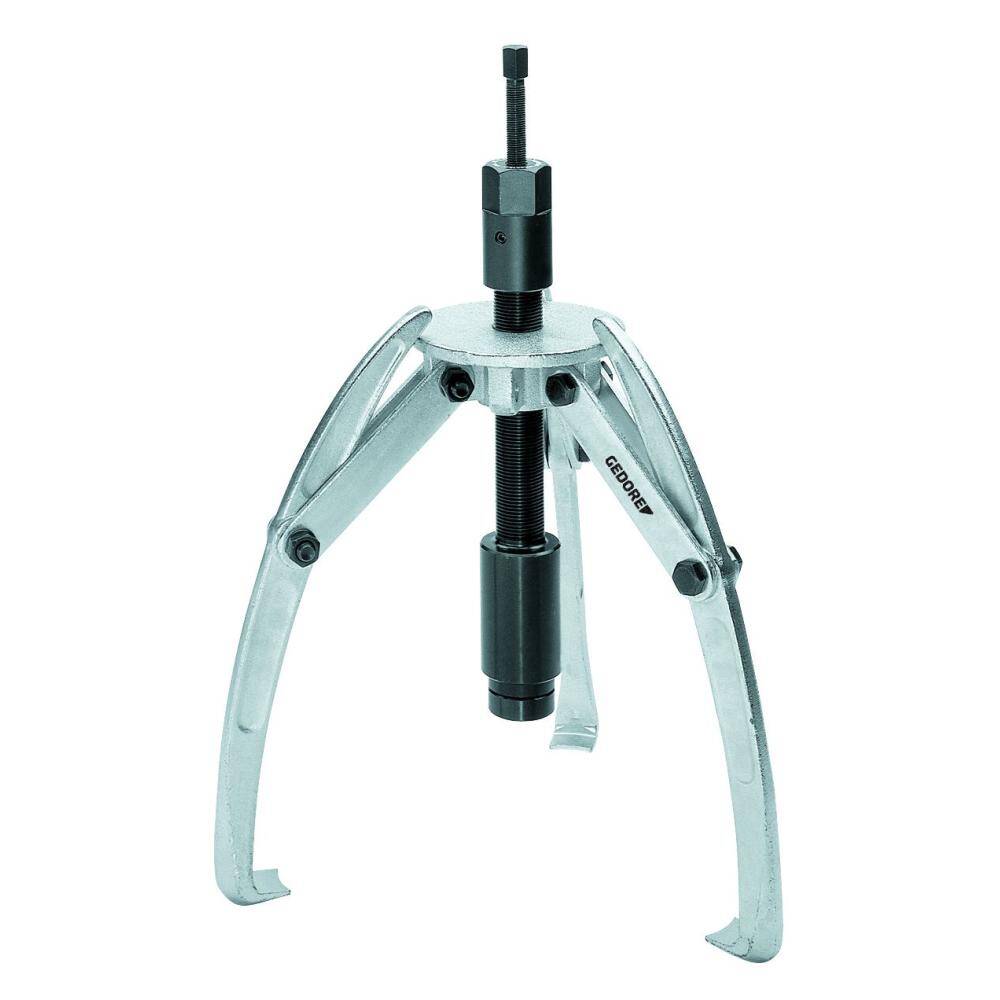

Gedore 8014370 (Series 1.17/2-HSP3) Puller hydraulic 3-arm pattern 450×310 mm

Description

Very strong. Made for industrial applications and for use on heavy agricultural and construction machines. The legs grip automatically. With the hydraulic spindle, a controlled and safe pulling action is possible at all times. Also available with standard spindle – Model 1.17.

• Width Across Flat / Actuating Hexagon:- 41 mm
• Clamping Spread – max – External Pulling (a, a1):- 450 mm
• Width of Hooked Foot :- 32 mm
• Depth of Hooked Foot (d):- 22 mm
• Thickness of Hooked Foot at tip:- 3,0mm
• Loading Max T:- 12,0 t
• Packing Unit:- 1 Piece
• Hydraulic Spindle:- 1.06/HSP3
• Loading Max Nm:- 29 N·m
• Weight:- 12.6 kg
• Clamping Reach:- 295 mm
