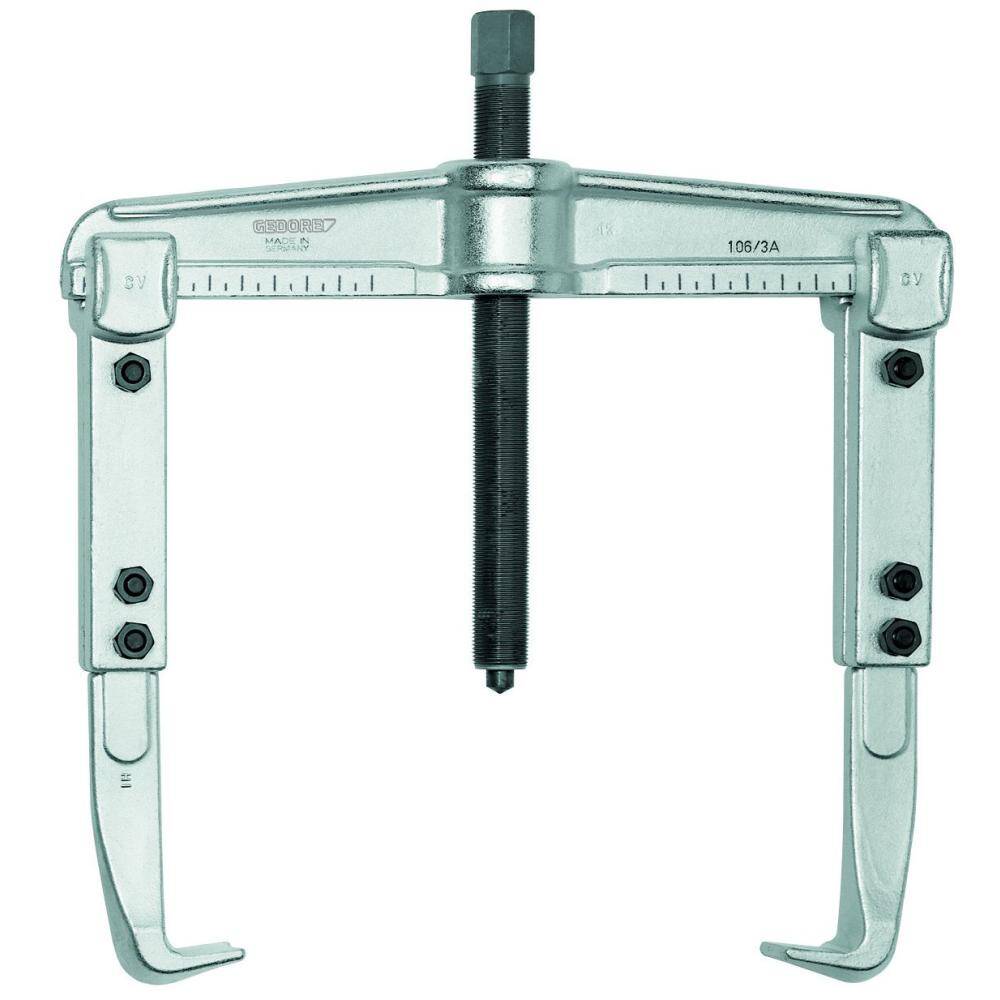

Gedore 8108780 (Series 1.06/2A-3) Universal puller, 2-arm pattern 200×300 mm

£206.75 inc VAT

  • Width Across Flat / Actuating Hexagon:- 22 mm
  • Clamping Spread – max – External Pulling (a, a1):- 200 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 90 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 260 mm
  • Spindle Size (Thread x Length):- G 1/2 x 210
  • Width of Hooked Foot :- 30 mm
  • Depth of Hooked Foot (d):- 18 mm
  • Thickness of Hooked Foot at tip:- 3,5mm
  • Loading Max T:- 5,0 t
  • Scale Divisions:- x
  • Packing Unit:- 1 Piece
  • Weight:- 4.5 kg
  • Hyraulic Spindle Optional:- 1.06/HSP1
  • Clamping Reach:- 300 mm

Usually despatched from Germany

SKU: HYDBA8108780 Category:

Description

Strong drop forged design. Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required. Extended legs. By reversing the legs, this tool can be used as an internal or external puller. Extra or replacement legs increase versatility. Upgradeable with hydraulic spindle (see table).

  • Width Across Flat / Actuating Hexagon:- 22 mm
  • Clamping Spread – max – External Pulling (a, a1):- 200 mm
  • Clamping Spread – Min – Internal Pulling (a2):- 90 mm
  • Clamping Spread – Max – Internal Pulling (a2):- 260 mm
  • Spindle Size (Thread x Length):- G 1/2 x 210
  • Width of Hooked Foot :- 30 mm
  • Depth of Hooked Foot (d):- 18 mm
  • Thickness of Hooked Foot at tip:- 3,5mm
  • Loading Max T:- 5,0 t
  • Scale Divisions:- x
  • Packing Unit:- 1 Piece
  • Weight:- 4.5 kg
  • Hyraulic Spindle Optional:- 1.06/HSP1
  • Clamping Reach:- 300 mm
