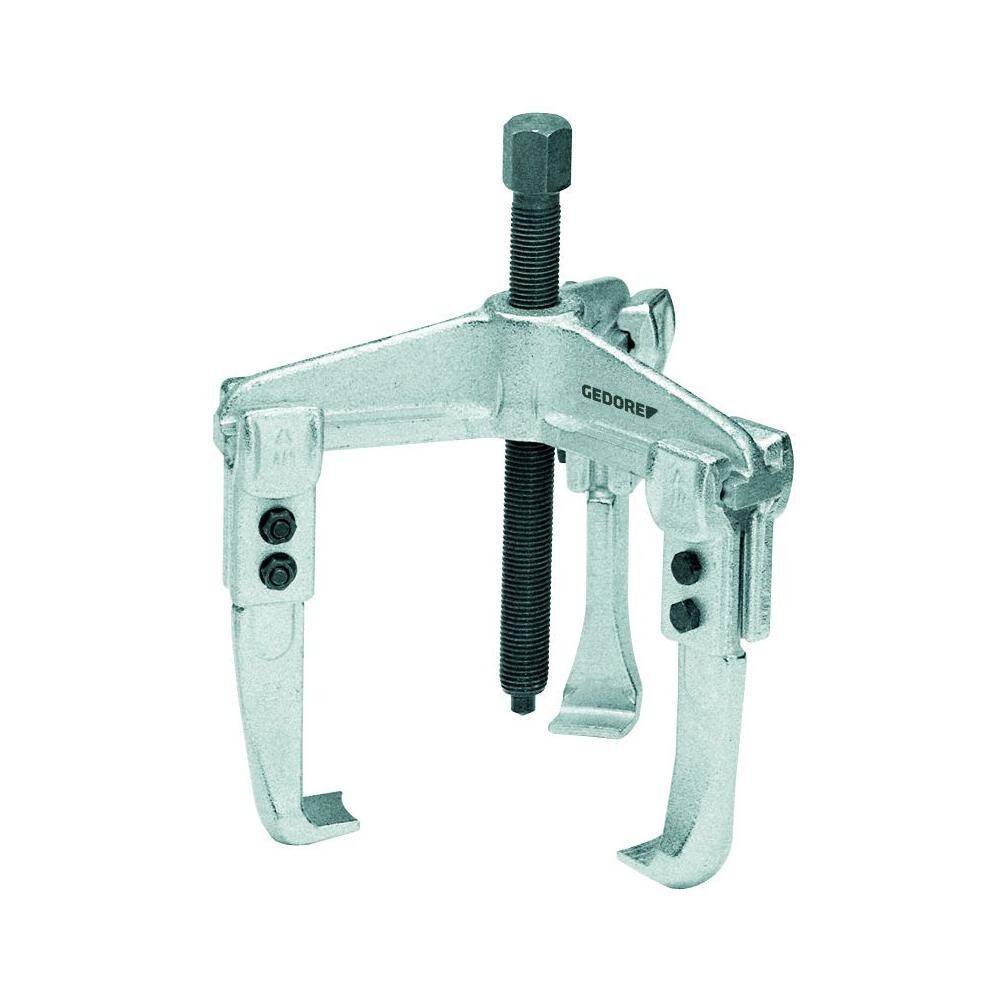

Gedore 8113940 (Series 1.07/1) Universal puller, 3-arm pattern 90×100 mm

Description

Even load distribution over 3 legs ensures secure grip and balanced pull. By reversing the legs, this tool can be used as an internal or external puller. Extra or replacement legs increase versatility. Upgradeable with hydraulic spindle (see table).

• Width Across Flat / Actuating Hexagon:- 17 mm
• Clamping Spread – max – External Pulling (a, a1):- 90 mm
• Clamping Spread – Min – Internal Pulling (a2):- 70 mm
• Clamping Spread – Max – Internal Pulling (a2):- 140 mm
• Spindle Size (Thread x Length):- M 14×1,5 x 140
• Width of Hooked Foot :- 22 mm
• Depth of Hooked Foot (d):- 12 mm
• Thickness of Hooked Foot at tip:- 3,0mm
• Loading Max T:- 3,0 t
• Packing Unit:- 1 Piece
• Weight:- 1.4 kg
• Clamping Reach:- 100 mm
