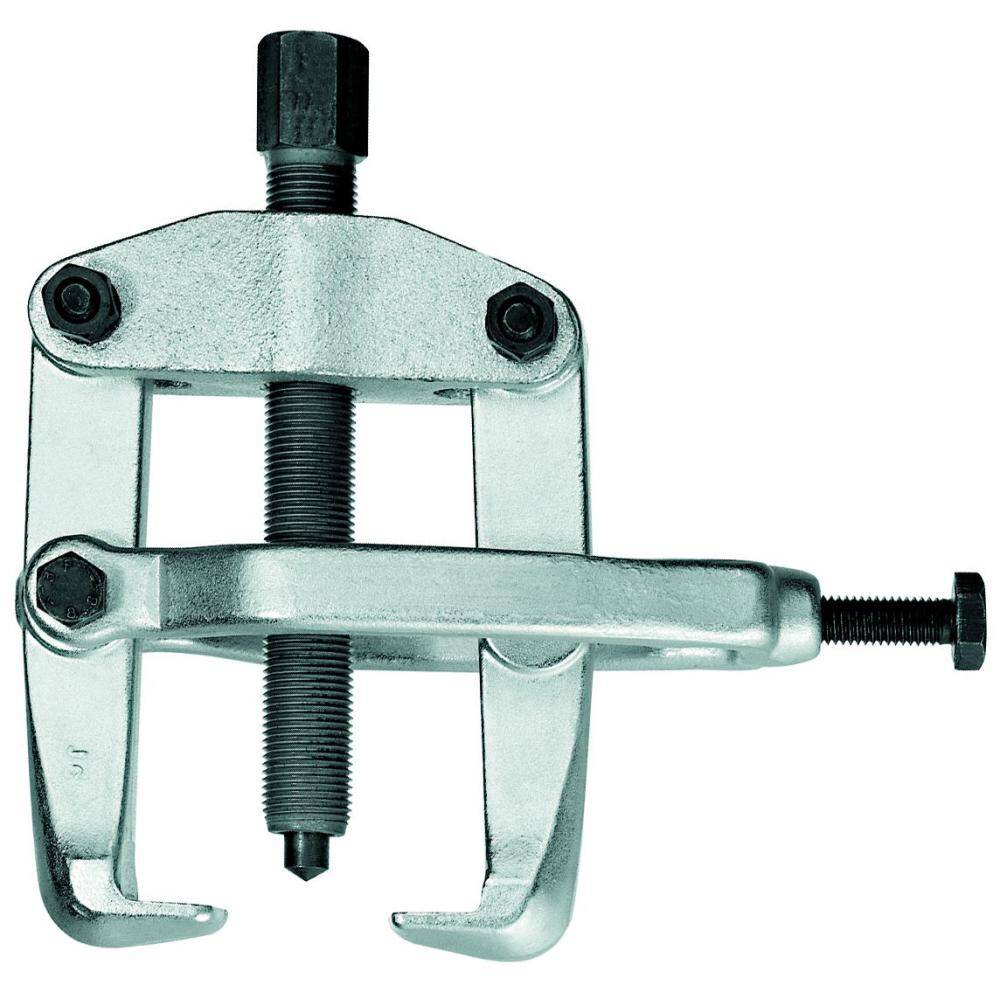

Gedore 8008050 (Series 1.20/1) Puller with clamping yoke 90×85 mm

Description

These pullers are mainly employed for removing car and truck steering arms. The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position.

• Width Across Flat / Actuating Hexagon:- 19 mm
• Clamping Spread – max – External Pulling (a, a1):- 90 mm
• Spindle Size (Thread x Length):- M 18×1,5 x 130
• Width of Hooked Foot :- 22 mm
• Depth of Hooked Foot (d):- 12 mm
• Thickness of Hooked Foot at tip:- 3,0mm
• Loading Max T:- 5,0 t
• Packing Unit:- 1 Piece
• Weight:- 1.6 kg
• Clamping Reach:- 85 mm
