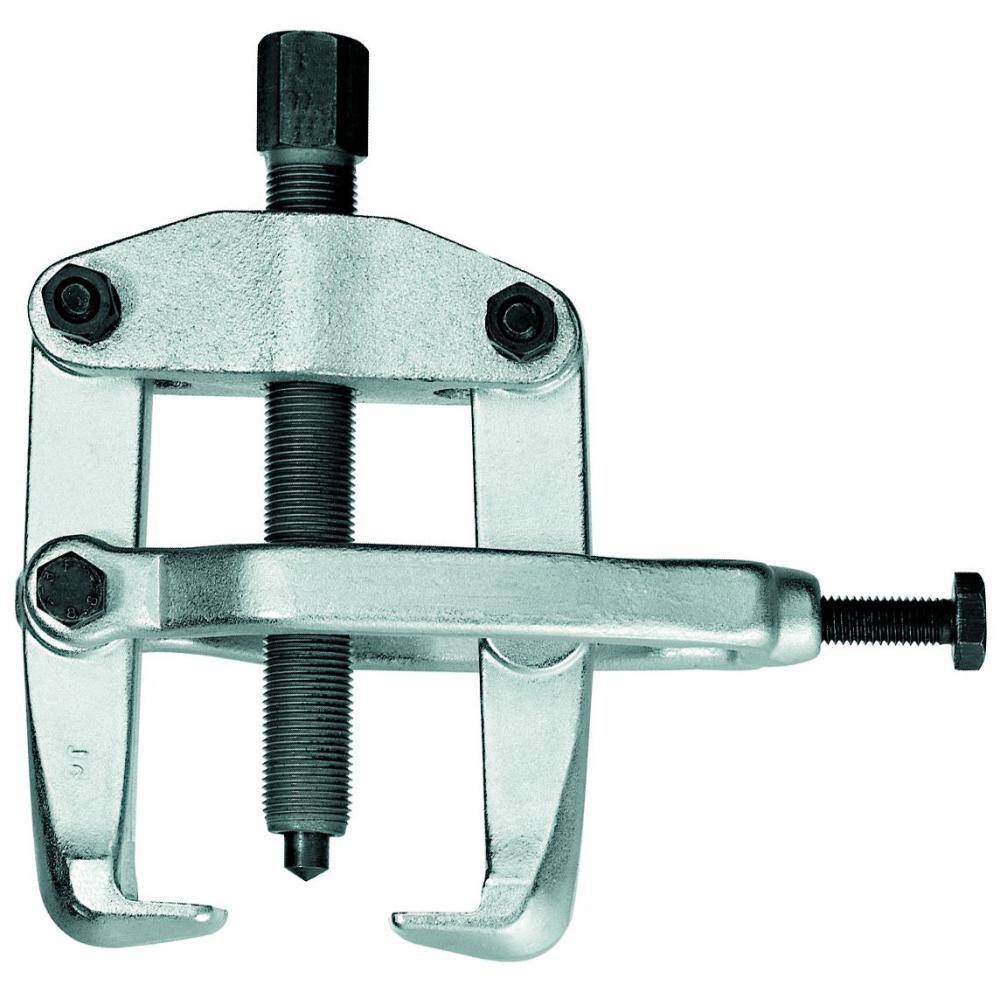

Gedore 8008210 (Series 1.20/3) Puller with clamping yoke 150×140 mm

Description

These pullers are mainly employed for removing car and truck steering arms. The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position.

• Width Across Flat / Actuating Hexagon:- 22 mm
• Clamping Spread – max – External Pulling (a, a1):- 150 mm
• Spindle Size (Thread x Length):- G 1/2 x 175
• Width of Hooked Foot :- 30 mm
• Depth of Hooked Foot (d):- 18 mm
• Thickness of Hooked Foot at tip:- 3,5mm
• Loading Max T:- 7,5 t
• Packing Unit:- 1 Piece
• Weight:- 3.4 kg
• Hyraulic Spindle Optional:- 1.06/HSP1
• Clamping Reach:- 140 mm
