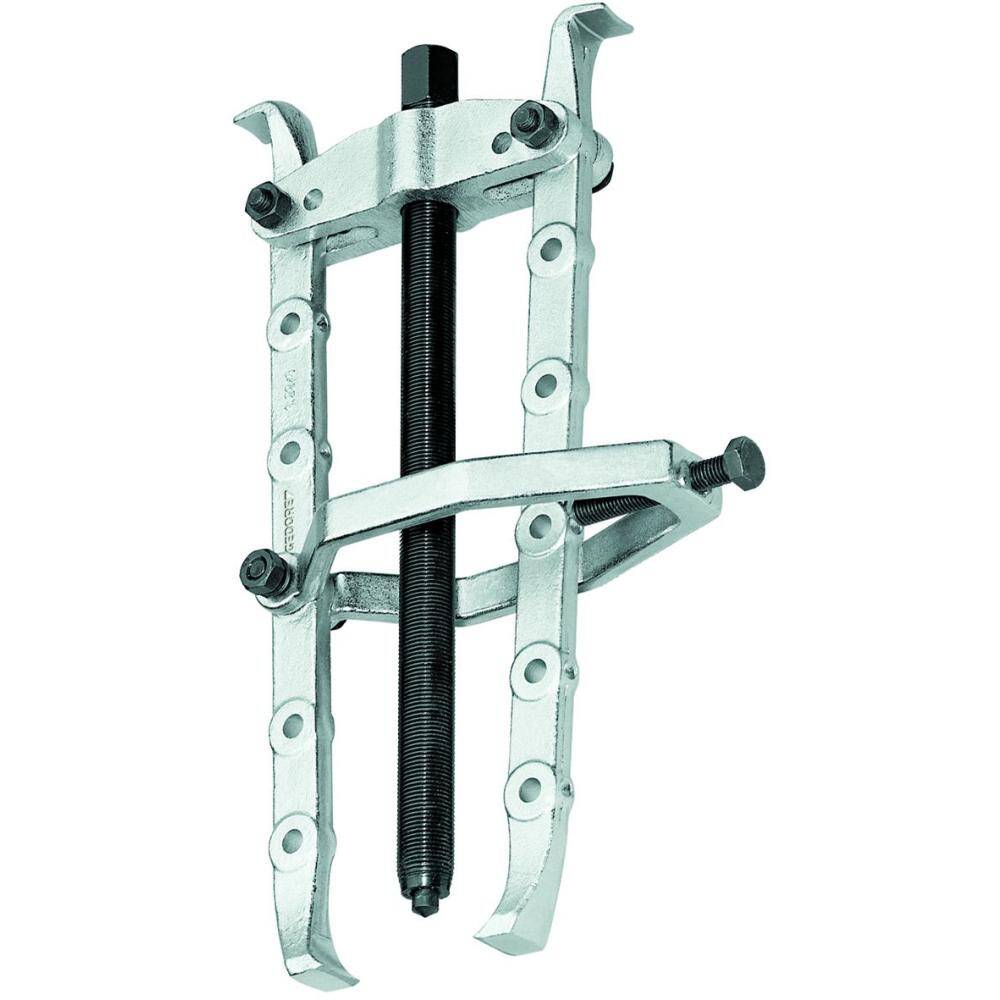

Gedore 8009100 (Series 1.22/2) Puller with clamping yoke 160×260 mm

Description

Double-ended hooks. Particularly suitable for separating and removing flush-seated parts. Especially economical as it covers a range of different sizes.

• Width Across Flat / Actuating Hexagon:- 22 mm
• Clamping Spread – max – External Pulling (a, a1):- 160 mm
• Spindle Size (Thread x Length):- G 1/2 x 350
• Width of Hooked Foot :- 25 mm
• Depth of Hooked Foot (d):- 14 mm
• Thickness of Hooked Foot at tip:- 3,5mm
• Loading Max T:- 7,5 t
• Packing Unit:- 1 Piece
• Weight:- 4.4 kg
• Hyraulic Spindle Optional:- 1.06/HSP1
• Clamping Reach:- 260 mm
